Machine Operation
Top View Of Control box
R.H. point row
clutch switch
Control Box
L.H. point row
clutch switch
Reduced
rate switch

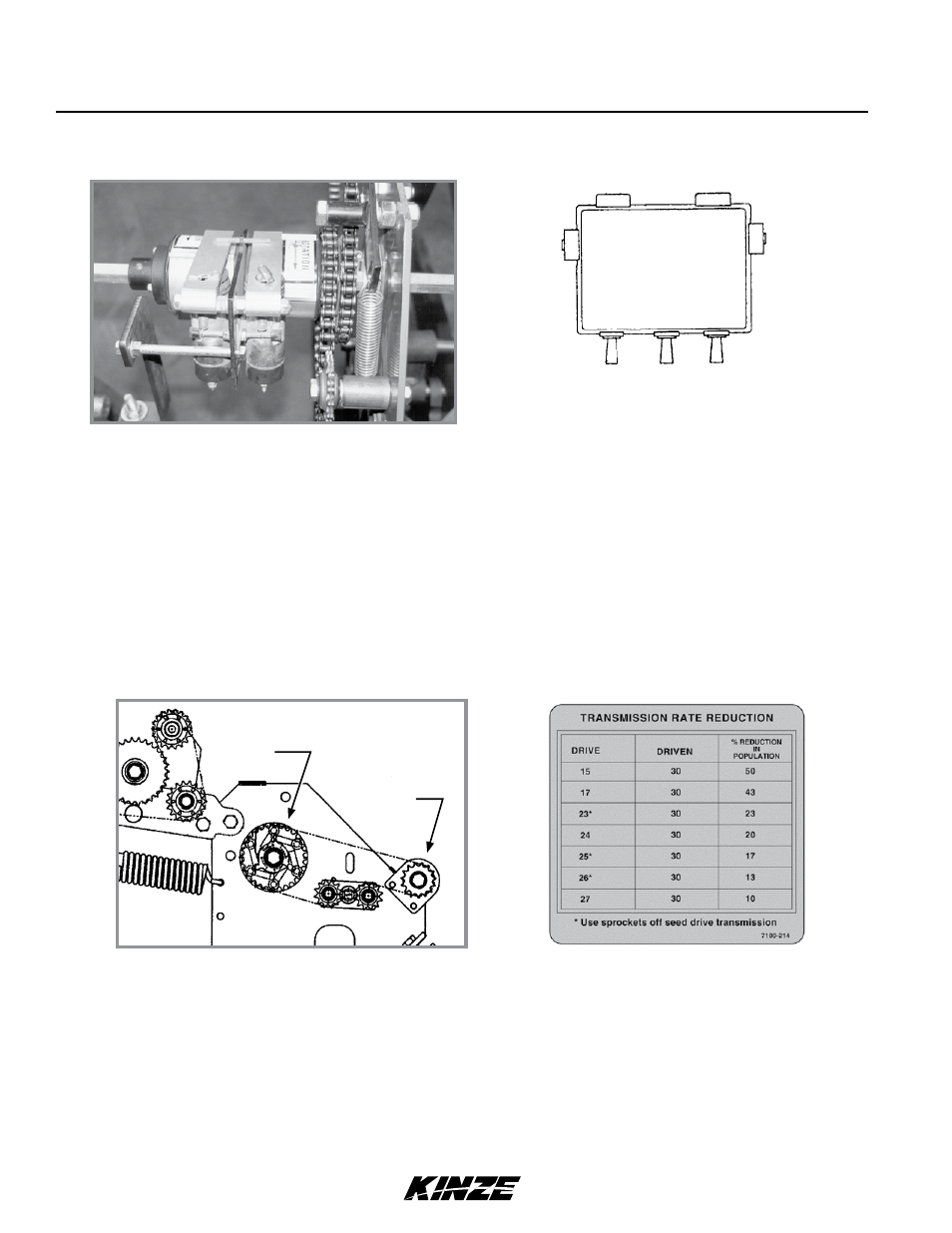

TWO-SPEED POINT ROW CLUTCHES
Two-speed point row clutch (front view)
Optional Two-Speed Point Row Clutch Package allows on-the-go population rate adjustment and capability to shut off
either half of planter for finishing up fields or for long point row situations.
Point row clutches are controlled by control console point row clutch switches. The point row switch is used to shut
off either the left or right half of the planter. Activating the reduced rate switch engages one solenoid on each clutch
assembly and reduces the planting rate for the entire planter.
NOTICE
Point row switch must be OFF and rate switch left in FULL RATE
when planter is not in use or tractor battery will be drained.
Ratio of population reduction is determined by
sprocket ratio between wheel module drive and
driven sprockets.
Drive
sprocket
Driven
sprocket
A rate reduction decal is located
on wheel module.
NOTE: Liquid fertilizer piston pump has its own drive wheel and is not affected by point row
clutch.
