KPM III Monitor Operation

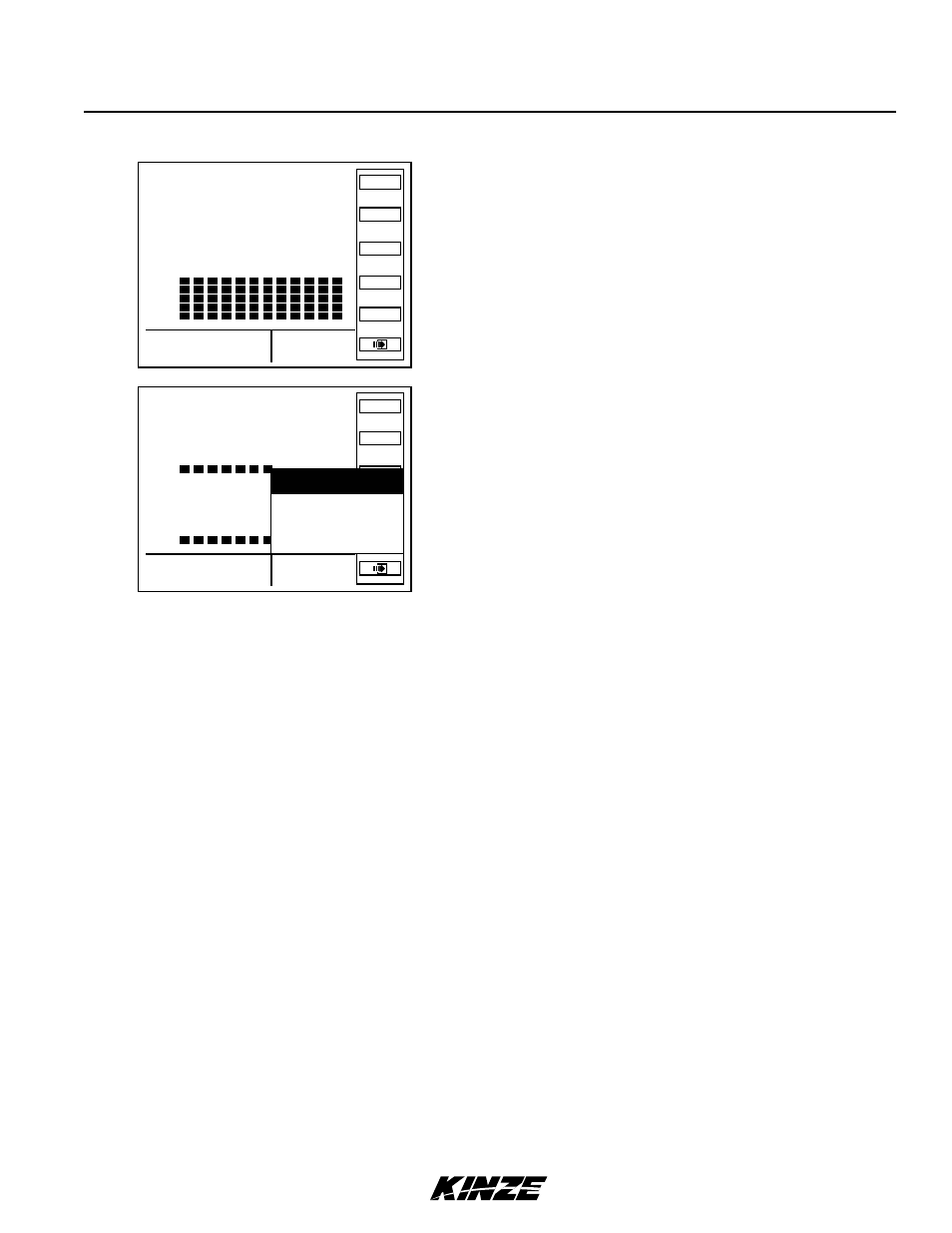

• Press F5 key next to Other for items available to display in
bottom R.H. corner. Turn knob or use arrow keys to highlight
“Shaft RPM”. Value appears in bottom R.H. corner of display as
“RPM”.
NOTE: Applies to planters with shaft rotation sensors
installed.
• Press F5 key next to “Other” for items available to display in
bottom R.H. corner. Turn knob or use arrow keys to select
“Ground Speed”. Value appears in bottom R.H. corner of display
as “MPH” or “Km Per Hr”.
NOTE: Selected units of measure display as (English or
Metric).
• Press F5 key next to “Other” for items available to display in
bottom R.H. corner. Turn knob or use arrows keys to advance to
“Battery” to view battery condition. Value appears in bottom R.H.
corner of display as “Bat V”.
• Press F5 key next to “Other” for items available to display in bottom
R.H. corner. Turn knob or use arrows keys to advance to “Vacuum”
to view vacuum. Inches of vacuum appears in bottom R.H. corner
of display as “VAC”.
• Press F5 key next to “Other” for items available to display in the
bottom R.H. corner. Turn knob or use arrows keys to advance
to “Seed Delivery Shaft RPM” to view shaft RPM. Shaft RPM
appears in bottom R.H. corner of display as “RPM SDS”.
• Press F5 key next to “Other” for items available to display in
bottom R.H. corner. Turn knob or use arrows keys to advance
to “Downpressure” to view lbs. of down pressure. Lbs. of down
pressure appears in bottom R.H. corner of the display as “LBS”.
