Machine Operation
The following information is general in nature and was written to aid the operator in preparation of the tractor and
planter for use, and to provide general operating procedures. The operator’s experience, familiarity with the machine
and the following information should combine for efficient planter operation and good working habits.
NOTICE
Always raise planter out of ground when making sharp turns or
backing up or tractor and equipment may be damaged.
Kinze EdgeVac Seed Metering System includes seed meters, seed discs and an air system consisting of a hydraulic
driven vacuum fan which draws air through the manifolds and hoses and the seed meters on each row unit.
WING SAFETy PINS
Secure wings with safety pins before transporting planter.
LIFT CyLINDER LOCKUPS
Install all lift cylinder lockups before transporting or working under or around planter.

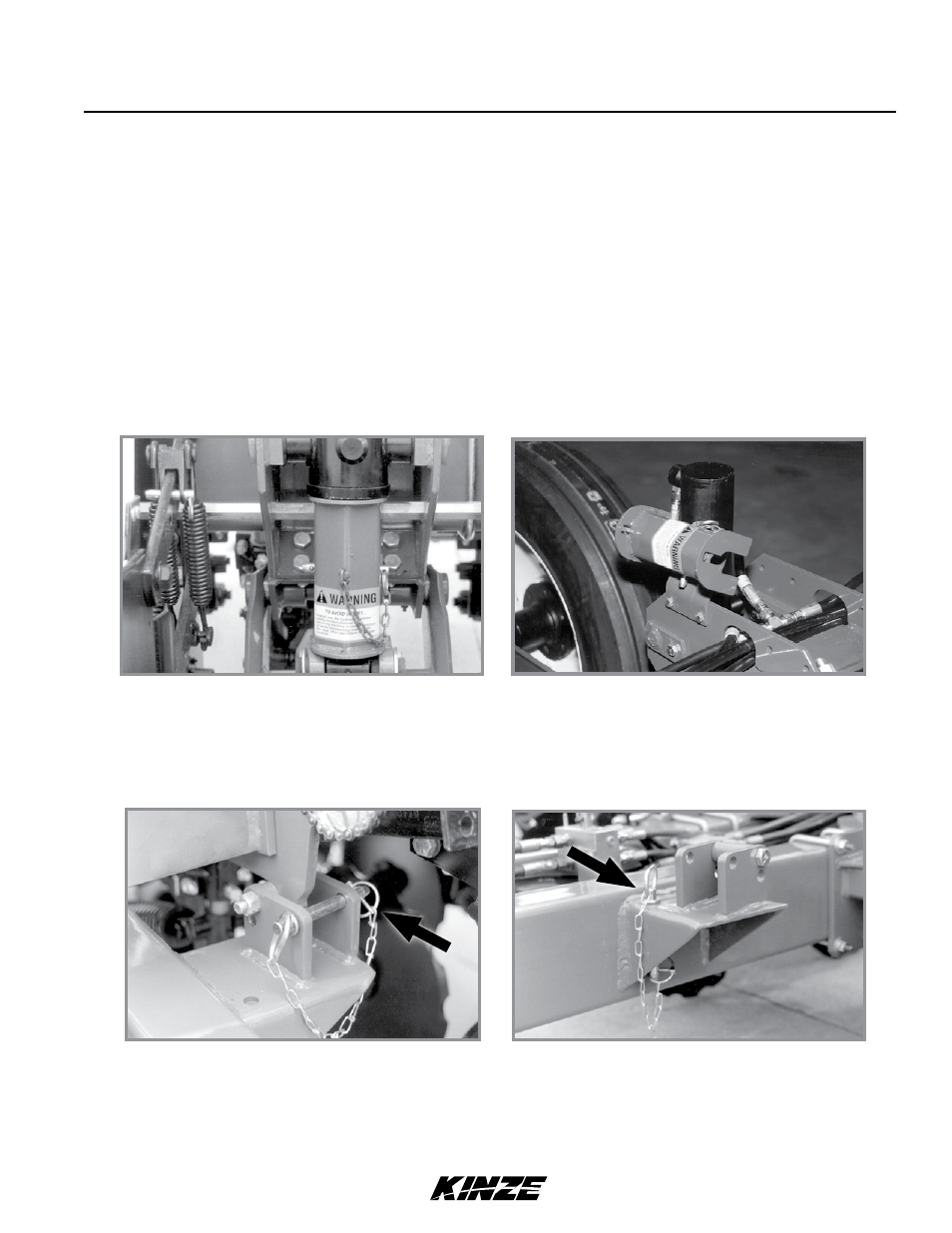

Lift cylinder lockup in transport position Lift cylinder lockup in storage position
Wing safety pin in transport position Wing safety pin in storage position
