Kinze 3200 Wing-Fold Planter Rev. 7/14 - Manual (Page 127)

TM
Model 3200 M0241-01
Rev. 7/12 6-37

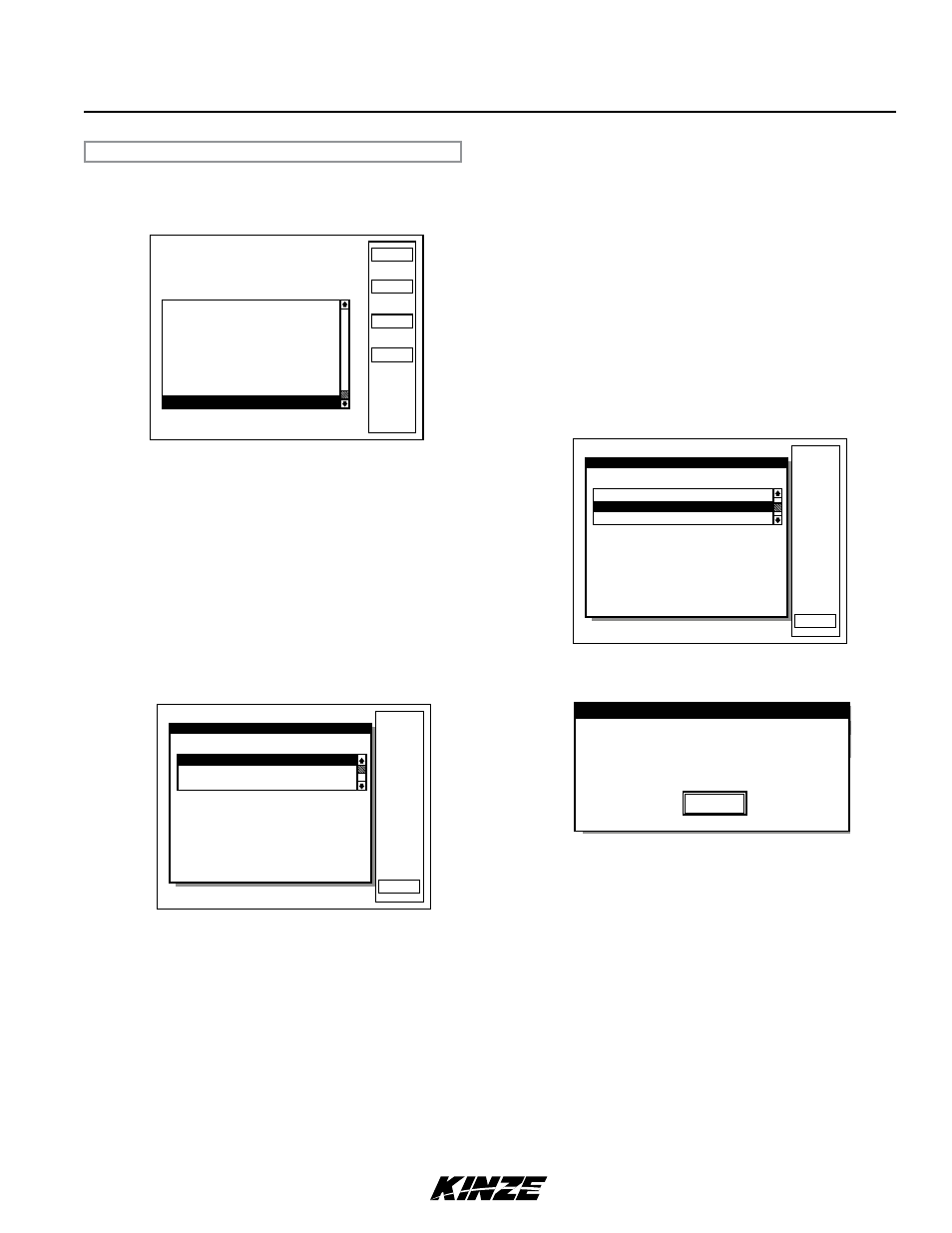

KPM III Monitor Operation
SPEED SENSOR CALIbRATION/PROGRAMMING
STEP 1 Turn knob or use arrow keys to highlight ‘’10. Calibrate
Speed Sensor” and press knob or Enter key.
Distance Pulse Count records how many pulses are
generated per mile/kilometer from the ground speed
sensor.
NOTE: A field calibration must be performed to establish
Distance Pulse Count number. Several factors can affect this
value, such as wheel slip on the magnetic distance sensor.
IT IS NOT UNCOMMON FOR MONITOR SPEED TO VARy
SLIGHTLy FROM TRACTOR SPEEDOMETER. Adjusting
Distance Pulse Count in the monitor to make speed agree
with tractor can cause serious errors in acre/hectare and
population/spacing readings. Do field checks to verify
populations and seed spacing.
Status
Plant
About
Setup Mode
Configuration:
Effective row spacing: 15.0
Front / Rear
1. General Settings
2. Seed Meter Settings
3. Row Unit Alarm Levels
4. Setup Data Logging
5. Configure Planter Monitor
6. Add New Muxbus Sensors
7. Add Single Interplant Row
8. Select Speed Sensor
9. Sensor Setup
Logdata
10.Calibrate Speed Sensor
Done
1. Tractor stopped, Start calibration
2. Tractor stopped, Calibration Done
3. Change Disance Pulse Count
Distance Pulse Count: 185000
English: Drive exactly 330 feet.
Metric: Drive exactly 100 metres.
Calibrate Speed Sensor
Execute step 1 and 2
Effective row spacing: 15.0
• In field conditions, measure 330 feet or 100 meters,
depending on the unit of measurement selected. Place a
marker at the start point and end point.
• Pull tractor up to starting point.
•
Turn knob or use arrow keys to highlight “1. Tractor stopped,
Start calibration” and press knob or Enter key.
• Drive tractor for 330 feet or 100 meters.
• Monitor will count number of pulses and display them.
• Stop tractor at end point.
• Turn knob or use arrow keys to highlight “2. Tractor stopped,
Calibration Done” and press knob or Enter key.
NOTE: If warning box below appears, click OK and repeat
procedure.
NOTE: Repeat above steps multiple times. Record and
average values. Use average for Distance Pulse Count
number constant.
NOTE: Distance Pulse Count will vary from above example.
Done
1. Tractor stopped, Start calibration
2. Tractor stopped, Calibration Done
3. Change Disance Pulse Count
Distance Pulse Count: 185000
English: Drive exactly 330 feet.
Metric: Drive exactly 100 metres.
Calibrate Speed Sensor
Execute step 1 and 2
Effective row spacing: 15.0
Done
1. Tractor stopped, Start calibration
2. Tractor stopped, Calibration Done
3. Change Disance Pulse Count
Distance Pulse Count: 185000
English: Drive exactly 330 feet.
Metric: Drive exactly 100 metres.
Calibrate Speed Sensor
Execute step 1 and 2
Effective row spacing: 15.0
The speed sensor pulse count is too low.
Perhaps you did not drive far enough
If not, the sensor may be faulty.
Warning
OK
