Kinze 3200 Wing-Fold Planter Rev. 7/14 - Manual (Page 33)

TM
Model 3200 M0241-01
6/11 2-21
Machine Operation
Electric-activated clutches disengage drive on either half of planter for finishing up fields or for long point row
situations. Clutch selector switch is located on tractor.
NOTICE
Switch must be OFF when planter is not in use or tractor battery
will be drained.
NOTE: Liquid fertilizer piston pump has its own drive wheel and is not affected by point row
clutch.
Clutch consists of a wrap spring riding on an input and output hub. Wrap spring is wrapped tightly over hubs during
operation locking them together. Higher speeds create a tighter grip of spring on hubs.
Input end of spring is bent outward and is called the control tang. Control tang fits into a slot in stop collar located
between input and output hubs over wrap spring. If stop collar is allowed to rotate with input hub, clutch is engaged. If
stop collar is stopped from rotating, control tang connected to it is forced back and spring opens. This allows input hub
to continue rotating without transmitting torque to output hub, stopping planter drive.
Stop collar is controlled by an electric solenoid and an actuator arm. When selector switch on tractor control box is
OFF, solenoid coil is NOT ENERGIZED and actuator arm will not contact stop on stop collar, allowing it to rotate with
hubs and drive planter.
When operational switch is in “DISENGAGE” (right or left) solenoid coil IS ENERGIZED and plunger in solenoid coil
pulls actuator arm against stop on stop collar, disengaging wrap spring and stopping planter drive.

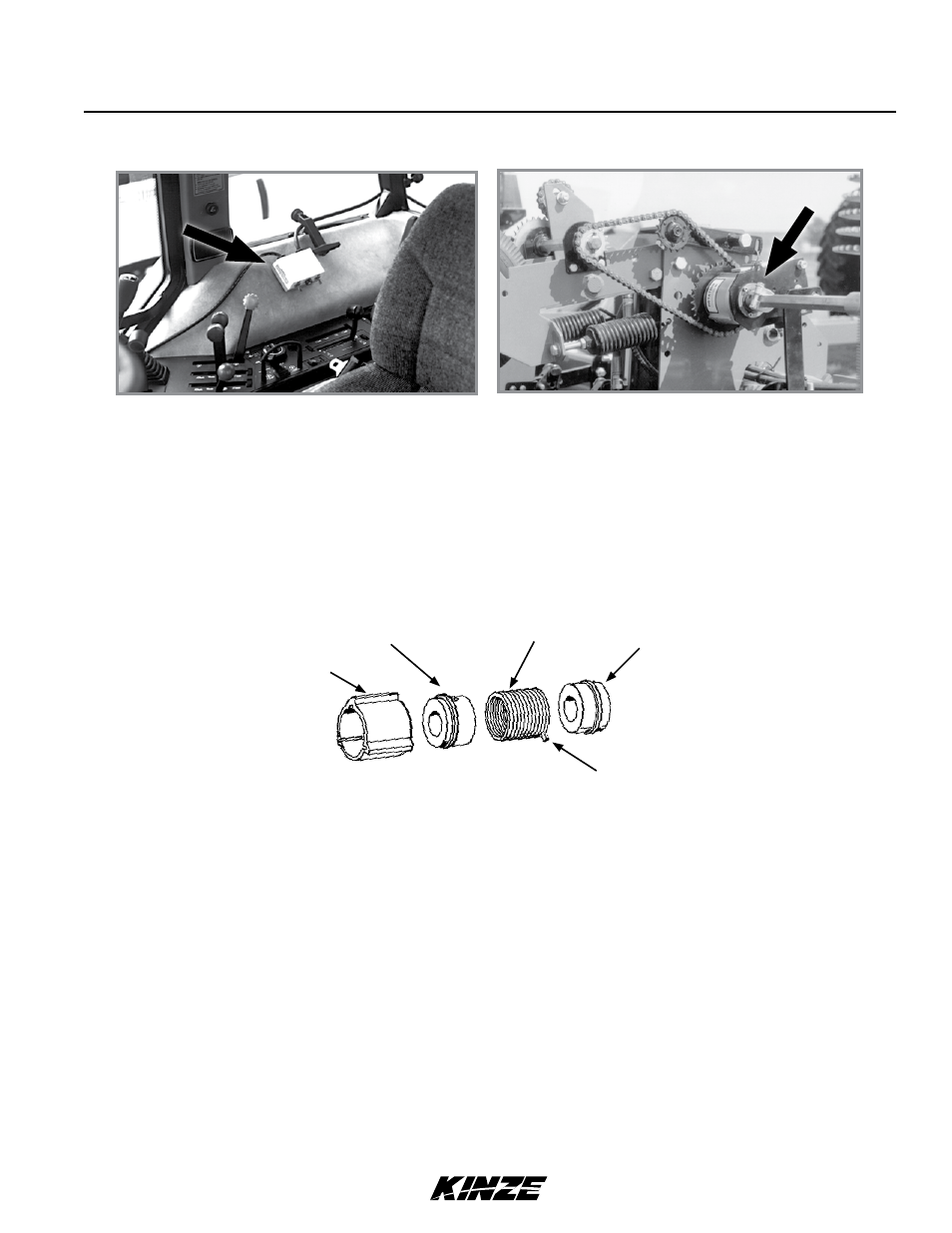

Point row clutch Point row clutch control box
POINT ROW CLUTCHES
Stop collar
Output hub
Wrap spring
Input hub
Control tang
