Model 3200 M0241-01
6/11 3-1

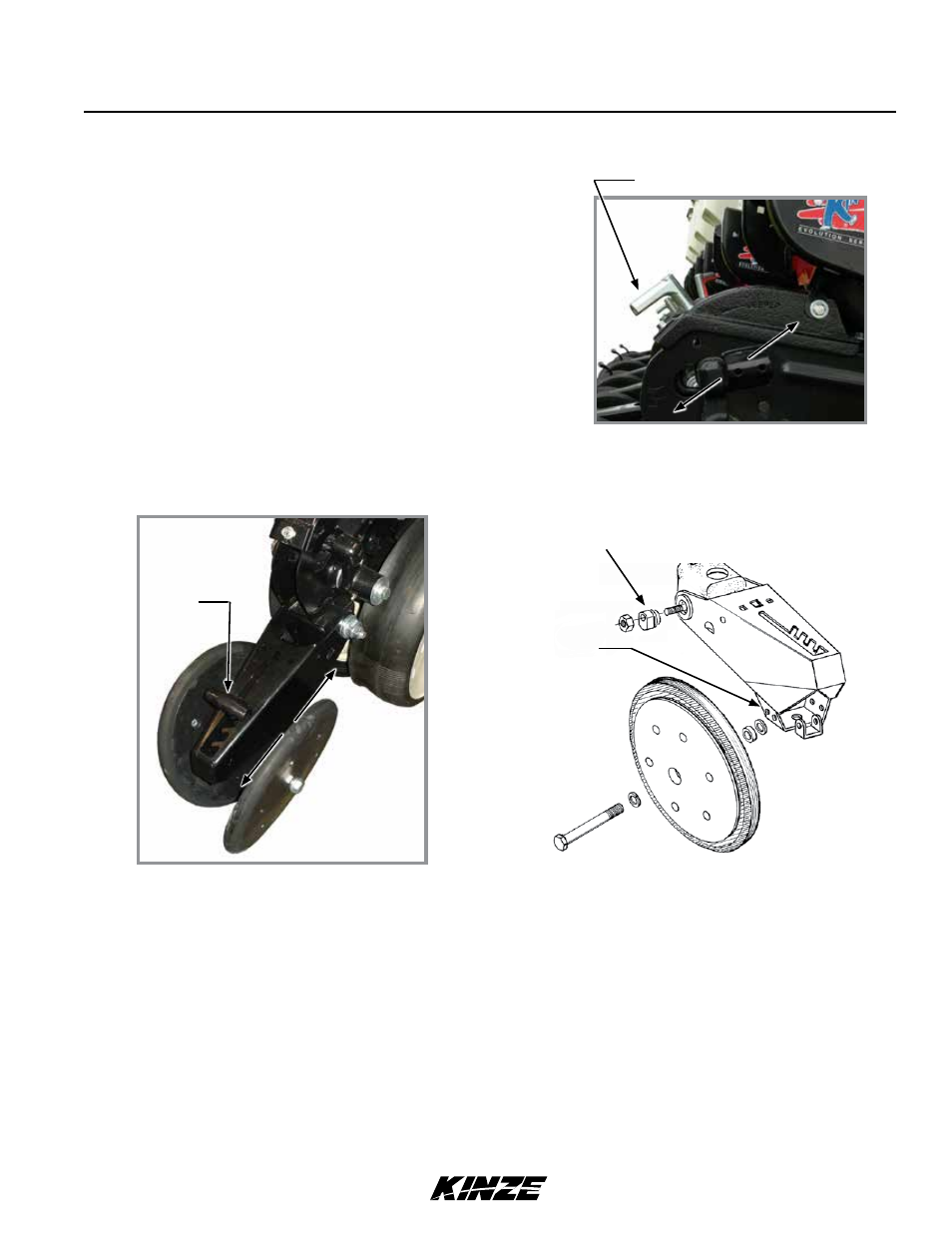

Row Unit Operation
Planting depth is maintained by adjustable row unit gauge wheels.
Depth adjustment range is approximately ½" to 3½".
1. Raise planter to remove weight from wheels.
2. Push down on depth adjustment handle and reposition it forward
to decrease or rearward to increase planting depth. Initially adjust
all units to the same setting.
3. Lower planter and check operation and planting depth of all row
units. Readjust individual rows as needed for uniform operation.
“V” closing wheels should have enough down pressure to close the seed trench and ensure good soil to seed contact.
Move 5-position quick adjustable down force lever on the top of closing wheel arm to the rear to increase closing
wheel spring pressure. Move lever forward to decrease pressure. Adjust all row units to a similar setting. Light soil
usually requires less down force at average depth (approximately 2") while heavy soil requires increased down force.
Eccentric bushings in the wheel arm stop allow for lateral adjustment of the “V” closing wheel assembly. Use a ¾"
wrench to loosen hardware attaching closing wheel arm to wheel arm stop. Use another ¾" wrench to turn eccentric
bushings until
closing wheels are aligned with seed trench. Tighten hardware.
Closing wheels can be installed “offset” (to improve residue flow) or “directly” opposite. Use forward installation holes If
set “directly” opposite.
Planting depth adjustment handle
Planting depth adjustment
Deeper Shallo
wer
PLANTING DEPTH
“V” CLOSING WHEEL ADJUSTMENT (RUbbER OR CAST IRON)
Increase Decrease
Lever
“V” Closing wheels installed offset
Eccentric bushing
Set closing wheels in
this hole for directly
opposite installation.
