KPM II Monitor Operation

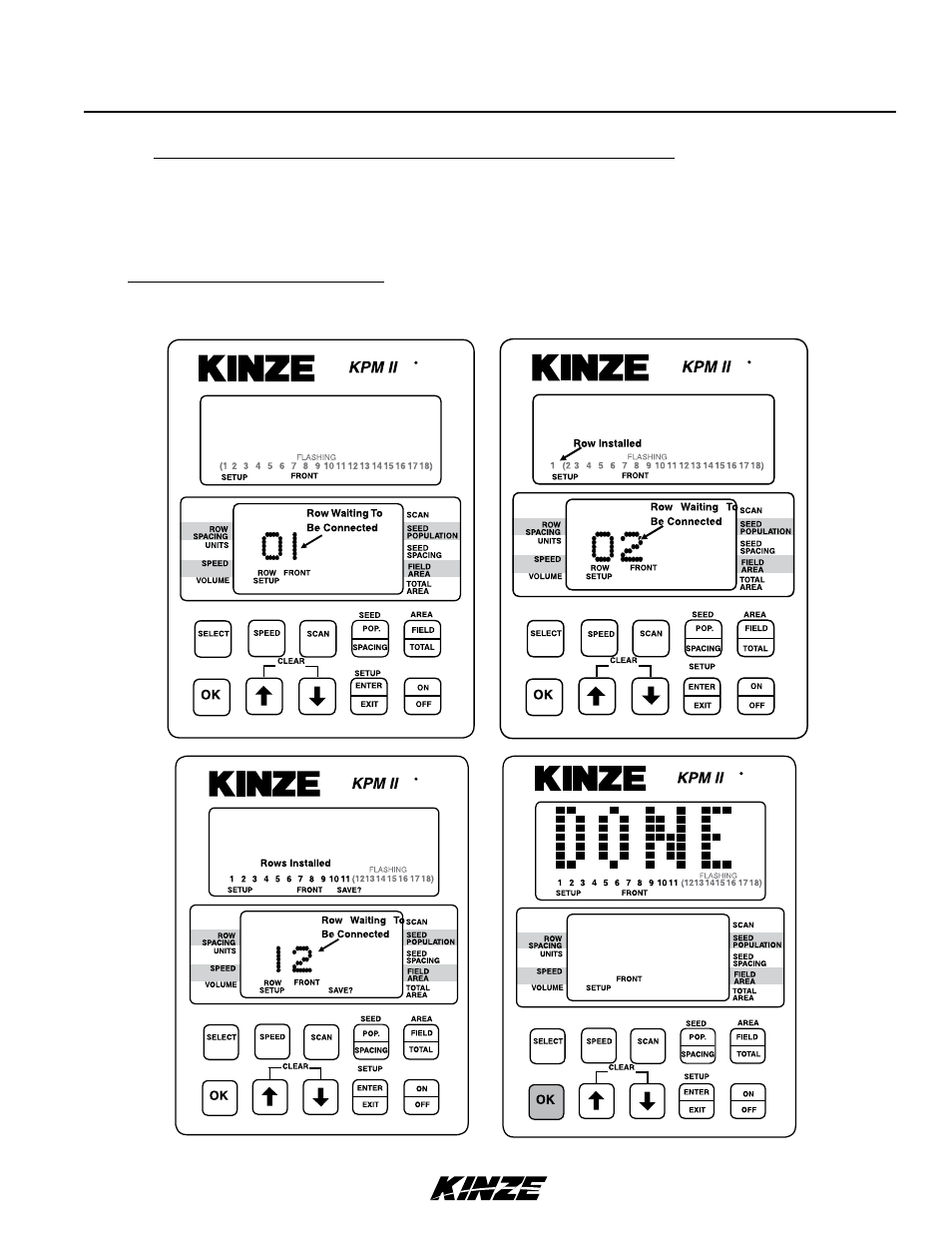

STEP 9 Follow STEPS 6, 7 and 8 to install the second, third and fourth sections (If Applicable). If no seed tubes are installed on the

additional sections, press and hold the OK key. “DONE” appears on upper display. Alarm sounds four short beeps followed by

one long beep and SAVE? icon turns off. The monitor has exited the setup mode. When you release the OK key upper display

scrolls “WAITING CALIBRATION”. Lower display shows “GNDSPD” and alarm sounds continually until distance sensor is

connected. See STEP 10.

NOTE: SMM console LCD remains blank (except the backlighted screen) until entire system is saved.

NOTE: Illustrated using rear/front configuration. The KPM II Stack-Mode console shows LEFT in the left/right configuration, REAR

in the rear/front configuration and FRONT LEFT/REAR LEFT in the four sections configuration. The SMM console shows RIGHT in

the left/right configuration, FRONT in the front/rear configuration and FRONT RIGHT/REAR RIGHT in four sections configuration.
