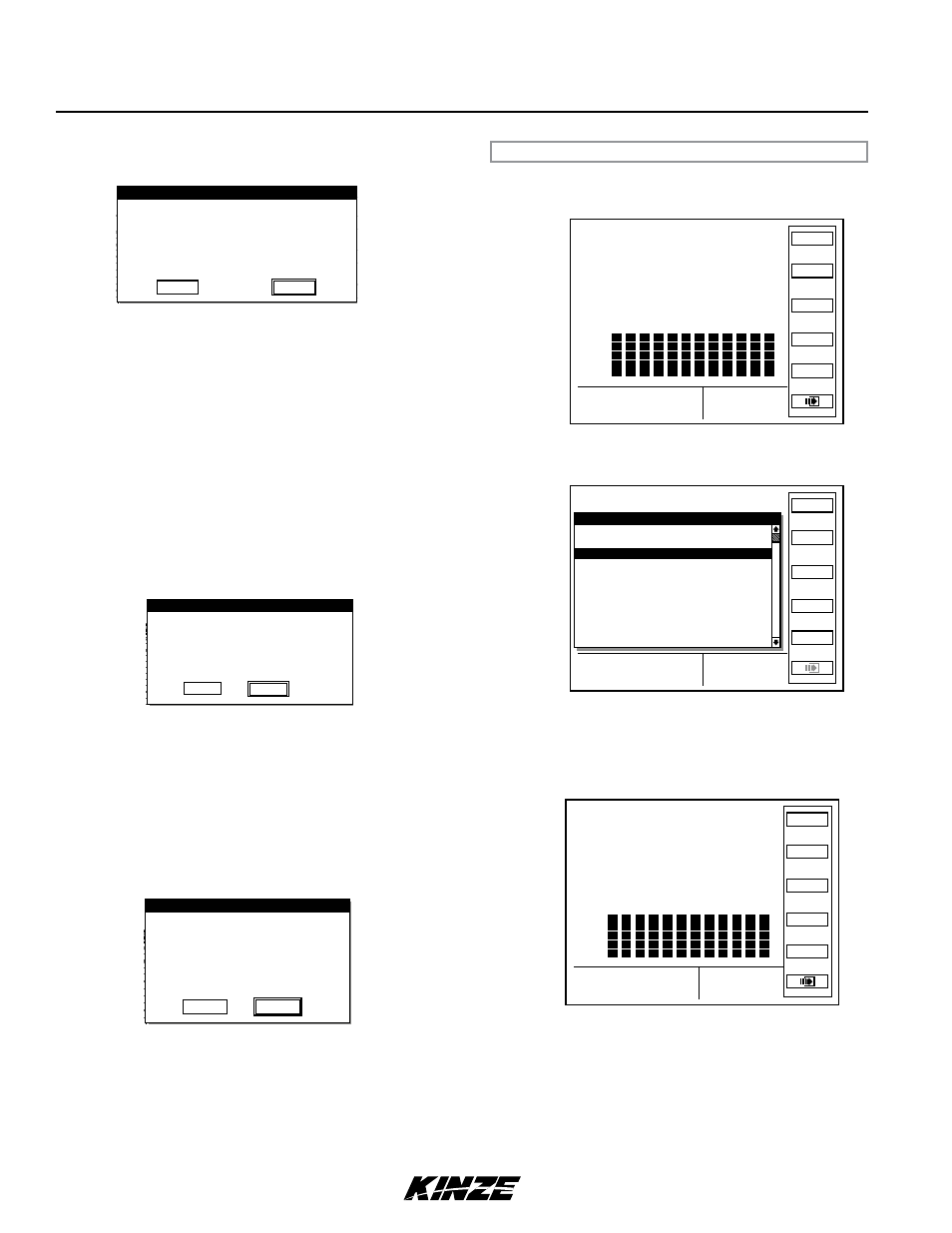

M0241-01 Model 3200
6-48 Rev. 7/12
TM
KPM III Monitor Operation
NOTE: If “Total area” is highlighted and F3 key next to Clear
is pressed the following request for confirmation displays.
Clear Area Counter
Total Area, Field Area, and Area Counters 1 through 40 can
be cleared, whether enabled or disabled. Clearing ‘‘Total Area’’
counter forces ‘‘Field Area’’ counter to be cleared. However,
clearing an ‘‘Area Counter’’ including ‘‘Field Area’’ clears only that
individual counter.
NOTE: Lifetime Area Counter can never be cleared or disabled.
Clearing an Area Counter
STEP 1 Turn knob or use arrow keys to highlight desired
area counter.
STEP 2 Press F3 key next to “Clear”. Request for
confirmation shown below displays
STEP 3 Turn knob or use arrow keys to highlight “OK” or
“Cancel” and press knob or Enter key to confirm
selection.
Status
Rename
Clr All
Area Management
Total Area 31.3 K 488.37
Clear
Field Area 31.3 K 488.37
Area Counter 1 31.3 K 486.02
Area Counter 2 0.0 K 0.0
Area Counter 3 0.0 K 0.0
Area Counter 4 0.0 K 0.0
Area Counter 5 0.0 K 0.0
Area Counter 6 0.0 K 0.0
Area Counter 7 0.0 K 0.0
Area Counter 8 0.0 K 0.0
Confirm Clear Area
Select and press OK to clear the area counter.
1 Area Counter 1 0.0
Select and press Cancel to retain the value
of the area counter.
Cancel OK
Clearing All Area Counters
NOTE: This clears all area counters except the ‘‘Total Area Counter’’
STEP 1 Press F4 key next to “CLR All”. A request for
confirmation displays.
STEP 2 Turn knob or use arrow keys to select “OK” or
“Cancel” and press knob or Enter key to confirm
selection.
Status
Rename
Clr All
Area Management
Total Area 31.3 K 488.37
Clear
Field Area 31.3 K 488.37
Area Counter 1 31.3 K 486.02
Area Counter 2 0.0 K 0.0
Area Counter 3 0.0 K 0.0
Area Counter 4 0.0 K 0.0
Area Counter 5 0.0 K 0.0
Area Counter 6 0.0 K 0.0
Area Counter 7 0.0 K 0.0
Area Counter 8 0.0 K 0.0
Confirm Clear All Counters
Select and press OK to clear all of the
area counters except the Total Area.
Select and press Cancel to retain the
values of all of the area counters.
Cancel OK
AREA COUNTERS
STEP 1 On Planter Configuration screen press F4 key next
to “Area”.
STEP 2 Press F3 key next to “Select” to display list of area
counters.
STEP 3 Use arrow keys to highlight desired area counter to
be displayed.
STEP 4 Press knob or Enter key and “Planter Configuration”
screen displays.
NOTE: Abbreviation for selected area counter appears in
bottom R.H. corner of the screen. In above illustration ‘‘ACF’’
stands for Area Counter Field.
RowPop
Spacing
Area
Other
Accuracy
Avg
Pop
30618 8.03
1 2 3 4 5 6 7 8 9 10 11 12
1 2 3 4 5 6 7 8 9 10 11 12
120
110
100
90
80
70
60
%
120
110
100
90
80
70
60
%
AC1
Status
Normal
Clear
Other
Select
Avg
Pop
0
1 2 3 4 5 6 7 8 9 10 11 12
1 2 3 4 5 6 7 8 9 10 11 12
120
110
100
90
80
70
60
%
120
110
100
90
80
70
60
%
0.00 ACF
Select Area Counter to Display
Total Area 0.0
Field Area 0.0 OFF
Area Counter 2 0.0 OFF
Area Counter 3 0.0 OFF
Area Counter 4 0.0 OFF
Area Counter 5 0.0 OFF
Area Counter 6 0.0 OFF
Area Counter 7 0.0 OFF
Area Counter 8 0.0 OFF
2
3
4
5
6
7
8
Area Counter 1 0.0 1
Status
Normal
Clear
Other
Select
Average
Spacing
6.7
1 2 3 4 5 6 7 8 9 10 11 12
1 2 3 4 5 6 7 8 9 10 11 12
120
110
100
90
80
70
60
%
120
110
100
90
80
70
60
%
560.2 ACF
Status
Rename
Clr All
Area Management
Total Area 31.3 K 488.37
Clear
Field Area 31.3 K 488.37
Area Counter 1 31.3 K 486.02
Area Counter 2 0.0 K 0.0
Area Counter 3 0.0 K 0.0
Area Counter 4 0.0 K 0.0
Area Counter 5 0.0 K 0.0
Area Counter 6 0.0 K 0.0
Area Counter 7 0.0 K 0.0
Area Counter 8 0.0 K 0.0
Confirm Clear Total Area
Total Area and Field Area will be cleared!
Select and press OK to cleare both area counters.
Select and press Cancel to retain the values
of both area counters.
Cancel OK
