Machine Operation
7. Fold each wing forward into transport position and lock wings in
place at marker support and hitch with wing safety pins.
WARNING
Uncontrolled wing movement can cause death, serious injury, and
damage to property and equipment. Make sure wings are properly
locked in place before moving planter
3. Loosen wing lock 1¼" hex nuts and swing wing lock
eyebolts over to release planter wings.
4. Raise planter.
5. Install cylinder lockups on four center section lift cylinders.
6. Place tractor hydraulic control in lowering position and hold
until wing cylinders are fully retracted and wing tires are fully
raised.

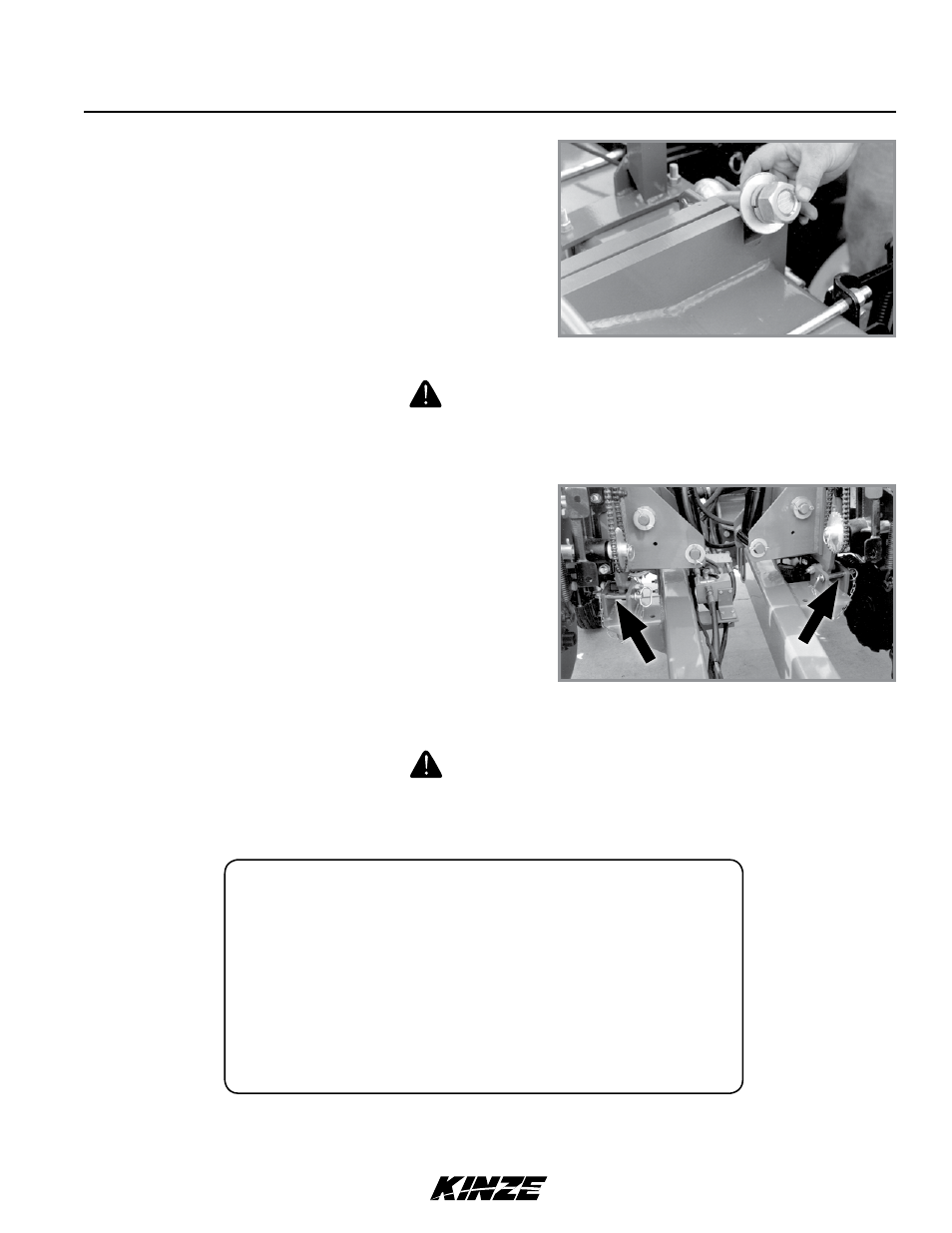

Wing lock eyebolt
Wing lock pin locations
HyDRAULIC WING FOLD TRANSPORT TO FIELD OPERATION
WARNING
Planter wings may swing suddenly and cause death or serious injury.
Do not stand between wings and frame when folding or unfolding
planter. Planter must be on a level surface in all directions.
SUMMARIzED TRANSPORT TO FIELD SEqUENCE
• With center lift cylinders retracted and lockups in place, remove wing lock pins.
• Move selector valve to “FOLD”.
• Hydraulically fold wings out.
• Swing wing locking eyebolts into place.
• Extend lift cylinders.
• Remove center section lift cylinder lockups.
• Lower planter.
• Tighten wing locking eyebolts.
• Release turnbuckle at center of planter.
• Move selector valve to “MARKER”.
NOTE: Read following information for detailed instructions.
NOTE: Use special wrench stored on inside of hitch for center turnbuckle and wing lock eyebolt
hex nuts. Always return wrench to storage location after use.
