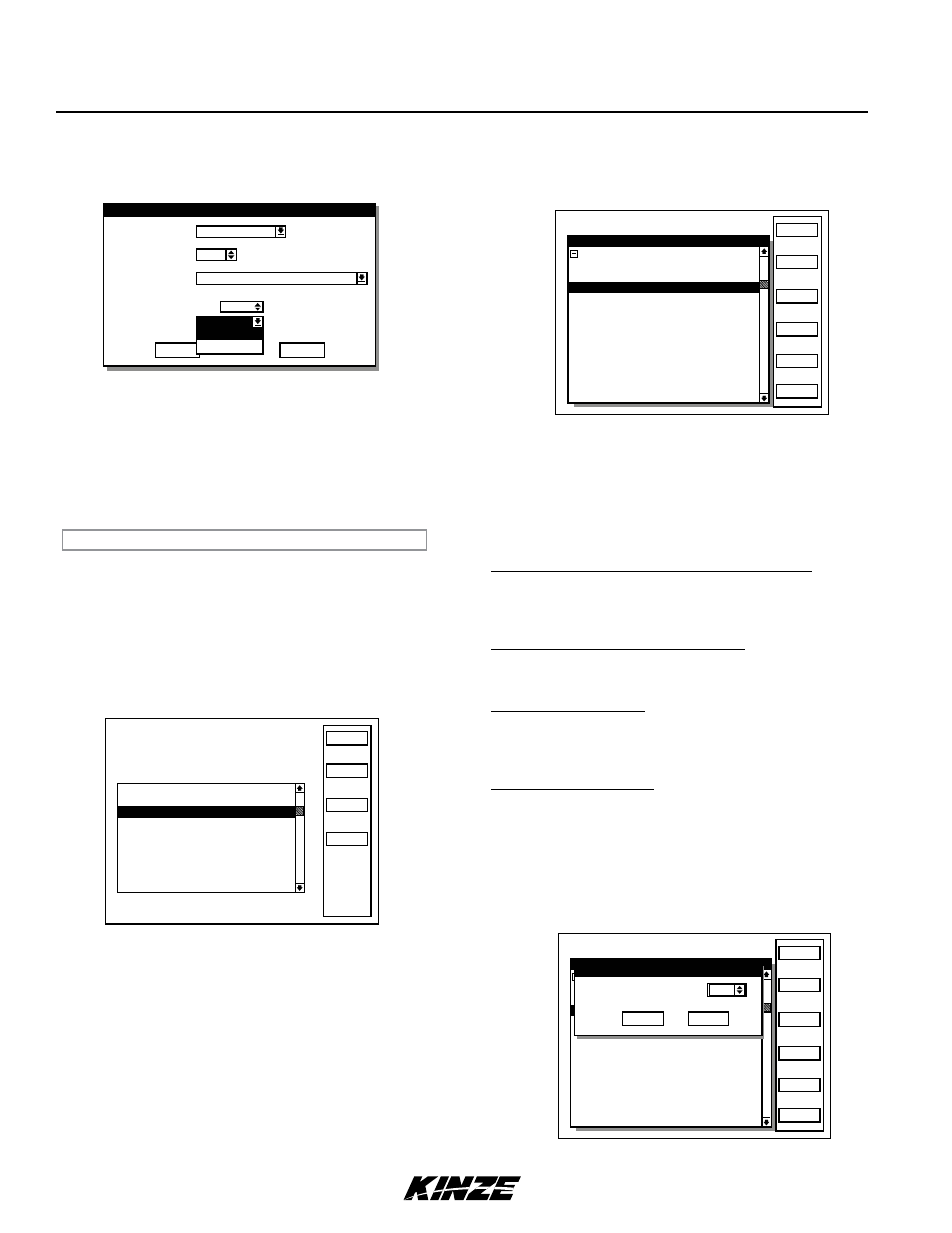

M0241-01 Model 3200
6-30 Rev. 7/12
TM
KPM III Monitor Operation
Status
Plant
About
Setup Mode
Configuration: Front / Rear
1. General Settings
2. Seed Meter Settings
3. Row Unit Alarm Levels
4. Setup Data Logging
5. Configure Planter Monitor
6. Add New Muxbus Sensors
7. Add Single Interplant Row
8. Select Speed Sensor
9. Sensor Setup
Logdata
Seed Meter Settings
Cancel OK
Meter Type
Crop Type
Seeds per rev
Interplant
Vacuum
Meter Sprocket teeth 28
Corn/Popcorn
39
Enabled
Enabled
Disabled
Seed Size 10 nominal 10, min 0, max 31
STEP 9 (If Applicable) Turn knob or use arrow keys to
highlight “Interplant”. Press knob or Enter key to
display Interplant drop down menu.
STEP 10 Turn knob or use arrow keys to highlight “enable” or
“disable” and press the knob or Enter key.
STEP 11 When all changes have been made, highlight “OK”
and press knob or Enter key to return to “Setup
Mode” screen.
STEP 2 To set alarm thresholds for whole planter, turn knob
or use arrow keys to highlight “[Whole Planter]” line.
Press key next to desired threshold. When desired
threshold is specified for all row units, press F6 key
next to “Done”.
NOTE: Only configured rows appear on screen.
To set alarm thresholds for all rows in one section, highlight
desired section. Press key next to desired threshold. When
desired threshold is specified for all row units, press F6 key next
to “Done”.
To set alarm thresholds for individual rows, highlight desired row.
Press key next to desired threshold. When desired threshold is
specified for all row units, press F6 key next to “Done”.
To disable row unit alarm, highlight desired section or individual
row. Press F4 key next to “Disable”. When alarm is desired
again highlight disabled section or row. Press key next to desired
threshold.
To enter threshold not listed, highlight desired section or individual
row. Press F5 key next to “Other”. Press knob or Enter key and
a drop down key pad appears. Turn knob or use arrow keys to
highlight first digit of desired number and press knob. Number
displays in “Enter Alarm Threshold” line. Highlight next digit of
the number and press knob. Number displays in the line. When
correct number is displayed, press Enter key to return to “Set
Alarm Threshold” screen. Turn knob or use arrow keys to advance
to “OK”. Press knob or Enter key to accept threshold levels.
Status
Plant
About
Setup Mode
Configuration:
Effective row spacing: 15.0
Front / Rear
1. General Settings
2. Seed Meter Settings
3. Row Unit Alarm Levels
4. Setup Data Logging
5. Configure Planter Monitor
6. Add New Muxbus Sensors
7. Add Single Interplant Row
8. Select Speed Sensor
9. Sensor Setup
10.Calibrate Speed Sensor
Logdata
10%
50%
Disable
Other
Done
Rear Row 1 50%
Rear Row 2 50%
Rear Row 4 50%
Rear Row 5 50%
Rear Row 6 50%
Rear Row 7 50%
Rear Row 8 50%
Front Row 1 50%
Front Row 2 50%
Front Row 3 50%
Front Row 4 50%
70%
Row Unit Alarm Levels
[Whole Planter]
Rear Row 3 50%
PROGRAMMING ROW UNIT ALARM LEVELS
Row Unit Alarm Levels allow thresholds for seed rate alarms to
be set. Default is 50% or Average. If average population drops
below 50% for a given row a seed rate alarm is generated for
that row unit. The alarm threshold can be set to 70%, 50%, 0% or
disabled, or any custom percentage for any row.
NOTE: When alarm threshold is disabled for any row no seed
rate alarm will be generated.
Alarm thresholds can be set for whole planter, any planter section,
or individual rows.
NOTE: A section is a set of rows driven by one or more
shafts, designated to a single shaft sensor.
STEP 1 Select ‘‘3. Row Unit Alarm Levels’’ by turning knob or
using arrow keys. Press knob or Enter key to display
highlighted item.
10%
50%
Disable
Other
Done
Rear Row 1 50%
Rear Row 2 50%
Rear Row 4 50%
Rear Row 5 50%
Rear Row 6 50%
Rear Row 7 50%
Rear Row 8 50%
Front Row 1 50%
Front Row 2 50%
Front Row 3 50%
Front Row 4 50%
70%
Row Unit Alarm Levels
[Whole Planter]
Rear Row 3 50%
Set Alarm Threshold
Enter Alarm Threshold
Cancel OK
0
