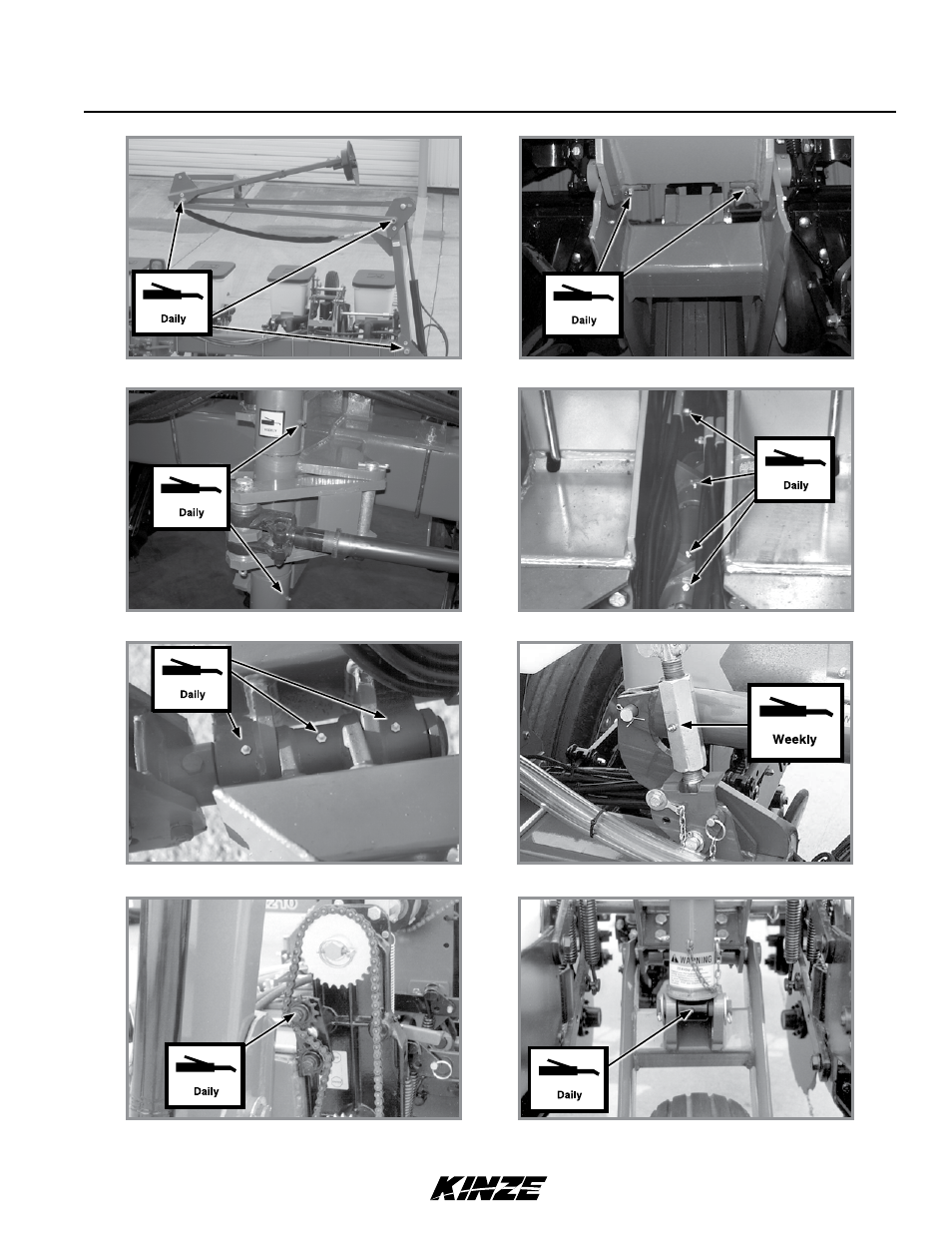

Lubrication and Maintenance
1. Row marker assemblies - 3 per assembly
4. Center frame flex pin - 4
5. Hitch flex pin - 3
3. Wing hinges - 2 per wing
6. Turnbuckle - 1
2. Wheel pivots - 2 per wheel module
7. Seed rate transmission idler - 1 per
transmission 8. Planter lift cylinders (master, slave, and
assist) - 1 per cylinder
