3 Operation and visualization

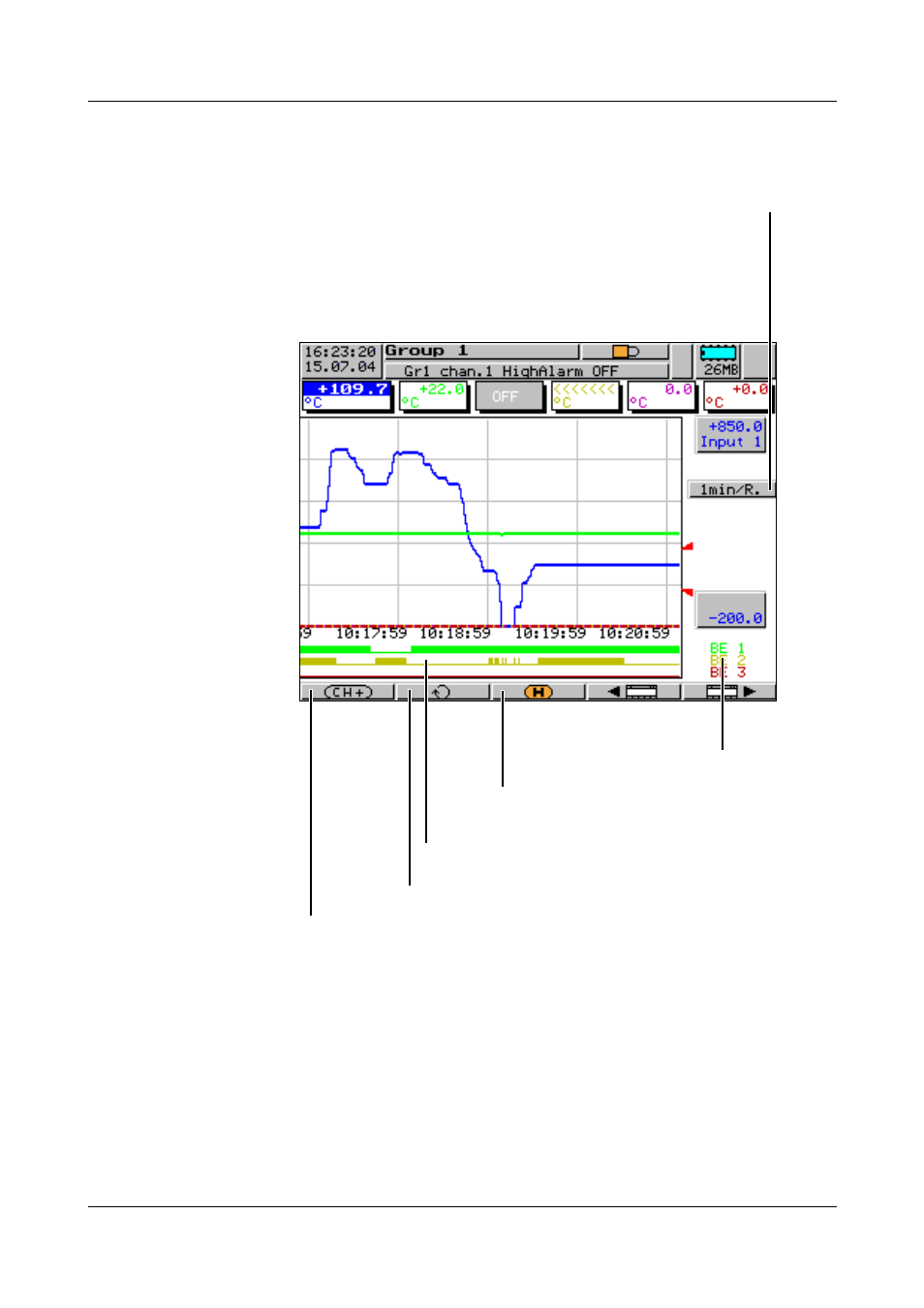

3.2.2 Horizontal diagram
In the horizontal diagram, the analog and, in addition, the digital channels of a
group are registered horizontally, from left to right.
Representation of the digital channels in the group.
No display if no digital channel is configured.
Evaluation of the stored measurement data
Channel name
of the digital channels
Switch to the next active group
Present diagram
speed
Background color:
gray = normal operation,
blue = timed operation,
orange = event operation
Select next channel
