Now the individual channels of the selected group are displayed.
The variables that are shown are acquired and displayed automatically by the
web server. The latest data are read out of the instrument every 5 seconds.
Group alarms (limit exceedings) are signaled by a color switch (red) of the
group names.
A maximum of six analog channels as well as three digital channels are
displayed. Digital channels are displayed in the form of a white „0“ (inactive) or
a orangen „1“ (active).

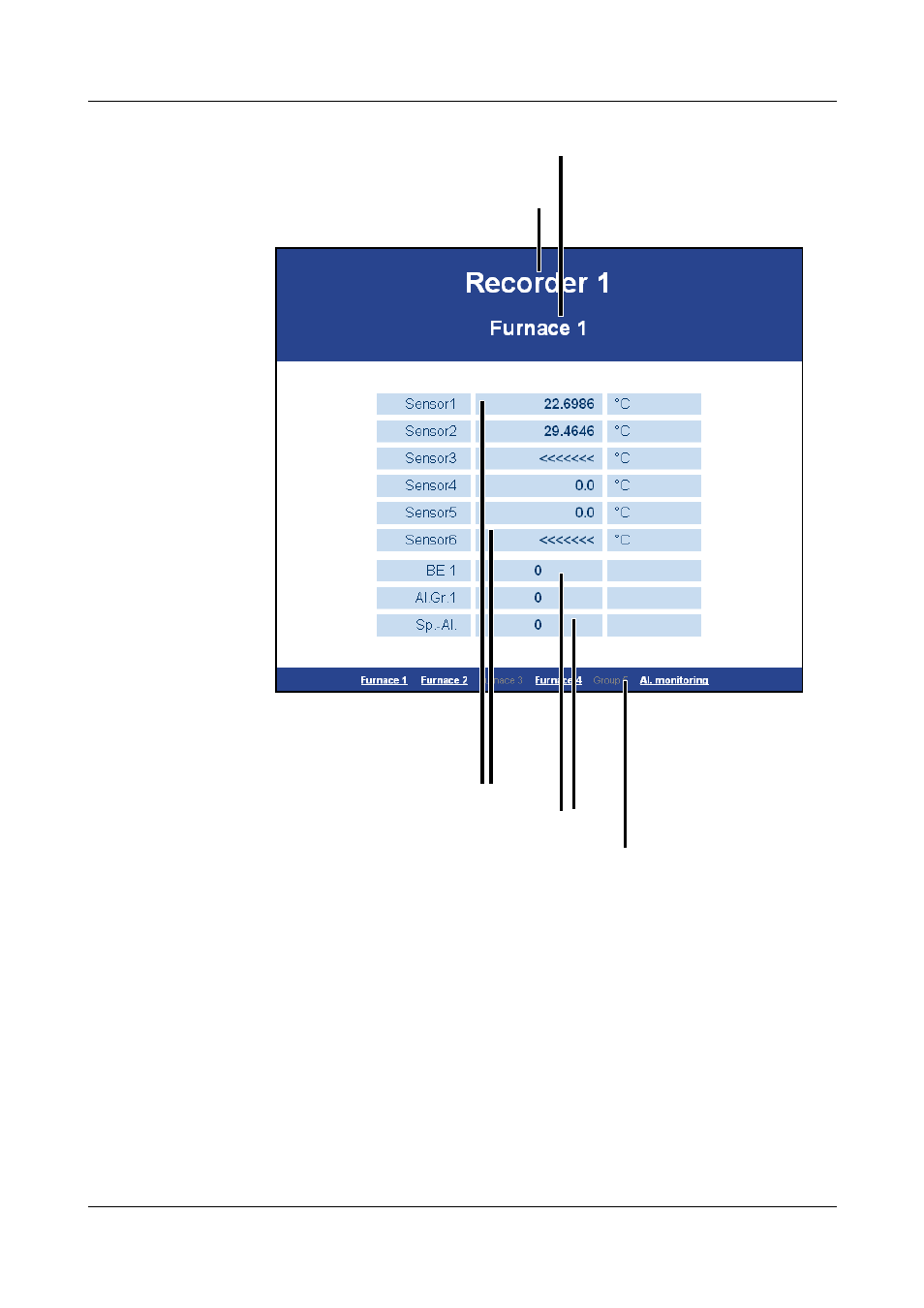

device name
max. six analog channels
max. three digital channels
group selection
group name; group alarms are
indicated by a color switch (red)
