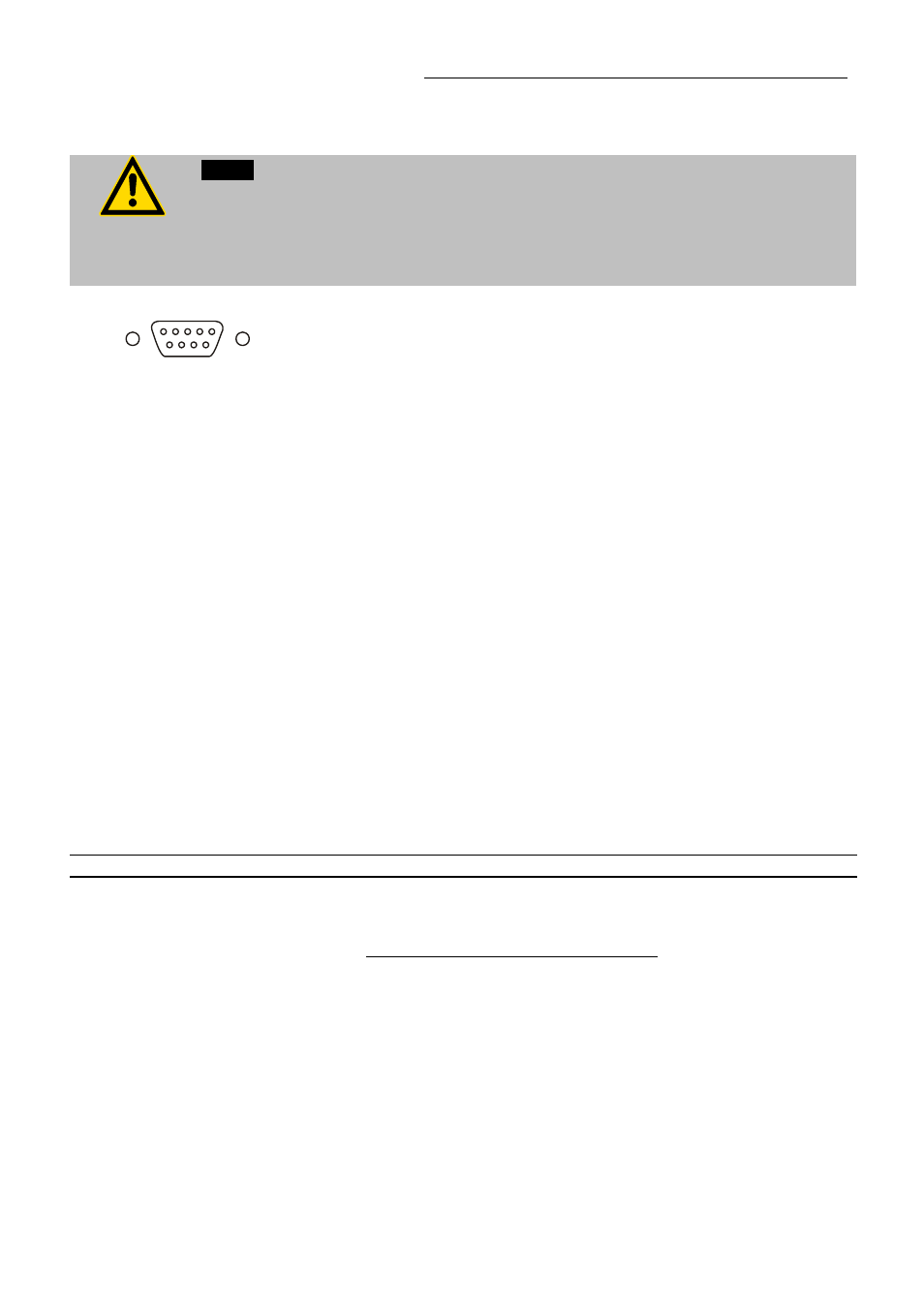

10. Electrical connections

Notice:

Use shielded cables only.
The shield of the connecting cable is electrically connected to the plug housing.
The unit ensures safe operation if connecting cables with a maximum length of 3 m are used.
The use of longer cables does not affect proper performance of the unit, however external
interferences may have a negative impact on safe operation.

9

6

5

1

SERIAL

RS232/RS485 serial interface
This port can be used to connect a computer with an RS232 or RS485 cable
for remote control of the temperature system.


Pin assignments RS232:
Pin 2

RxD

Receive Data

Pin 3

TxD

Transmit Data

Pin 5

0 V

Signal GND

Pin 7

RTS

Request to send

Pin 8

CTS

Clear to send


Pin 1; 4; 6, 9 Reserved - do not use!


Pin assignments: RS485
Pin 3

A

Pin 5

0 VD

Signal GND

Pin 8

B


Pin 1; 2; 6; 7; 9

Reserved - do not use!




Accessories: Order

No.

Description

8 980 073

RS232 interface cable 9-pol./9-pol. , 2,5 m

8 900 110

USB interface adapter cable


RS232 interface cable
Circulator

(9-pol) PC

(9-pol)

Pin 2 RxD

Pin 3 TxD

Pin 3 TxD

Pin 2 RxD

Pin 5 GND

Pin 5 GND

Pin 7 RTS

Pin 8 CTS

Pin 8 CTS

Pin 7 RTS
