Condition Monitoring Unit CMU 1000 Page 76
Revised 17.12.2009 HYDAC ELECTRONIC GMBH Mat.-No.: 669749

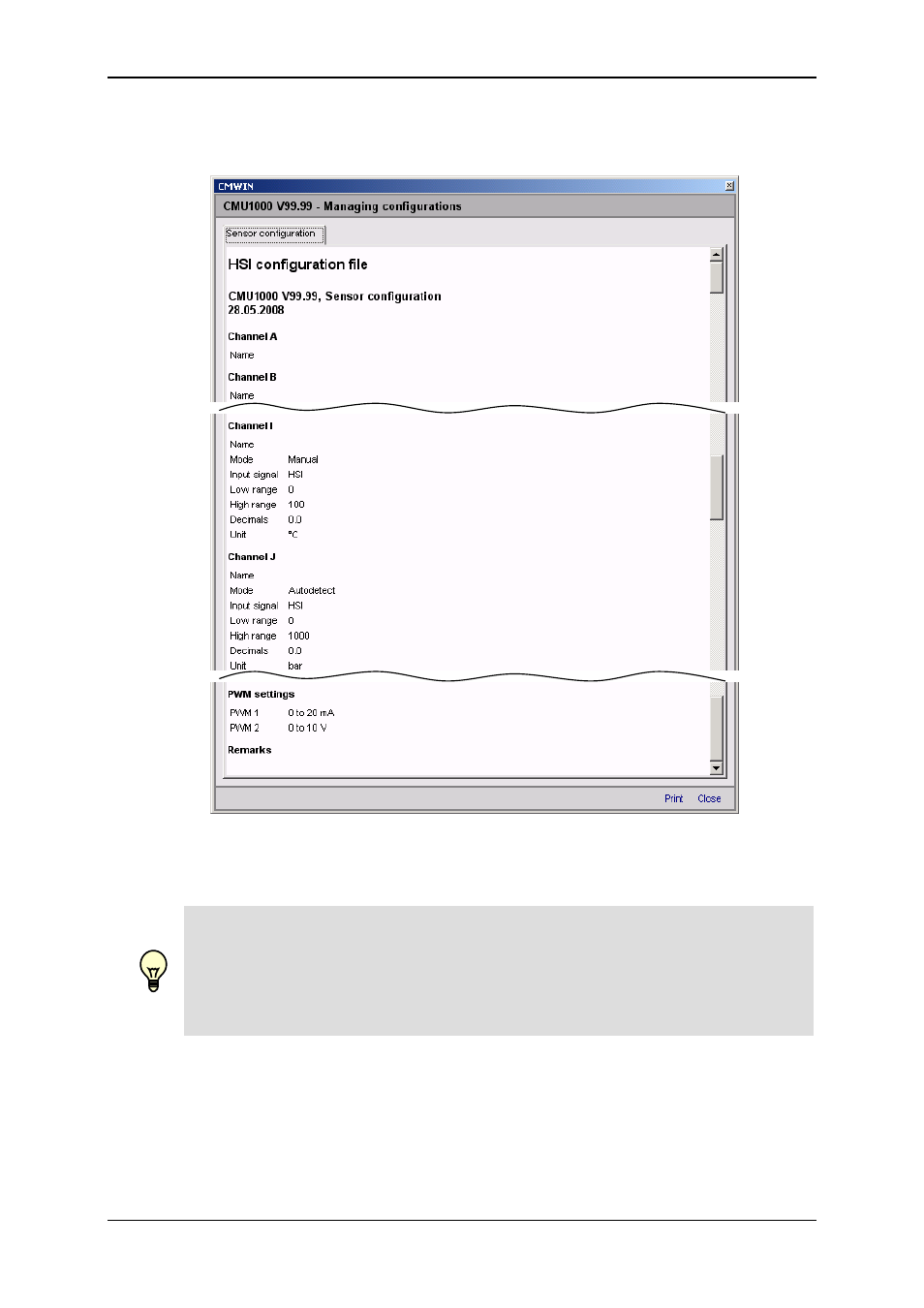

• When the Display function is selected, a window opens in which the complete
sensor configuration file is displayed.
Note!
With a CM program, one has the opportunity of integrating not only a
configuration file but also a constellation file, so that one can define the
configuration and the constellation at the same time the CM program is
transferred into the CMU 1000. Both parts are however optional and need not
be present in the CM program.
