Condition Monitoring Unit CMU 1000 Page 27
Revised 17.12.2009 HYDAC ELECTRONIC GMBH Mat.-No.: 669749

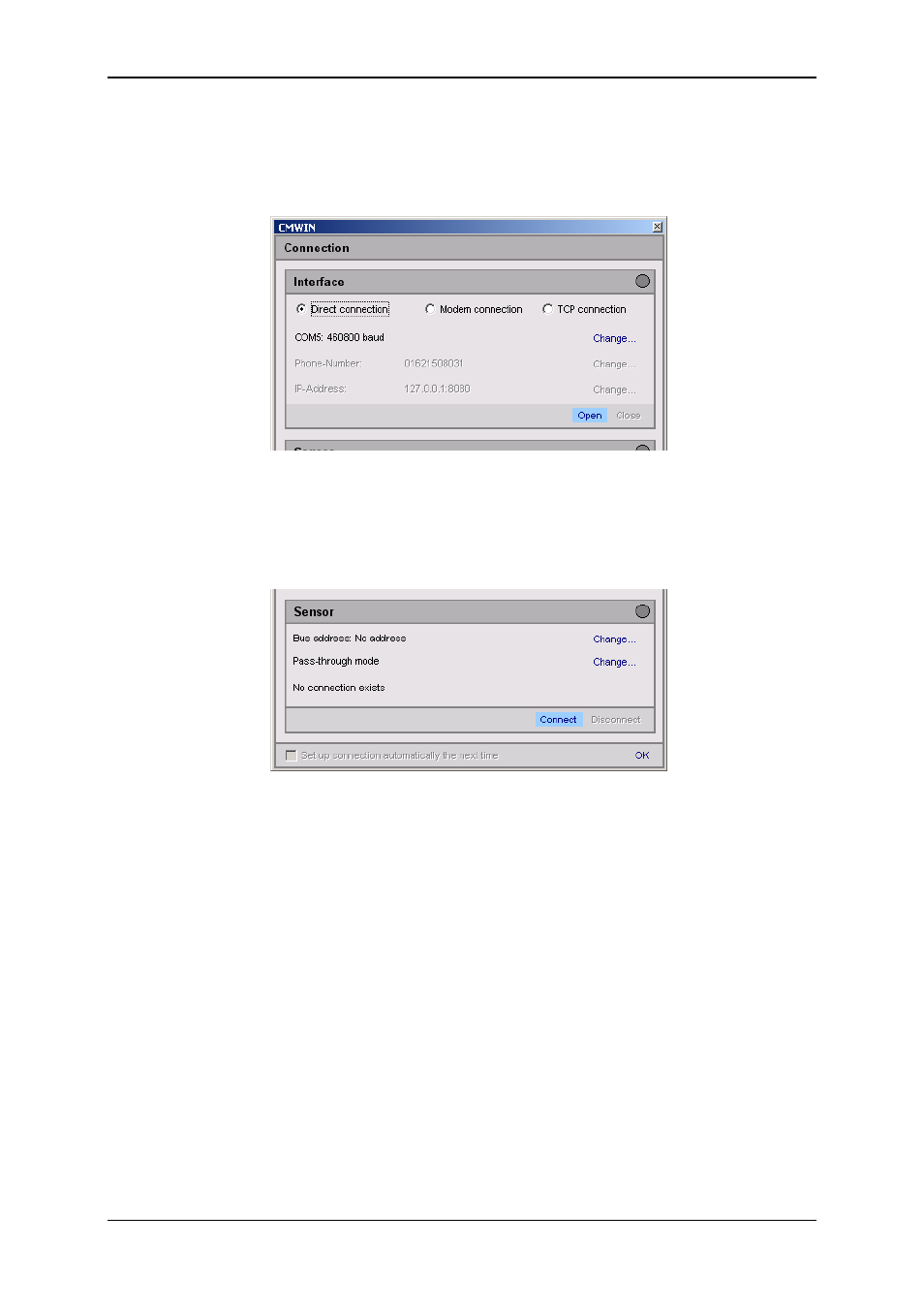

• In the Interface field, select the option "Open" in order to open the selected
interface (COM port).
The opened interface will be symbolized by a green dot on the right-hand edge
of the window.
• Afterwards click on "Connect" in the Sensor field to connect the CMU 1000 to
the PC.
The successful connection will be symbolized by a green dot on the right-hand
edge of the window.
