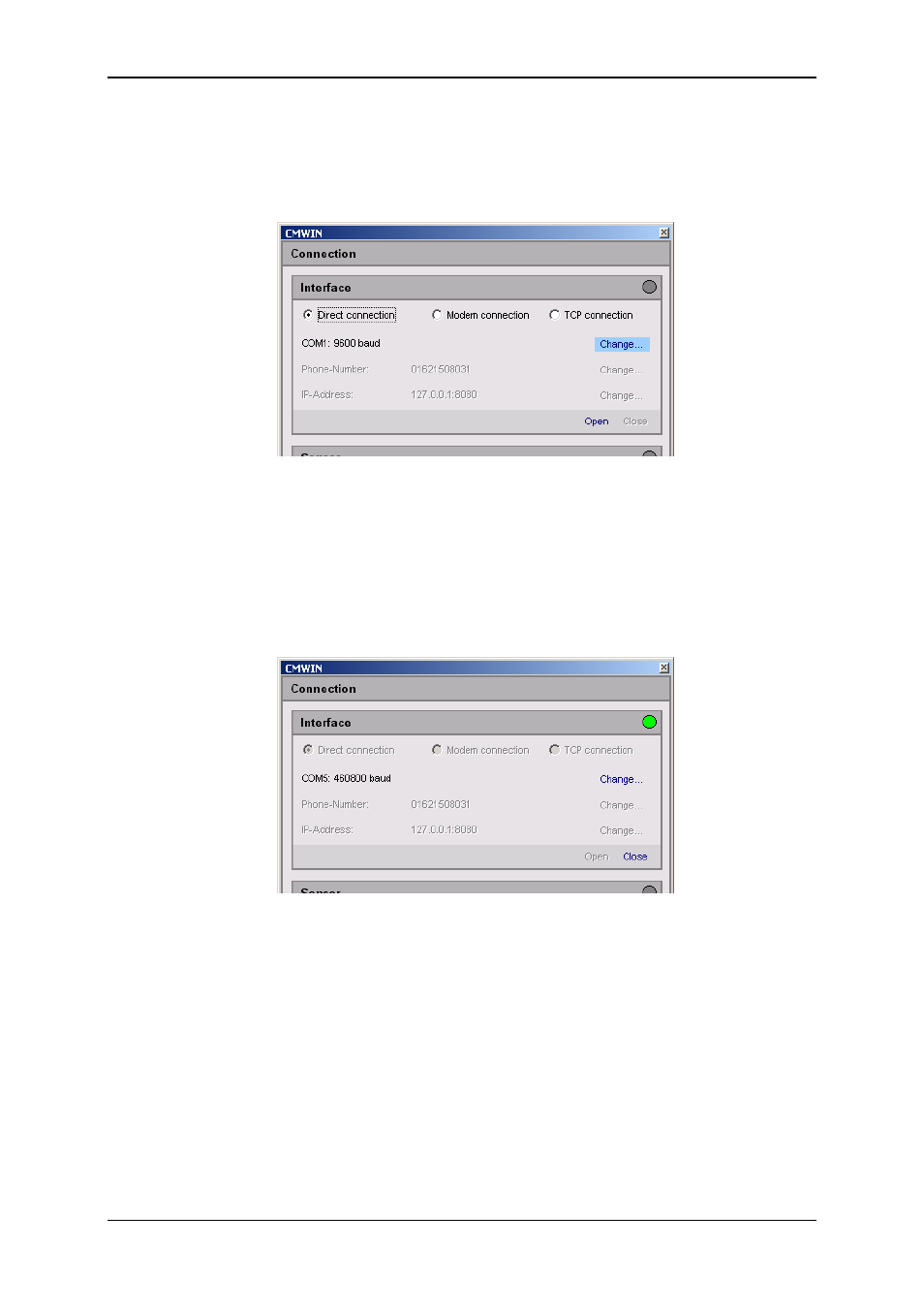

• If the Connection window does not open automatically, select
"Connection" in the menu bar of the CM Manager.
• Mark the option "Direct Connection" option in the window that opens.
• Click on "Change" to open the window for the interface settings.
• Make the corresponding preselection for the port settings in the window that
opens under Interface selection.
• Select the respective port address and Baud rate under Interface settings
(USB with 460,800 Baud).
• Pressing "Refresh" causes the interfaces marked under Interface selection to
be refreshed in terms of availability.
• Click on “OK“ to apply the modified settings or “Cancel“ to discard these
changes. In either case you will then return to the Connection window.
• Click on Open to open the selected interface. The opened interface is indicated
by a green dot on the upper right.
• To set up a connection with the "Master" CMU, simply click on Connect and
then OK.
