Condition Monitoring Unit CMU 1000 Page 38
Revised 17.12.2009 HYDAC ELECTRONIC GMBH Mat.-No.: 669749

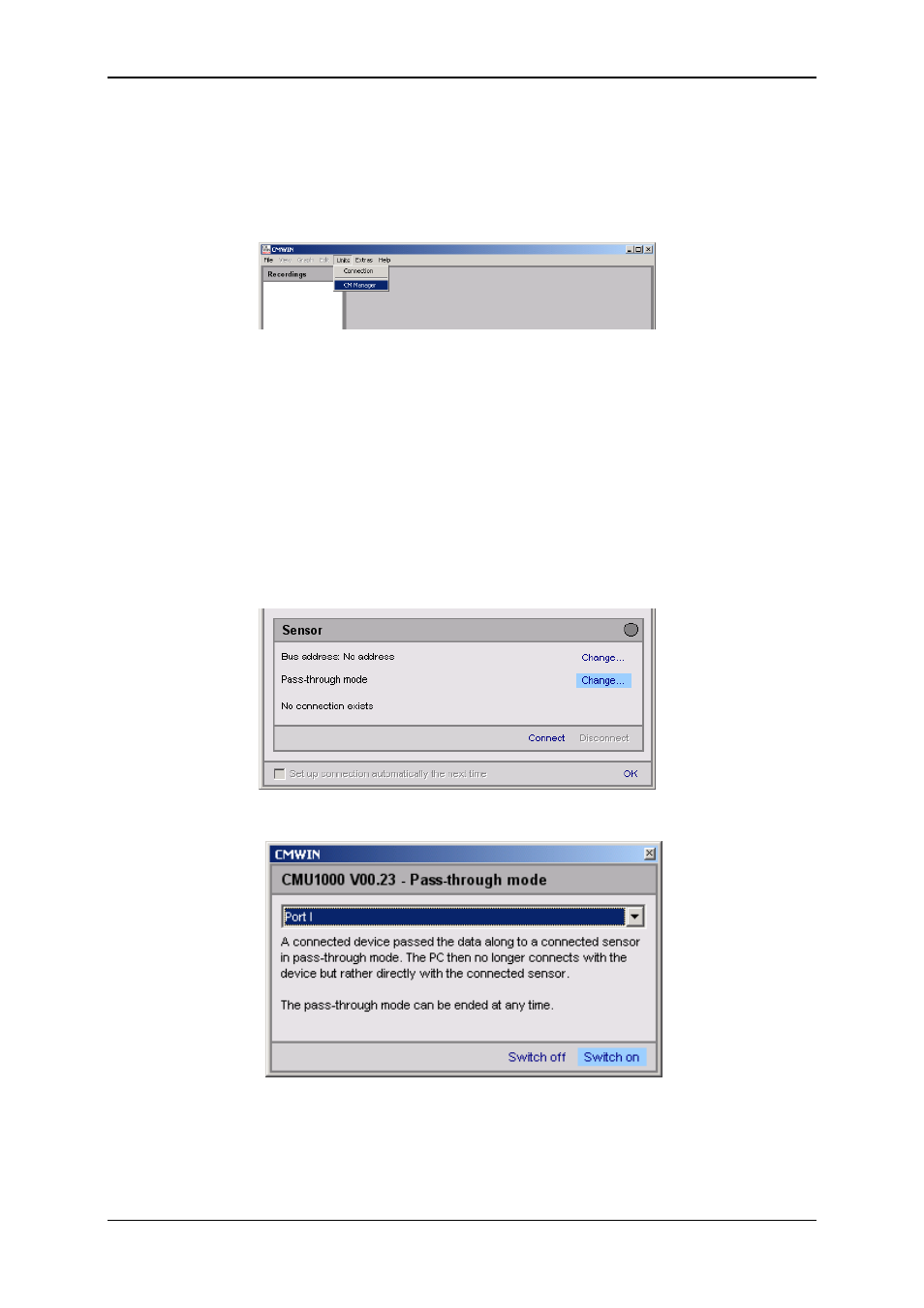

5.2.3.2 Establishing Connection with GSM Radio Module CSI-F-10
• Connect the CMU 1000 for configuring the CSI-F-10 GSM radio module to your
PC as also described in Chapter 5.2.1 Direct Connection, Chapter 5.2.2 Direct
Connection via HSI Bus or Chapter 5.2.4 TCP Connection
.
• Start the HYDAC PC software CMWIN
• In the Units Menu, select the "CM Manager" option.
• If the Connection window does not open automatically, select
"Connection" in the menu bar of the CM Manager.
• Under Interface Settings make the settings necessary for the available
connection type (for configuring the CSI-F-10).
• Click on “OK“ to apply the settings or “Cancel“ to discard these changes. In
either case you will then return to the Connection window.
• Click on Open to open the selected interface. The opened interface is indicated
by a green dot at the top right.
• Select "Change" in the Pass-through mode line. The following window opens:
• In the drop-down menu, select "Port I" and then click on Switch on in order to
switch on the pass-through mode.
