Condition Monitoring Unit CMU 1000 Page 45
Revised 17.12.2009 HYDAC ELECTRONIC GMBH Mat.-No.: 669749
5.2.4 TCP Connection
As a third option, you can set up a link between the PC and the CMU 1000 by means
of an Ethernet network.
In the following we present an example of this kind of link.
5.2.4.1 Device Connection
Use one Standard RJ45 cable each to connect your PC and the CMU 1000 to a
shared Ethernet network.
Note!
In order to be able to set up a connection via Ethernet, the network settings and
parameters in the CMU 1000 must first be correctly stored.
See in this connection Chapter 5.1.1/5.1.2 "Operation on the Device" and 5.2.5.5
"Performing a Dialog".

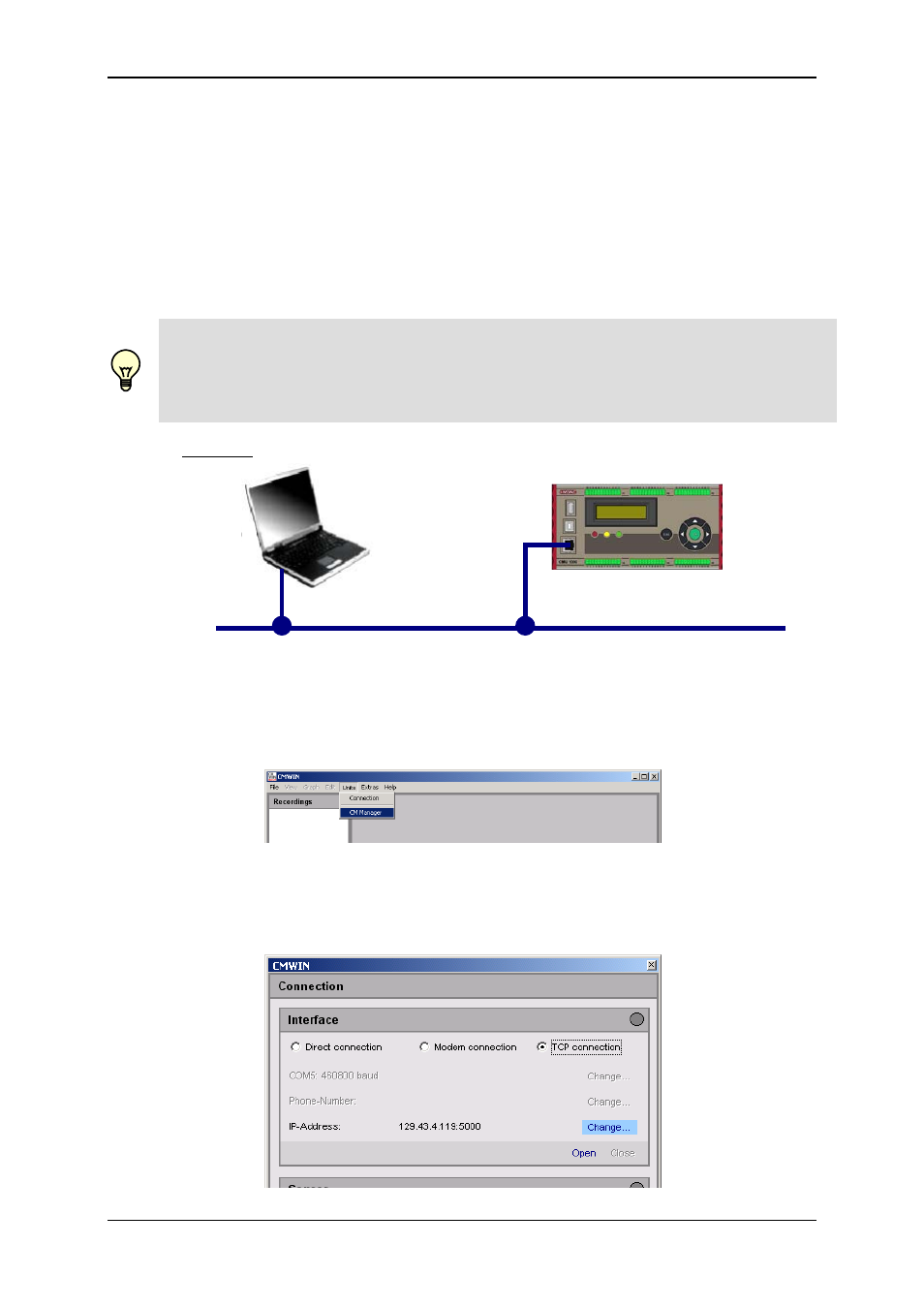

Example:
Ethernet (company / factory bay / system network)
5.2.4.2 Connection Setup
• Start the HYDAC PC software CMWIN
• In the Units Menu, select the "CM Manager" option.
• If the Connection window does not open automatically, select
"Connection" in the menu bar of the CM Manager.
• Mark the option "TCP Connection" option in the window that opens.
• Click on "Modify" to open the window for the interface settings.
