Condition Monitoring Unit CMU 1000 Page 37
Revised 17.12.2009 HYDAC ELECTRONIC GMBH Mat.-No.: 669749
5.2.3 Modem Connection
You also have the option of setting up a connection by means of the Standard GSM
mobile radio network.
In the following we present an example of this kind of communication link.
5.2.3.1 Device Connection/Pin Connections

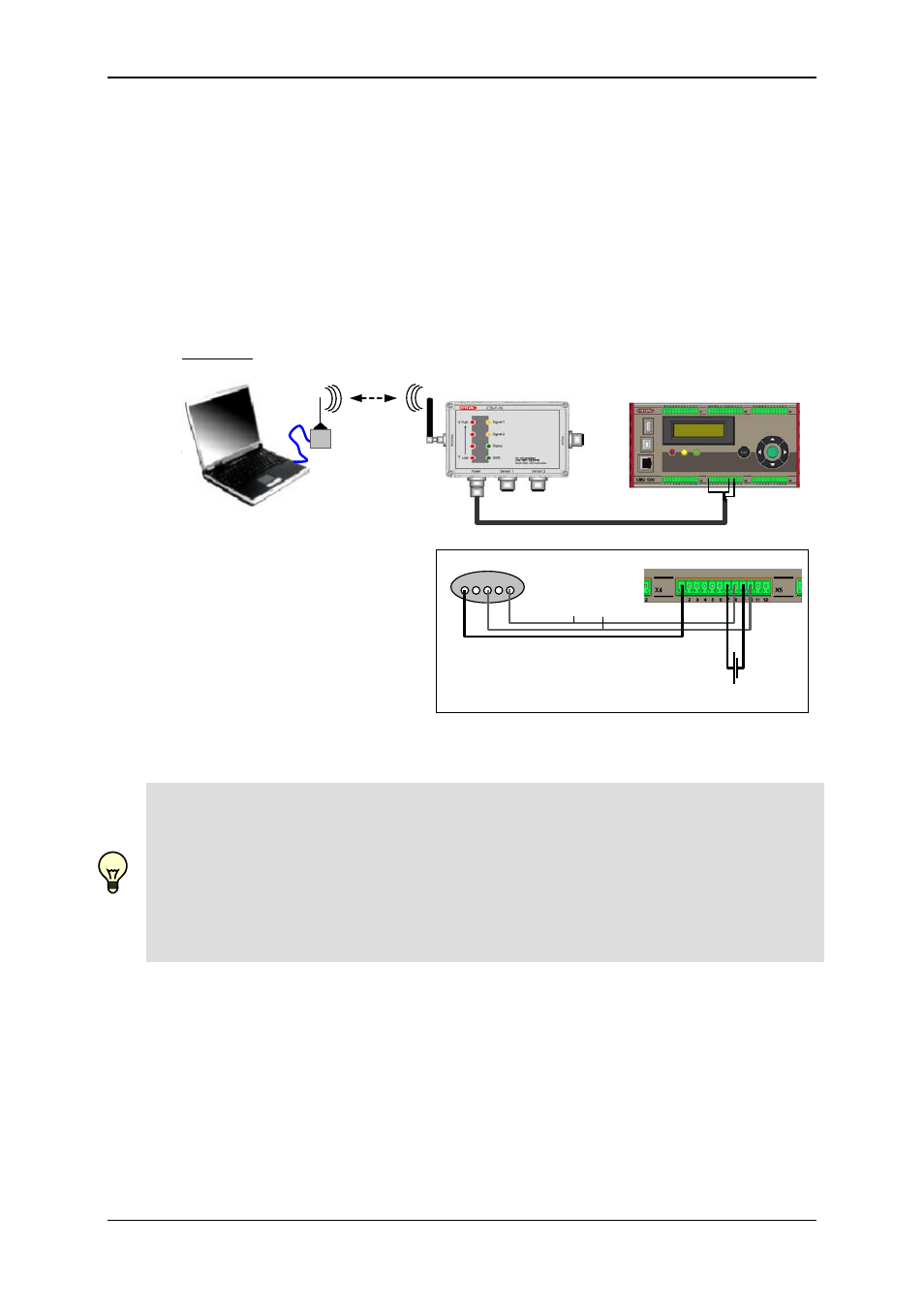

Connect a Standard GSM modem to your PC and connect the CMU 1000 to the
HYDAC GSM radio module CSI-F-10 in accordance with the diagram.
Example:
Note!
In order to be able to communicate with the CMU 1000 via the connected CSI-F-10
GSM radio module, this must first be configured. This means that the mobile phone
numbers which are authorized for access must be stored in the CSI-F-10 and
appropriate permissions assigned.
To configure the GSM radio module CSI-F-10, or to make changes in a configured
device, first connect directly with the GSM radio module CSI-F-10 as described below.
GSM
HSI
+U
B
GND
5 4 3 2 15
4 3 2 1
18..35 V DC / 5 A
