AS-i Safety Monitor for 2 AS-i circuits
Operation in advanced display mode
9.2 Navigation in advanced mode

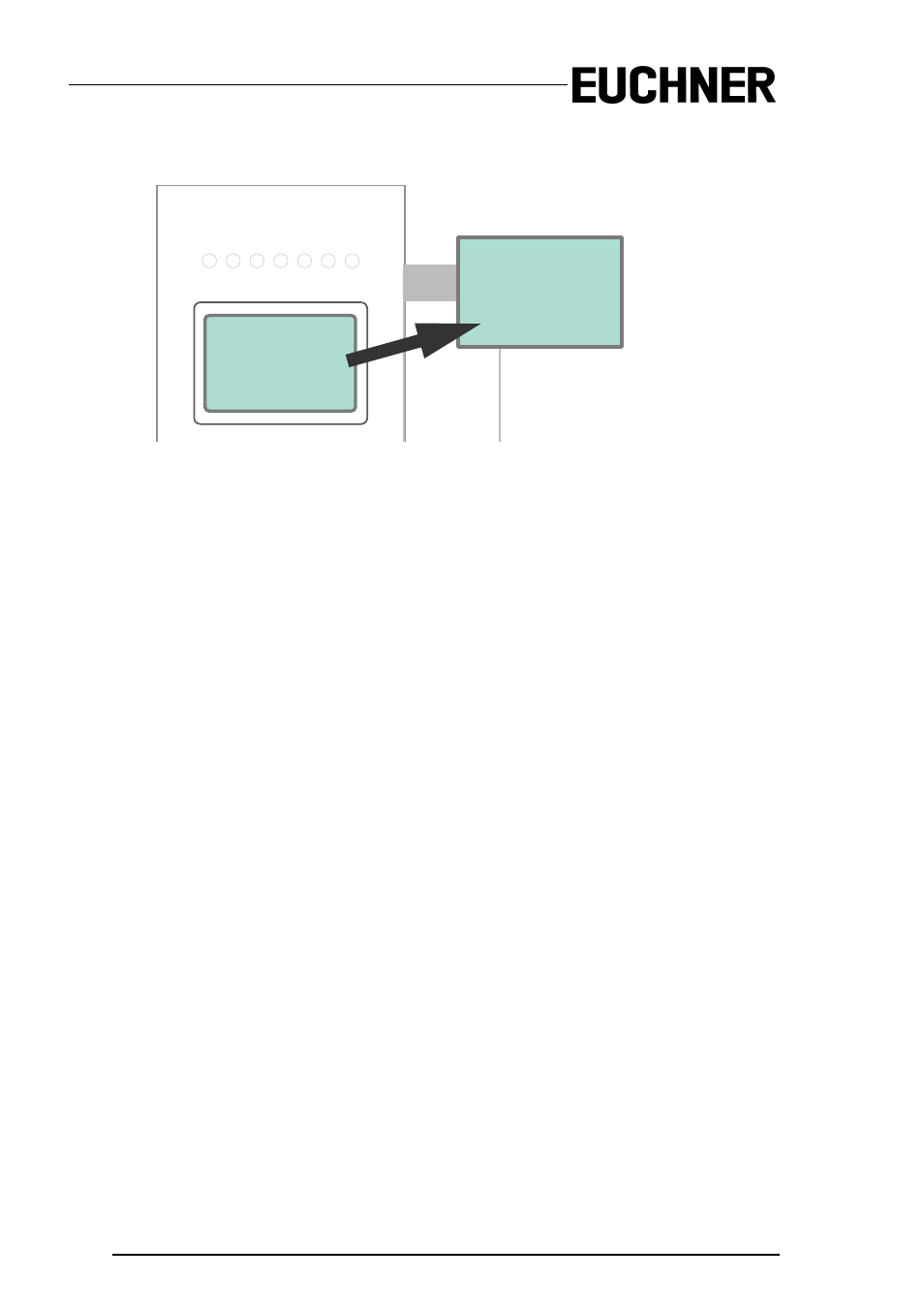

The device starts up in traditional (classical) mode. Switch to advanced mode by
pressing the OK key. From advanced mode you can return to traditional mode by
repeatedly pressing the ESC/Service key.
In advanced mode you can use the two arrow keys to move a selection bar up or
down. The OK key changes to the selection function or to the displayed menu.
The ESC/Service key returns the user to the previous menu.
If the values need to be edited, they must first be highlighted in the selection bar,
then selected using OK, changed using the arrow keys and then applied by
pressing OK. The ESC/Service key cancels the editing.
When slave addresses are displayed, all possible slaves are shown in order.
From 1A – 31A and from 1B – 31B. Data for single slaves are set for addresses
1A – 31A.
☺ P r e s s O K f o r M e n u
O u t p u t C i r c u i t
1 : O N 2 : O F F
AS-I SAFETY
DIAGNOSTICS
SETUP
LCD CONTRAST
☺ P r e s s O K f o r M e n u
O u t p u t C i r c u i t
1 : O N 2 : O N
3 : O N 4 : O N
