AS-i Safety Monitor for 2 AS-i circuits
Installation
5.3 Installing in the control cabinet

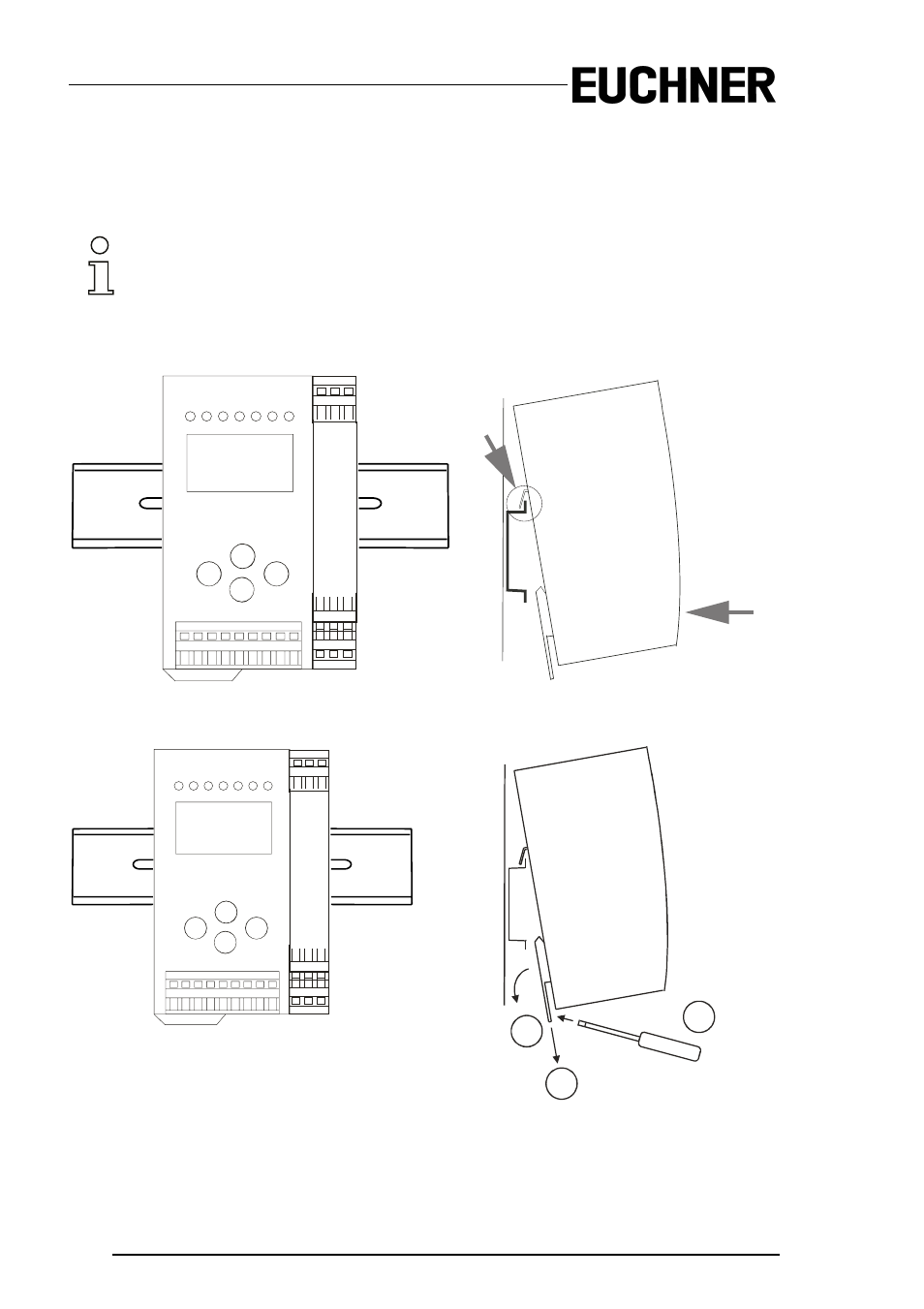

The AS-I Safety Monitor is installed in the control cabinet on 35mm DIN rails per
DIN EN 50 022.
To install, place the unit on the upper edge of the DIN rail and then snap in the
lower edge.
5.4 Removing
To remove, press the holding clamps [2] down using a screwdriver [1], press the
unit firmly against the upper rail guide and lift out.
Information!
The enclosure of the AS-i Safety Monitor is made of stainless steel. The unit is also sui-
table for exposed wall mounting.
+ - + - + -
[1]
[2]
+ - + - + -
