72 Desire Series v1.6.0 User Manual

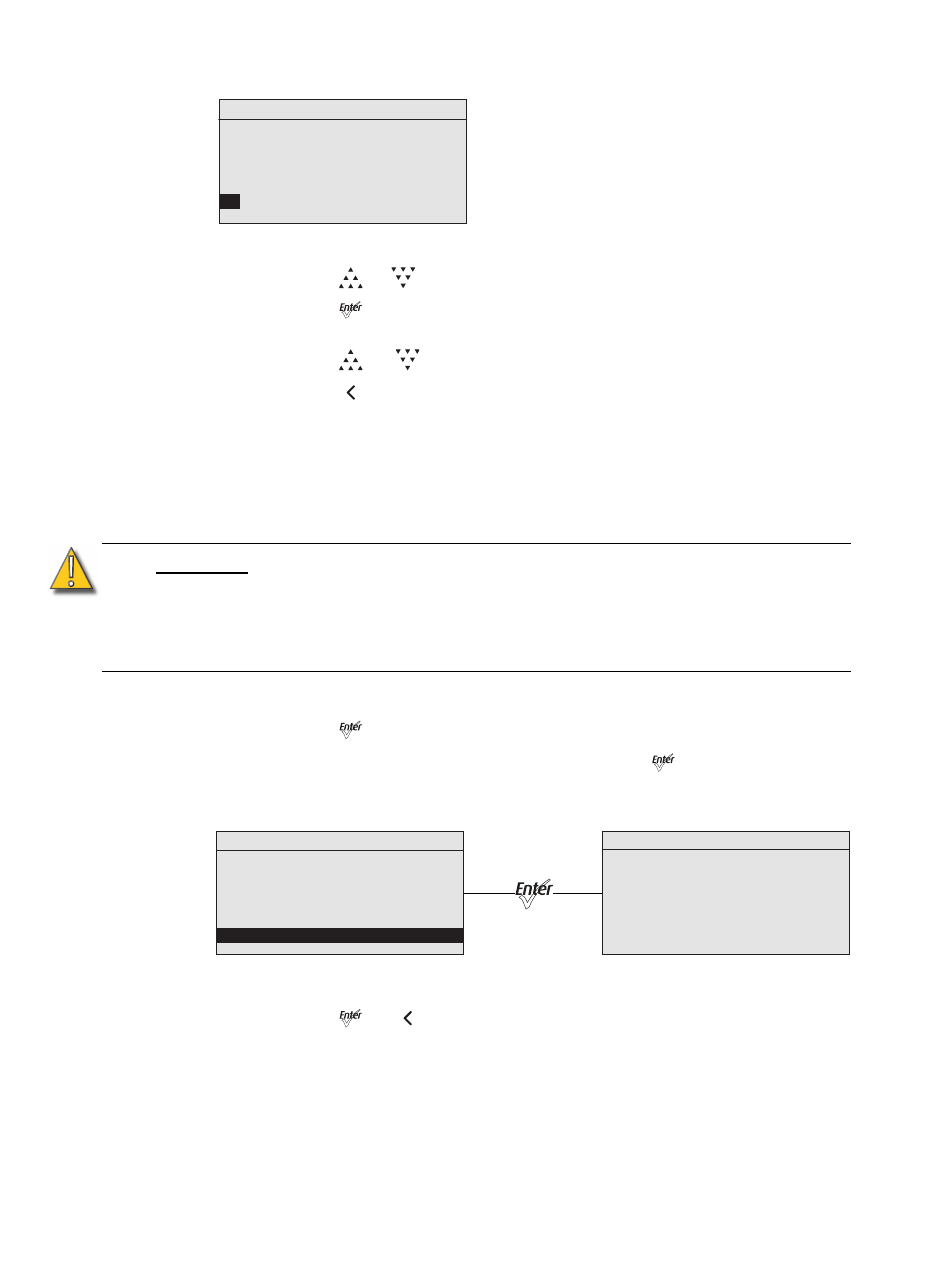

Figure-4.36 Test Screen in Individual Control Mode.
Step 4: Press [ ]or [ ] to set the intensity of the series.
Step 5: Press [ ] to move to the next series.
The value you entered for the first series is applied to the next series.
Step 6: Press [ ] or [ ] to change the intensity of the series.
Step 7: Press [ ] to return to Action.
Recalibrate Fixture
Service technicians may use this option to calibrate the constant current driver electronics
for the LEDs. The calibration process goes through each series of LEDs, starting at 0
intensity and stepping up to 100%. The calibration is automatic and takes less than a
minute. During this time, do not exit the screen until it is complete.
Step 1: On the Diagnostics screen, scroll to Recalibrate Fixture.
Step 2: Press [ ].
Step 3: When asked if you are sure, select Yes and press [ ].
A new screen shows that the calibration is in progress and whether the LEDs
pass the calibration.
Figure-4.37 LED Calibration Screen with Calibration in Process.
Step 4: Press [ ] or [ ] to return to the Diagnostics screen.
About Fixture
The About screen displays the following information. This is a read-only screen.
• The software version number
• The fixture serial number
C A U T I O N : T This calibration process does not measure or recalibrate the light output of the
LEDs.
Under normal use, it is not necessary to recalibrate the fixture, and doing so will
likely have no beneficial effect on fixture performance. It is therefore NOT
recommended to recalibrate the fixture without express instruction from an
authorized technician.
Diagnostics
Individual Control
Test
Action: Ind Cntr
Chase: 15 steps/sec
G O R A O R I
56 00 00 00 00 00 00
LED Calibration
LED 1 .......Pass
LED 2 .......Pass
LED 3 .......Pass
LED 4 .......Working
LED 5 .......Working
LED 6 .......Working
LED 7 .......Working
Diagnostics
Recalibrate Fixture
This Will Calibrate
LED Array
Are You Sure?
Yes
No
