SECTION 9 - HYDRAULIC COMPONENTS

434

644E-42,944E-42

8990462

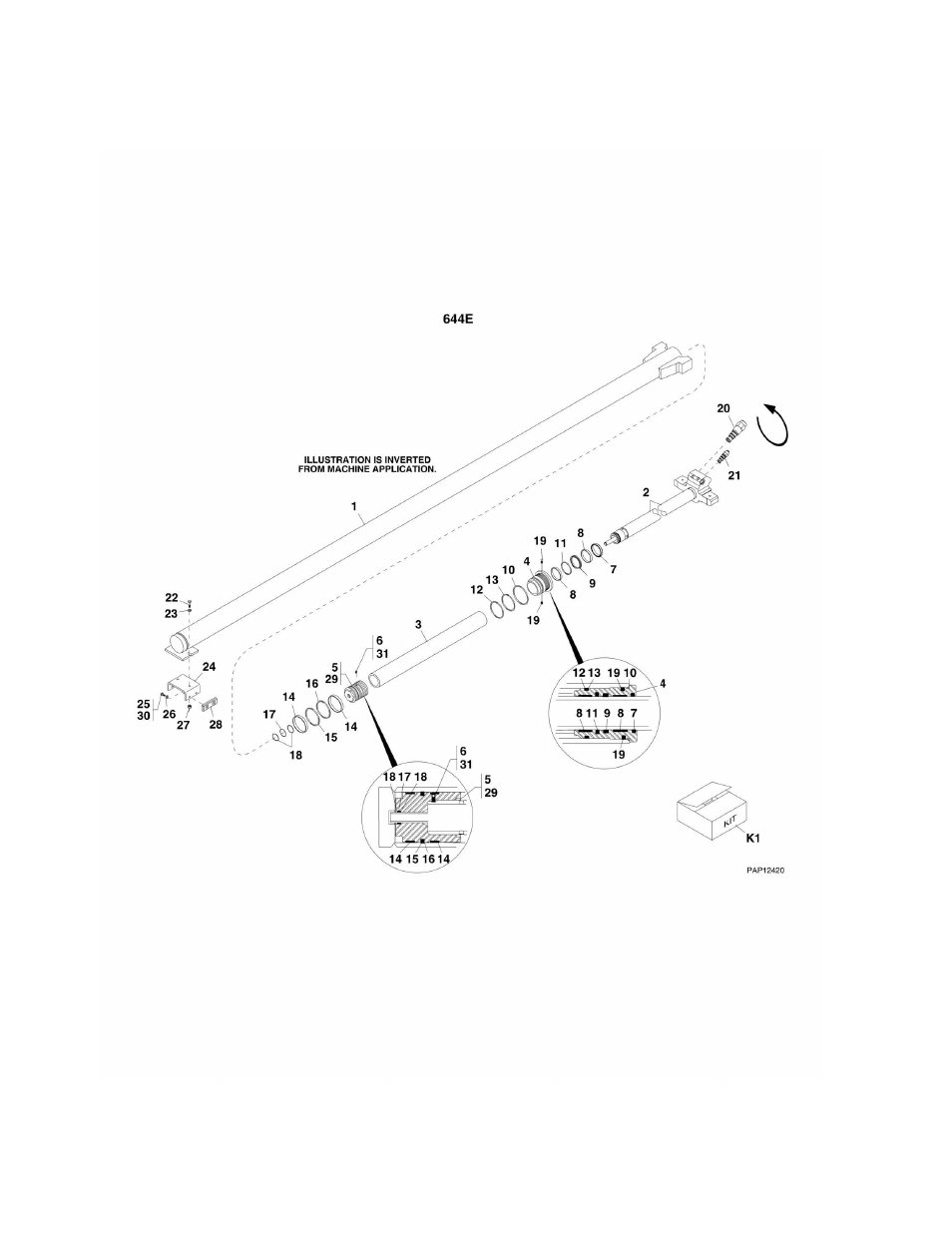

FIGURE 9-2. EXTEND/RETRACT CYLINDER (644E SN 0160005784 to Present, Including 0160004236

and 0160004237)
