SECTION 8 - HYDRAULIC CIRCUITS

406

644E-42,944E-42

8990462

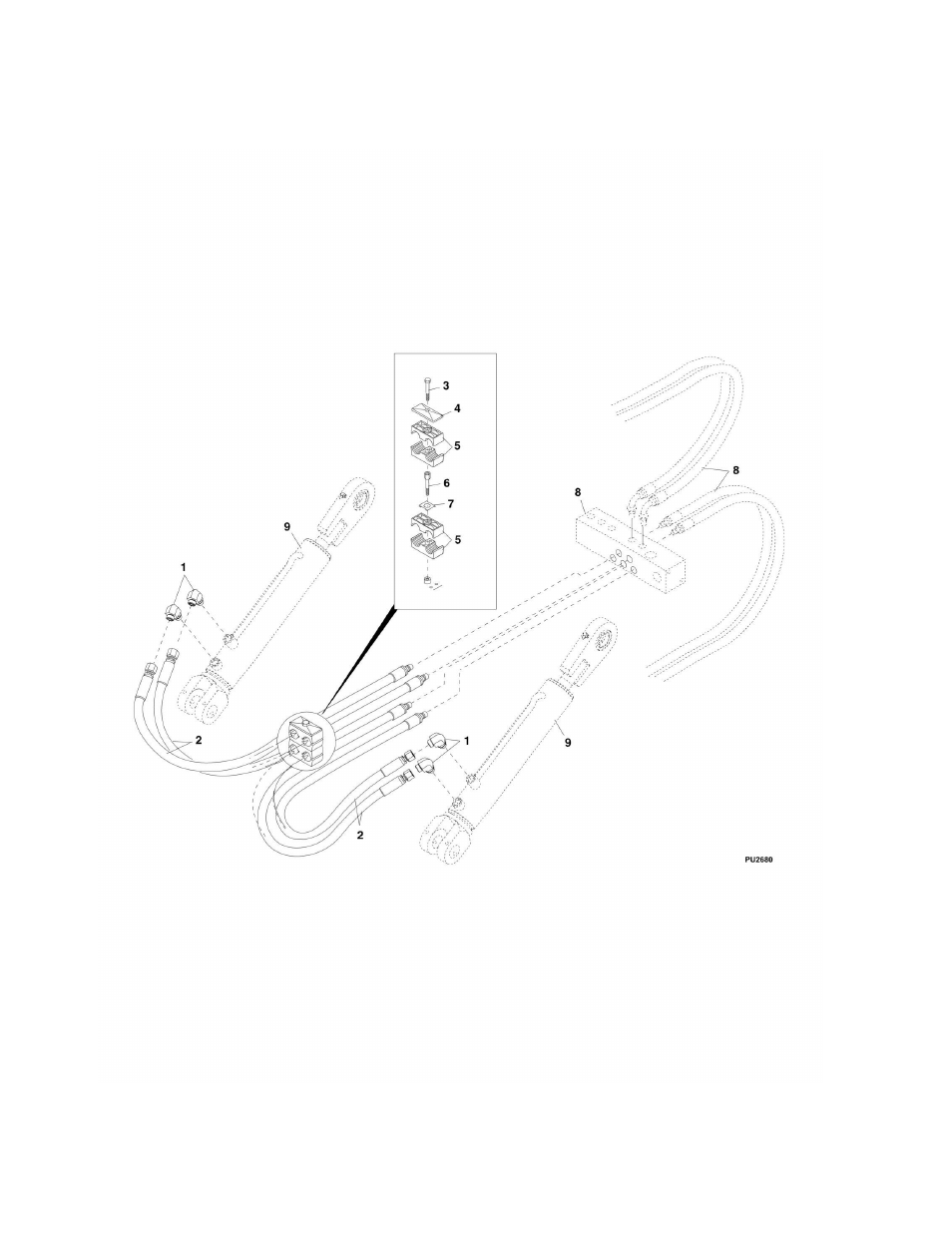

FIGURE 8-13. TILT COMPENSATION CYLINDER (644E SN 0160003604 to Present; 944E SN

0160003602 to Present)
