7.1.4 [Ethernet] Setup Screen
Press the [Ethernet] tab to set up the Ethernet parameters. These parameters should be set up to
match your host computer.

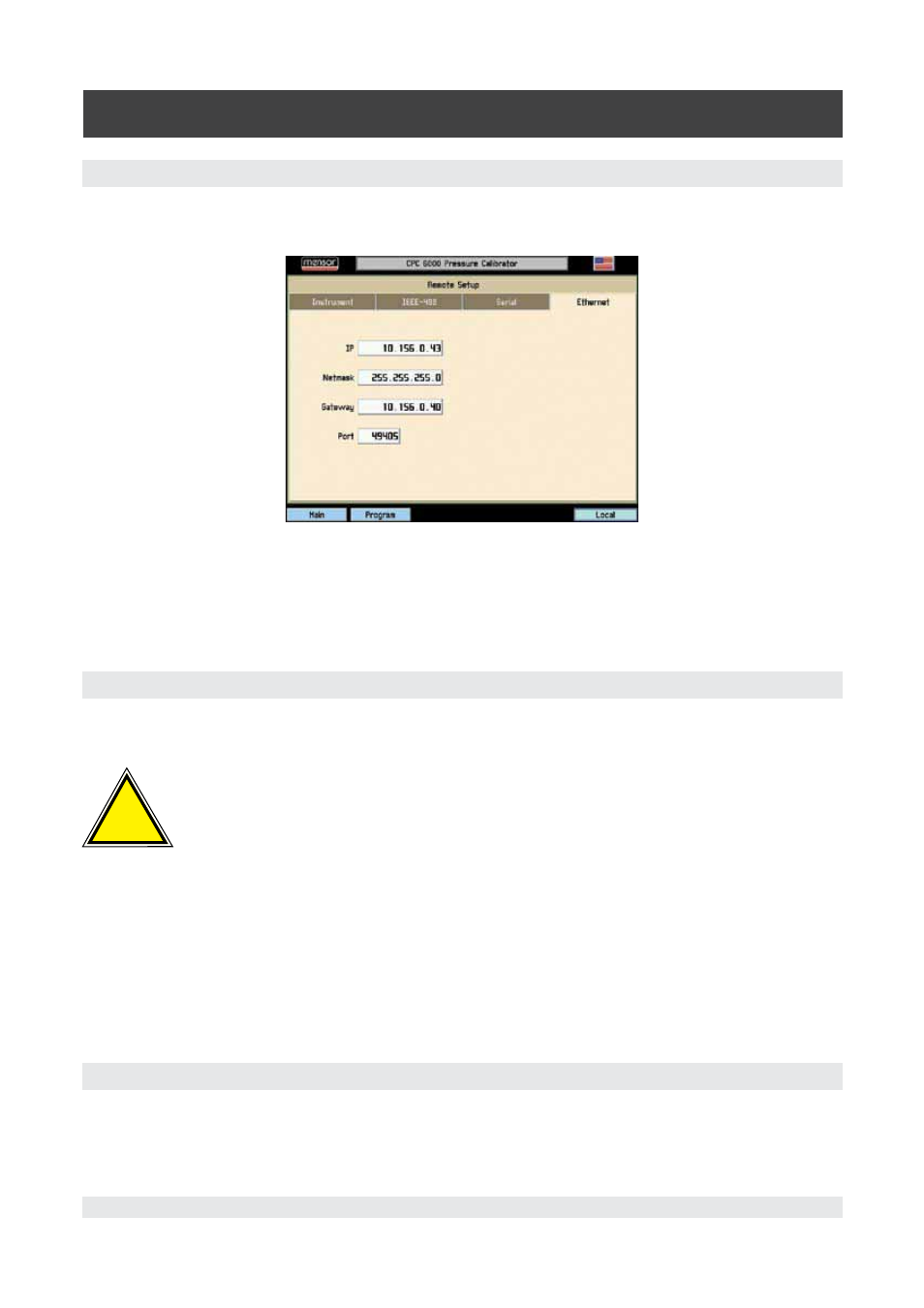

Figure 7.1.4 - [Ethernet] Setup Screen
When the correct values have been selected for all four parameters simply touch any of the keys
across the top or the bottom of the screen or the [X] key on the upper right of the window to move on
to another function. Emulation modes are also available for legacy instrument replacement. Contact
Mensor for availability.
.
7.2 Ethernet Communication
The ethernet communication port allows the CPC 6000 to communicate with computers using
10/100Based-T specifications.
!
Caution
CAUTION: Please consult your Computer Resources Department prior to connect-
ing this instrument to your network to verify there are no conflicts with existing IP
addresses.
Ethernet communications are transmitted over a standard RJ-45 cable.
Connecting directly to a PC requires a crossover ethernet cable. Hub connection requires a straight
ethernet cable.
Prior to first time use of ethernet communication, the four parameters, IP, Netmask, Gateway, and Port
must be setup. These are set up in the Remote setup screen.
7.3 IEEE-488 (GPIB)
The manufacturer of the host IEEE-488 interface board provides software to allow communication be-
tween the board and various programming languages. An interactive program for debugging is usually
provided as well. Refer to the board manufacturer’s documentation for more information.
