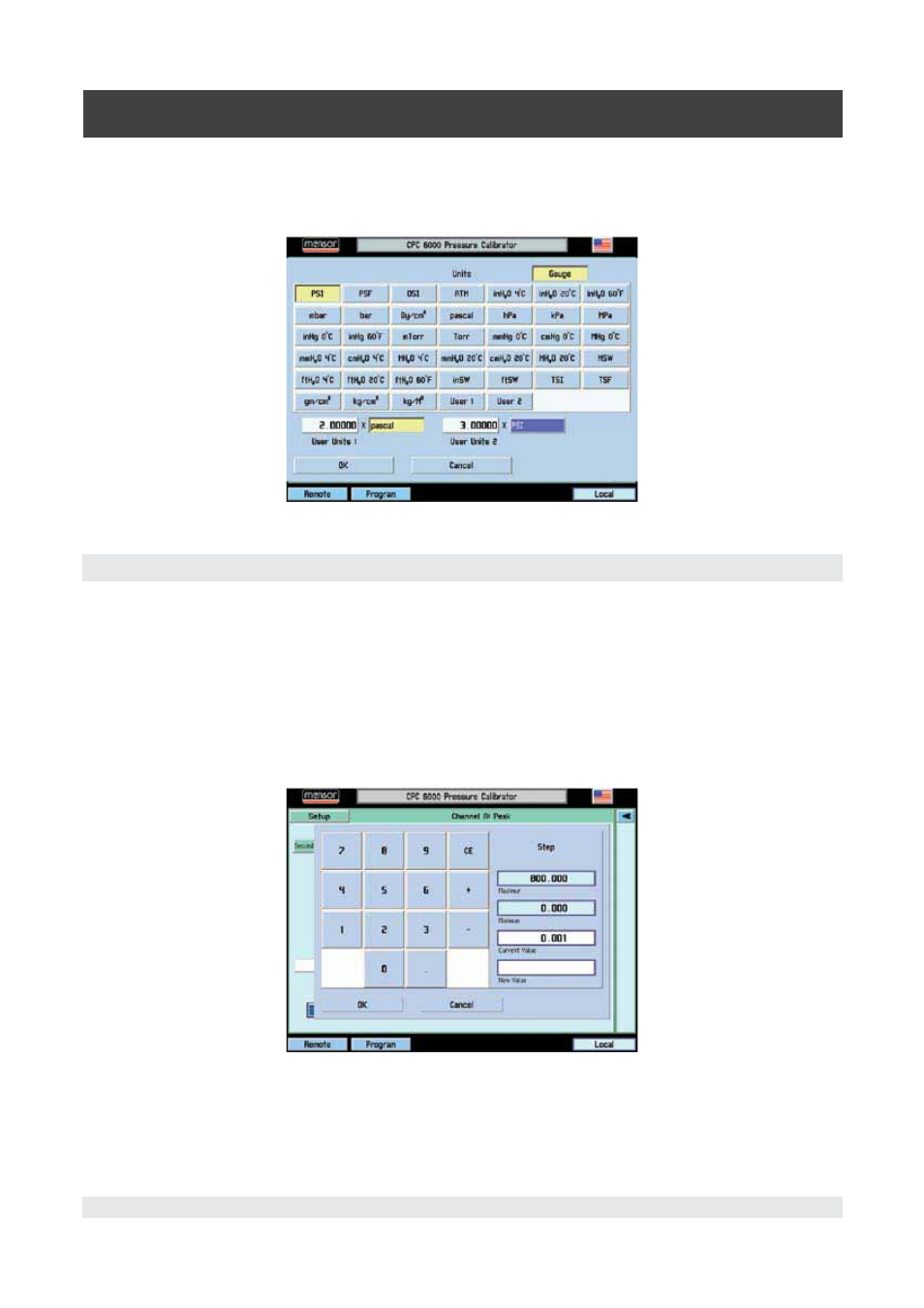

The current units are highlighted by a yellow background. Touch any other [Pressure Units] key, and
press [OK] to enable change and return to previous operation screen. All of the displayed pressure
values will have changed to correspond to the newly selected units at the correct conversion ratio.
Figure 6.3.6 - Units Selection Window
6.3.7 [Step Value] Key
On the left side of the screen as seen in Figure 6.3A is the [Step Value] key. The step value displayed
is 0.001. This is the incremental pressure added to or subtracted from the setpoint value each time a
[
›@or [š] key is used on the main screen. To change the step value touch the [Step Value] key and the
step entry pad as shown in Figure 6.3.7 will appear.
This number pad shows the maximum and minimum values applicable to the active turndown. There is
also a Current Value and a New Value window. Enter a new step number and then press [OK], or else
touch [Cancel] to return to the operate screen without changing the step value. Press CE to back-
space.
Figure 6.3.7 - Step Value Window (Single Channel)
