Automated Pressure Calibrator
CPC 6000
30
Mensor/WIKA Operating Instructions - CPC 6000

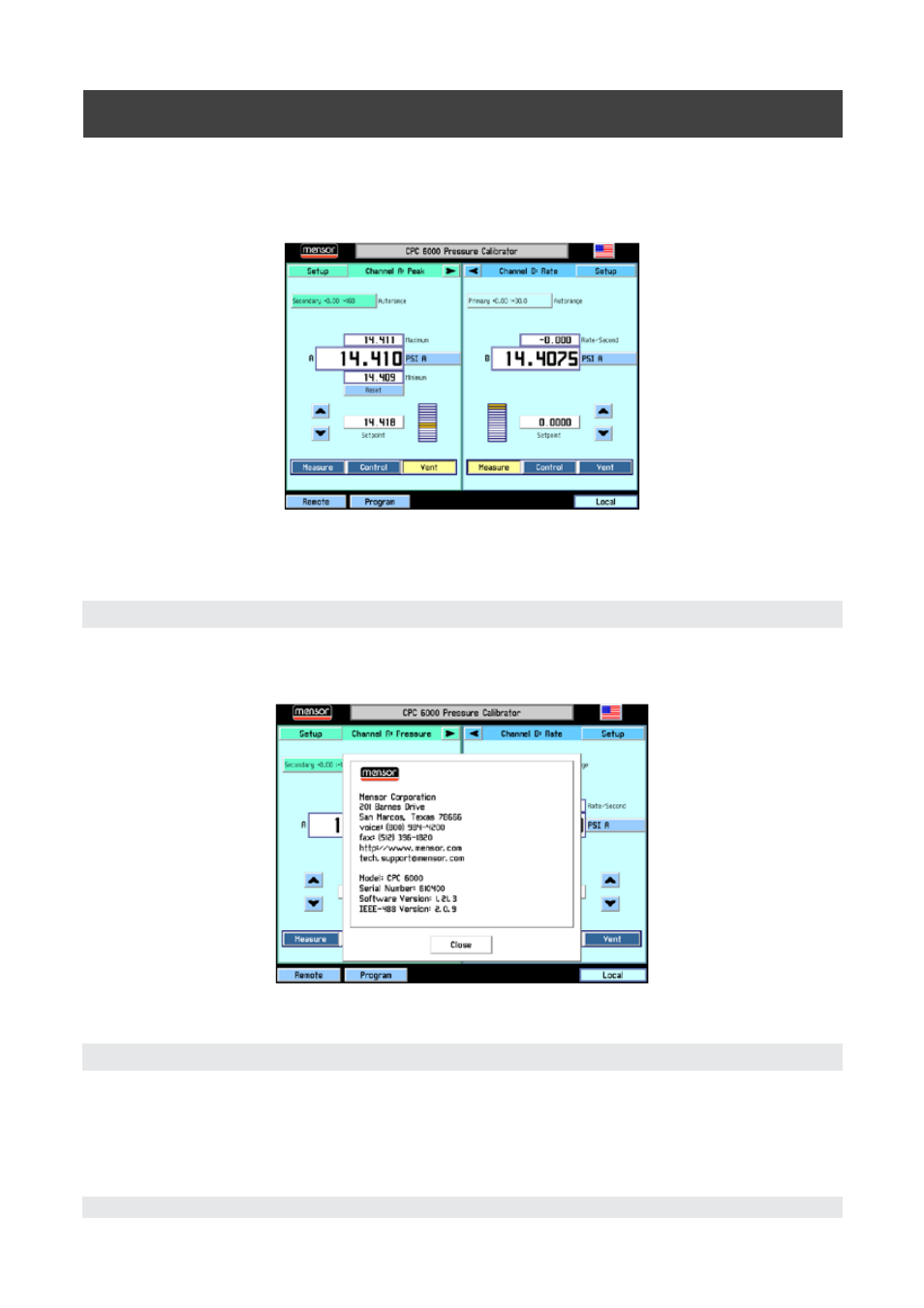

Figure 6.3B is an example of a typical display after initialization. To expand the selected channel to a
single channel operation screen as shown in Figure 6.3A, press the [>] key. The [Standby] key appears
on the screen when expanded. To expand or return to a dual channel operation screen press the [<] or
[>] key.
Figure 6.3B - Typical Operation Screen
All of the CPC 6000 screen features are described in more detail in the rest of this section.
6.3.1 [Mensor] Logo
The logo is also a key. Touch it to display a pop-up window as shown in Figure 6.3.1 listing various
Mensor contact addresses and CPC 6000 serial number and version information. Touch [Close] to
close the window.
Figure 6.3.1 Mensor Address/Contact Information Window
6.3.2 [Flag] Symbol
The [USA Flag] on the header is a key that establishes the national language used in all of the text and
number formats in all displays. Press the [Flag] for a pop-up window displaying several national flags
(Figure 6.3.2). Touch any one of these [Flags] to effect the language change.
