VS-3232DN - Defining the VS-3232DN 32x32 Digital Matrix Switcher 5
4 Defining the VS-3232DN 32x32 Digital Matrix
Switcher
Figure 1 , Figure 2 and Figure 3 define the VS-3232DN.

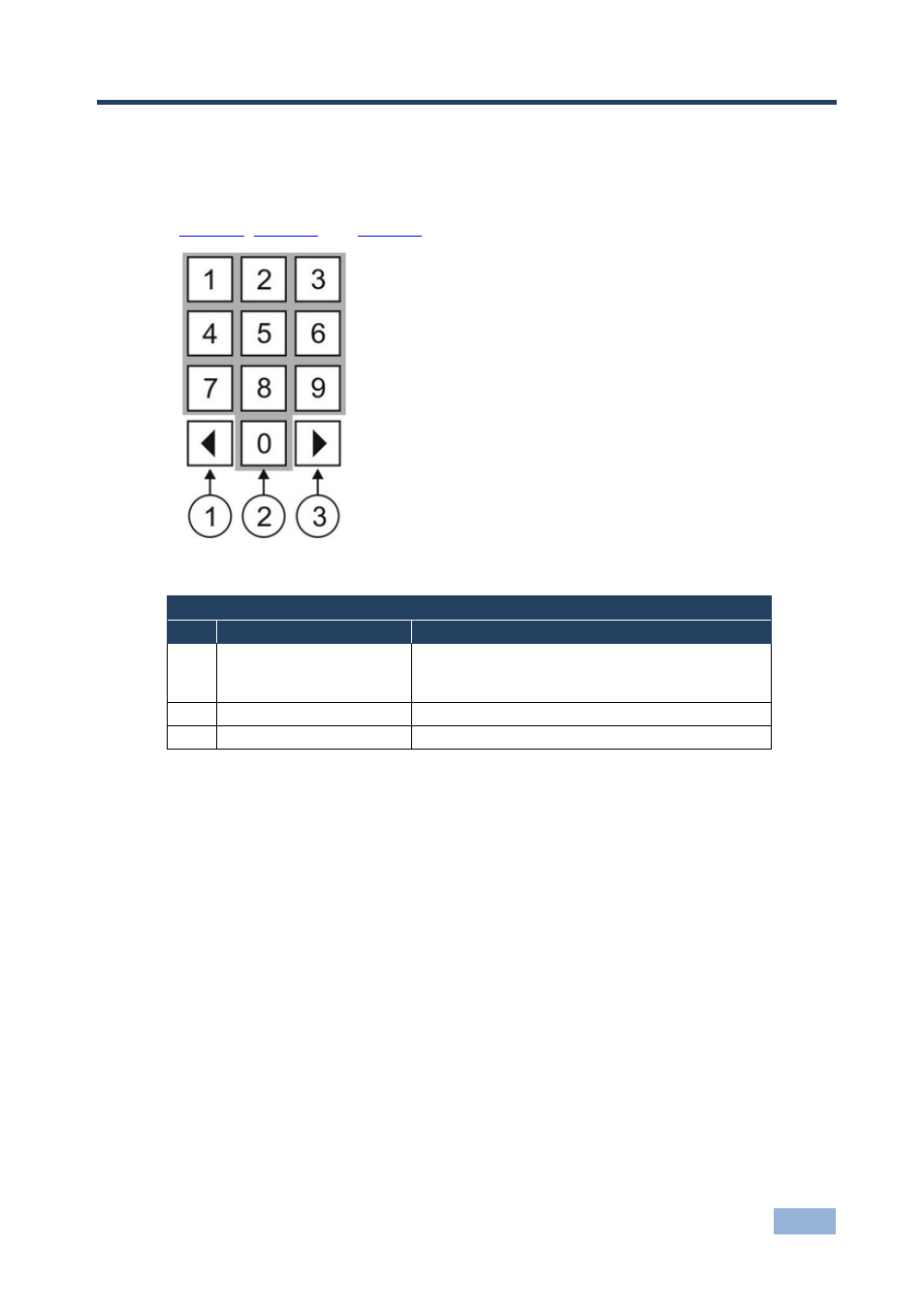

Figure 1: VS-3232DN Front Panel Numeric Keypad
Front Panel Numeric Keypad Labels
# Feature Function
1
◄ (Backwards)
Press to shift the sliding window to the right (The
LCD display is large enough to show only 13
cross-points out of a total of 32)
2 1, 2, 3, 4, 5, 6, 7, 8, 9, 0 Numeric keypad, 1 to 0
3
► (Forward)
Press to shift the sliding window to the left
