14 VS-3232DN - Connecting the VS-3232DN
6.1.1 EDID Numbering Examples
The table below is based on the port numbering shown in Figure . 5 Figure lists
EDID configuration requests and the results.
8
EDID Request EDID Sent
From OUT 11 Blank (256 bytes of 0xFF)
From IN 13 None (error message displayed)
6.2 Serial Data on DGKat Plus RS-232 Cards
Serial data present on the RS-232 port of a DGKat input card is not transmitted via
the switcher. This data is transmitted over the TP cable of the same input card
(see Figure 6 ).
Serial data present on the RS-232 port of a DGKat output card are not transmitted
via the switcher. This data are transmitted over the TP cable of the same output
card.

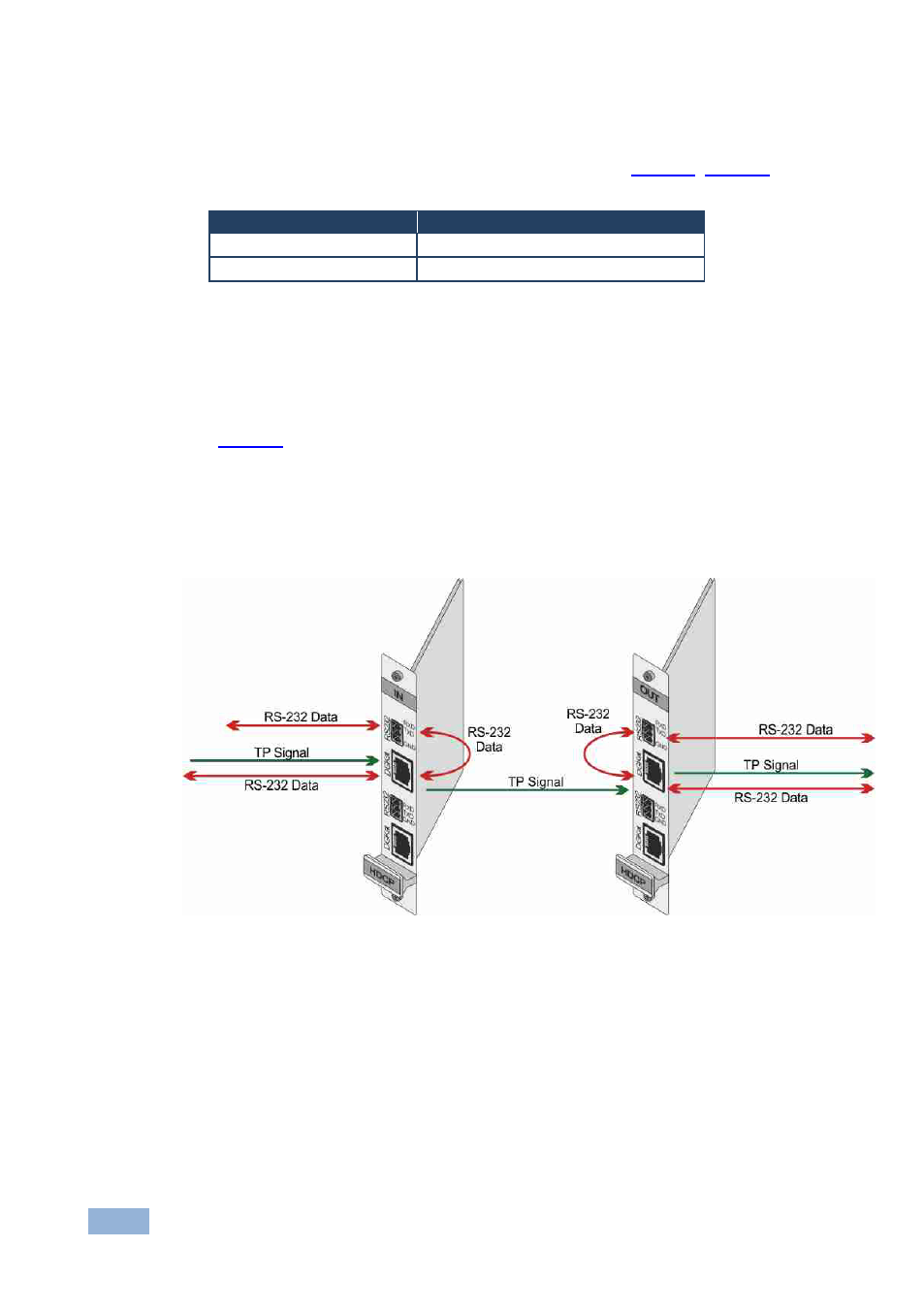

Figure 6: DGKat Card Serial Data Transmission
6.3 Connecting to the VS-3232DN via RS-232
You can connect to the VS-3232DN via an RS-232 connection using, for example,
a PC. Note that a null-modem adapter/connection is not required.
Note that some early devices require a null modem.
