VS-3232DN - Hardware Installation Instructions 51
9. Power on the VS-3232DN and follow the procedure to configure the new
card (see Section 9
10. Power on the peripheral devices.
).
11.2 Power Supply Installation
The VS-3232DN is supplied with a single power supply. You can install a second
power supply to provide redundancy.

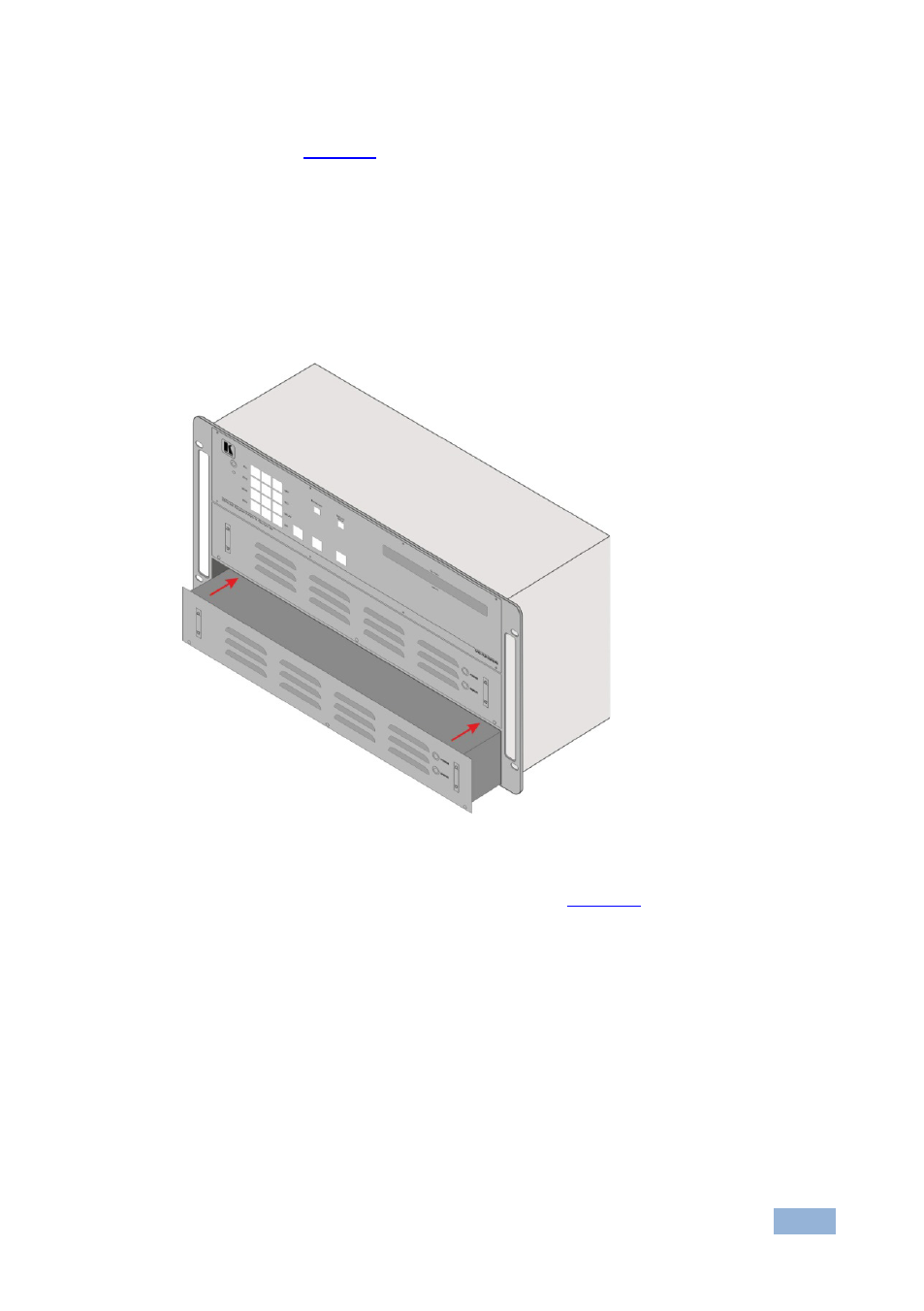

Figure 14: Second Power Supply Installation
To install a second power supply as shown in Figure 12 :
1. Remove the new power supply from its shipping carton and anti-static bag.
2. Power down the chassis.
3. Remove the blank panel covering the second power supply location.
4. Align the new power supply with the rails on the bottom of the slot.
5. Slide the power supply into the slot until it makes contact with the rear
connector, insuring that it remains straight.
