6 Connecting the VS-3232DN
The configuration of DVI input/output cards shown in Figure is a sample
representation and different I/O cards may be mixed as required (for limitations,
see
4
page 12 ). Exactly the same principles apply to installations using other card
types.
Always switch off the power to all devices before connecting them to
your VS-3232DN. After connecting your VS-3232DN, connect its
power and then switch on the power to each device.

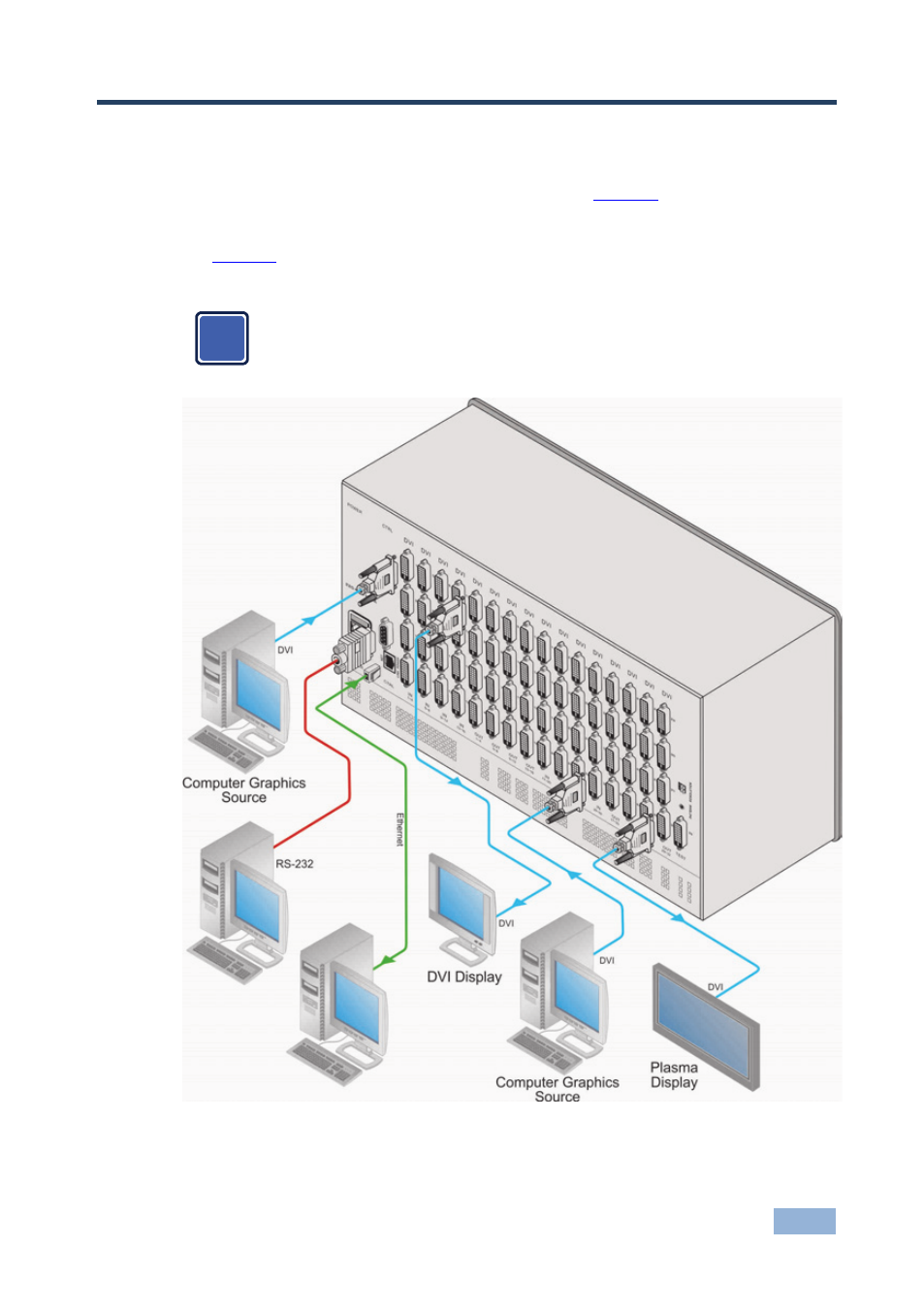

Figure 4: Connecting the VS-3232DN 32x32 Digital Matrix Switcher
