VS-3232DN - Connecting the VS-3232DN

13

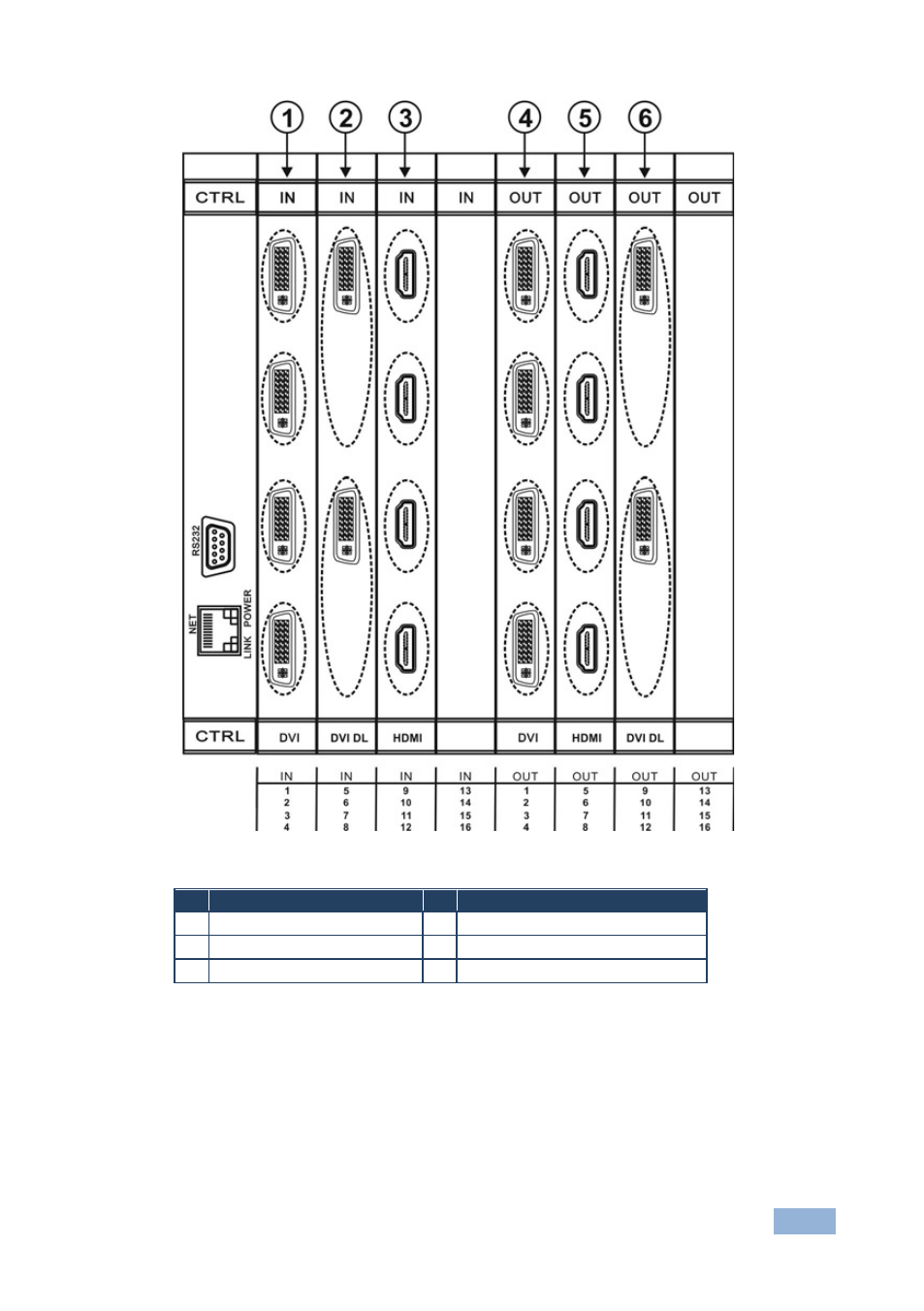

Figure 5: Sample Port Numbering

#

Port Number

#

Port Number

1

IN 1, IN 2, IN 3, IN 4

4

OUT 1, OUT 2, OUT 3, OUT 4

2

IN 5, IN 6

5

OUT 5, OUT 6, OUT 7, OUT 8

3

IN 9, IN 10, IN 11, IN 12

6

OUT 9, OUT 10

Note: There is no IN 7, IN 8, OUT 11 or OUT 12 because these slots contain DVI

dual link cards.
