June 2004 TargetPro™ User's Manual

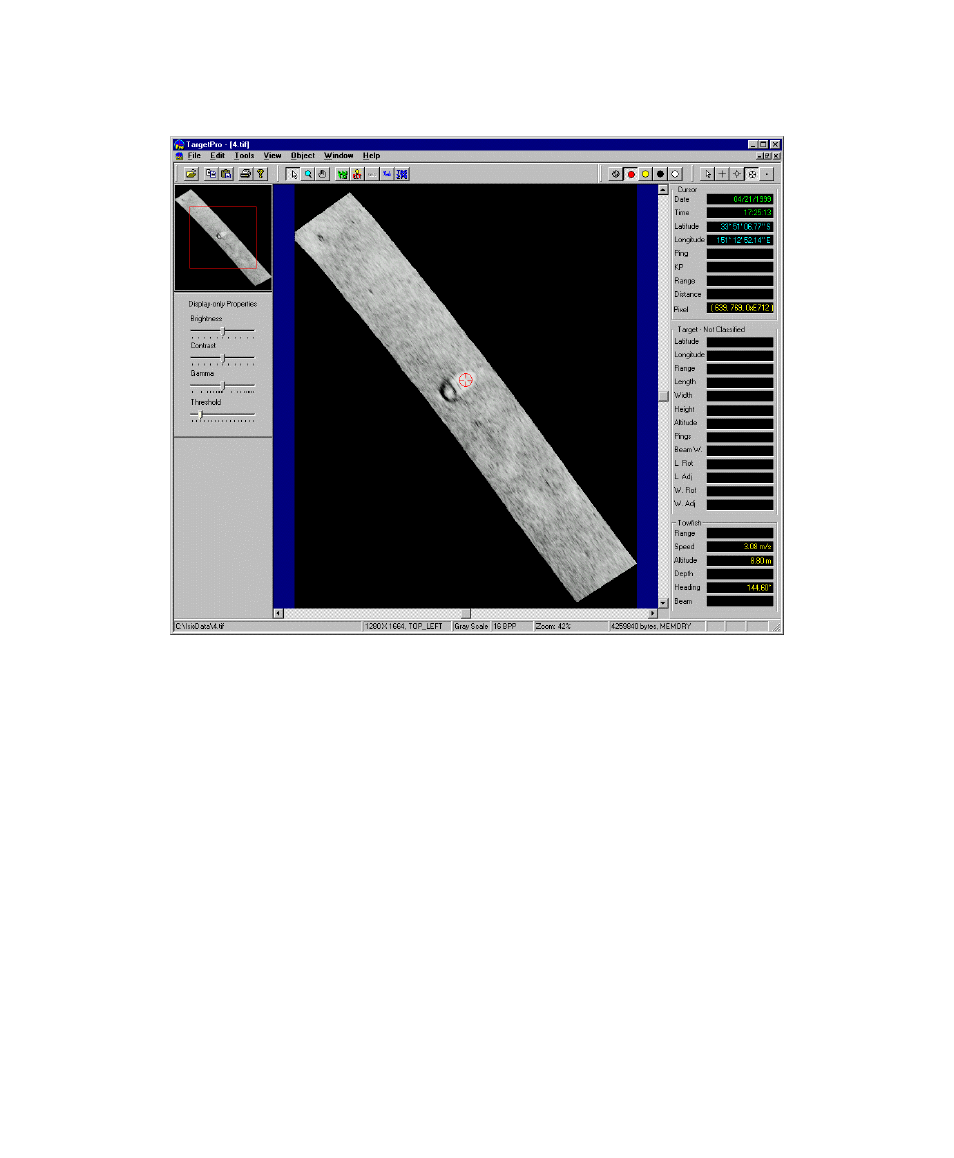

Figure 24. Example of a geocorrected image as a TIFF file
Figure 24 shows a geocorrected rendition of the CON image displayed in Figure
23. The image in Figure 24 has been re-oriented with the Geocorrecting function
so that north points up. Furthermore, note that the main object in the figure no
longer appears as squashed as it did in the first example; it is now less distorted
and more closely resembles the actual object on the seafloor. Finally, note that
the geocorrected image is a TIFF file. The CON file from which it was derived is
unchanged.
4.4 Setting and Viewing Target Identification
4.4.1 Setting a Contact Number
You can have TargetPro automatically increment your saved contacts at the
time they are saved, starting with a number you choose.
Chapter 4: Object Modification and Classification 47
