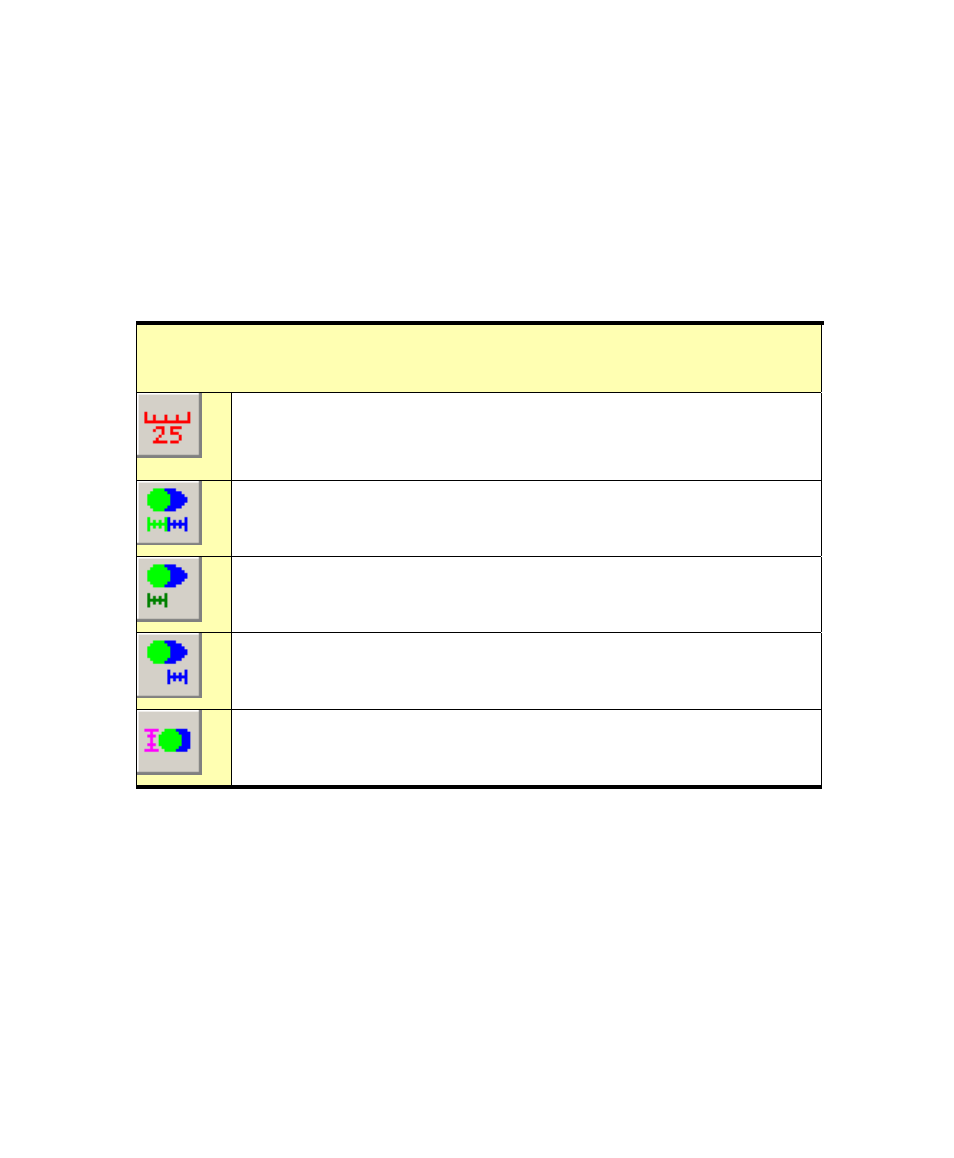

TABLE 5. Group Five: Measurement Pointer Icons
Note: The Measurement Tool (see Table 3, ‘Group Three: Image Management
Icons’) must first be selected before you can choose a measurement type. Right-
clicking in imagery reveals a menu of equivalents.
Measure Distance : When this measurement pointer type is selected,
you can draw a straight line in any direction across the image. The
length of that line is reported as a distance value in the Cursor Status
Panel
Object Echo-Shadow
: Use this measurement pointer tool to find the
height of an object in the imagery.
Object Length : Use this measurement pointer tool to find the along-
track distance of an object in the imagery.
Object Echo
: Use this measurement pointer tool to find the across-
track distance of an object in the imagery.
Object Shadow : Use this measurement pointer tool to find the
across-track distance of an object’s shadow in the imagery.
2.5 Pan and Display Only Properties Windows
The two leftmost child windows, the Pan window and the Display-Only Properties
window, control image panning and three basic image properties. You can move
these windows around and reposition them (“redocking” windows) to suit your
own needs – even outside the borders of the TargetPro application window, if
you so desire. See ‘Understanding TargetPro’s Windows’ for the repositioning
methods and sample screens.
Chapter 2: Using TargetPro 19
