June 2004 TargetPro™ User's Manual
3.2 Width
Width is the across-track ground distance between the start
and end points of a drawn line. The Measurement Tool’s
Object Echo function (shown here at the side of the page is
sued to draw the line.
Two secondary aspects of contact measurement are associated with Width:
Width Adjust and Width Rotation. Fields for these secondary aspects are
found in TargetPro’s Cursor Status Area.
3.2.1 Width Adjust
(W. Adj) is the difference between the length of the line and the across-track
distance (see below).

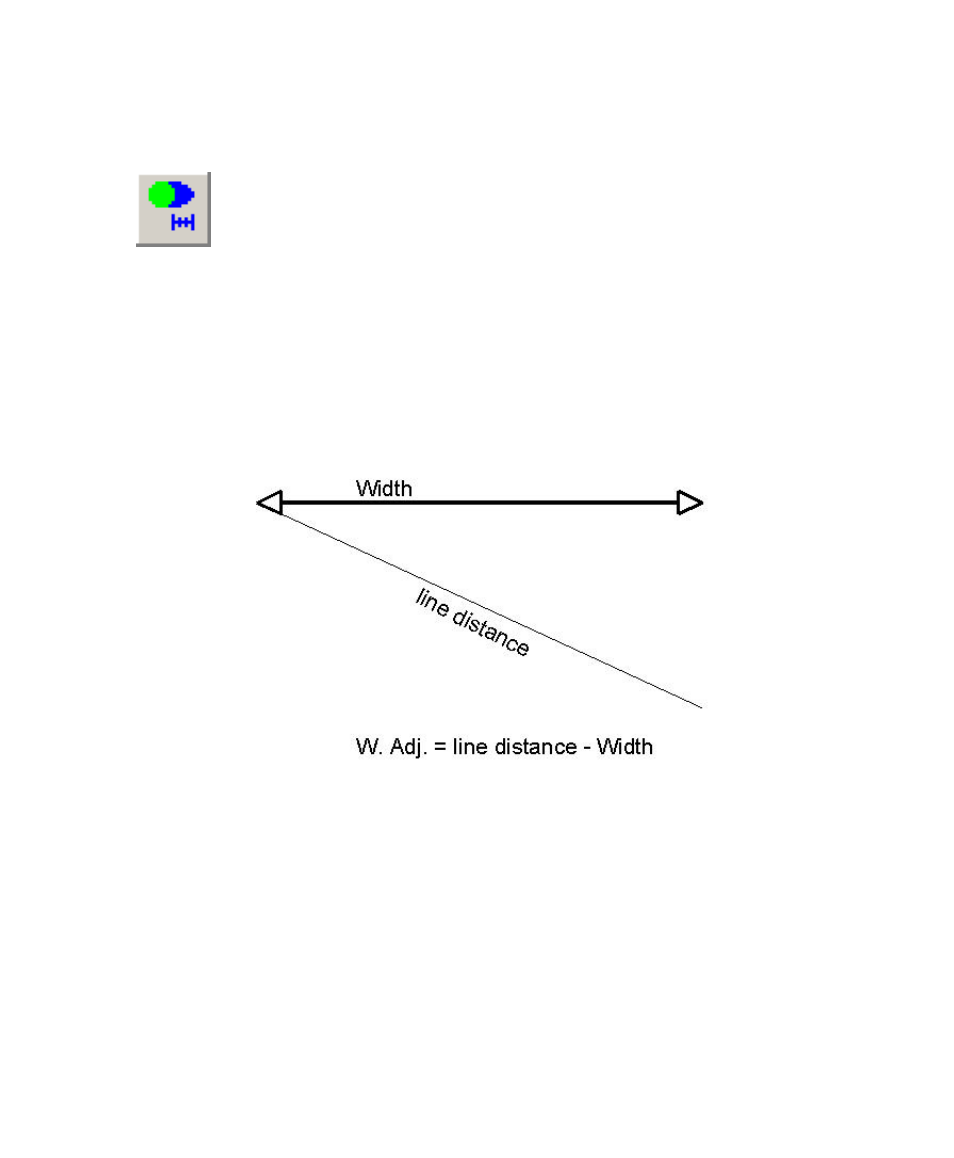

Figure 10. Width Adjust derived from line distance and width
3.2.2 Width Rotation
(W.Rot.) is the rotation angle of the width line relative to a horizontal line.
Chapter 3: Measuring a Contact 25
