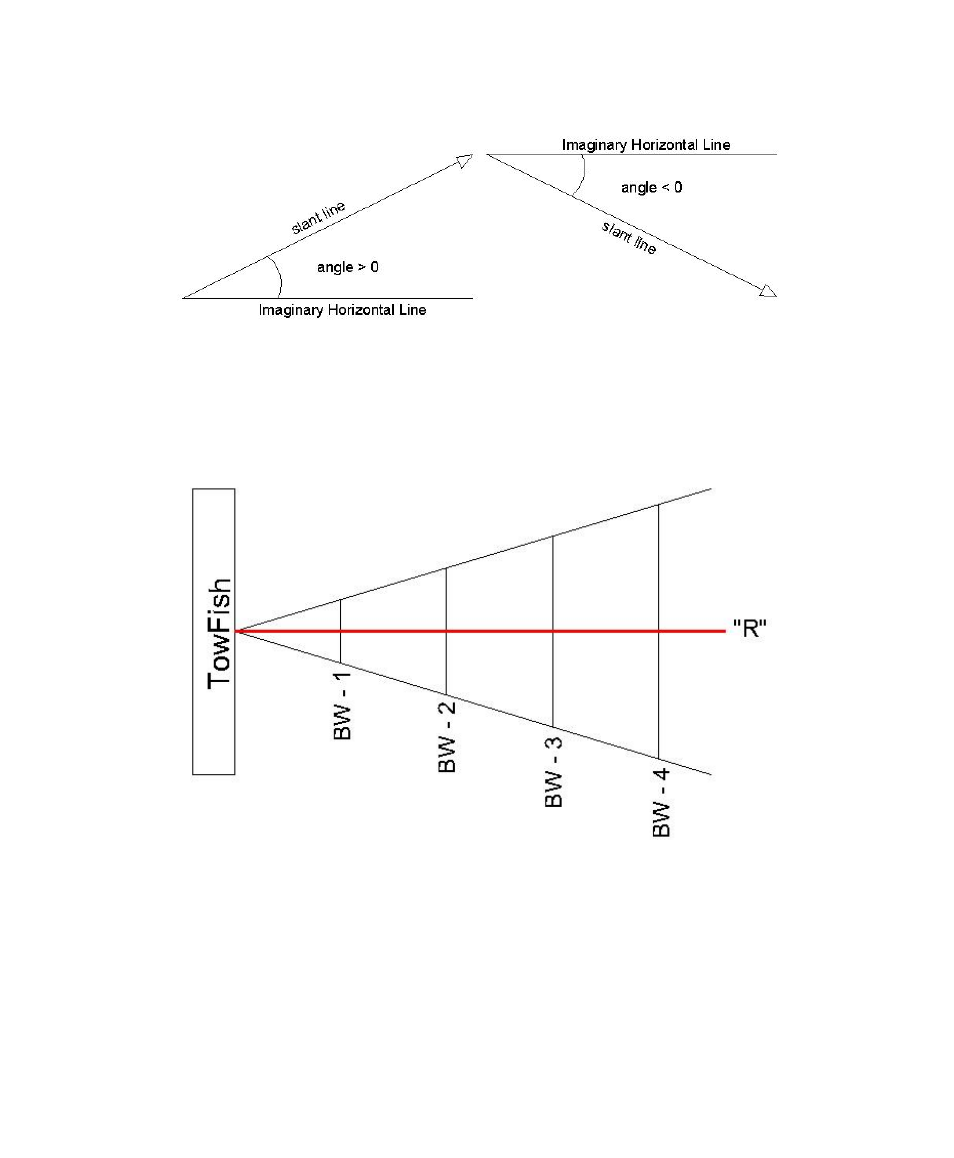

Figure 8. Length Rotation angle sign conventions
3.1.3 Beam Width
(Beam W.) is the width of the beam in ground distance at a specific
range. Figure 9 demonstrates the concept.
Figure 9. Top view of four beam widths at four arbitrary ranges
3.1.4 Number of Pings
(Pings) Number of pings in the Cursor Status Area) traversed by the drawn
line.
