Triton TargetPro - Manual (Page 57)

June 2004 TargetPro™ User's Manual

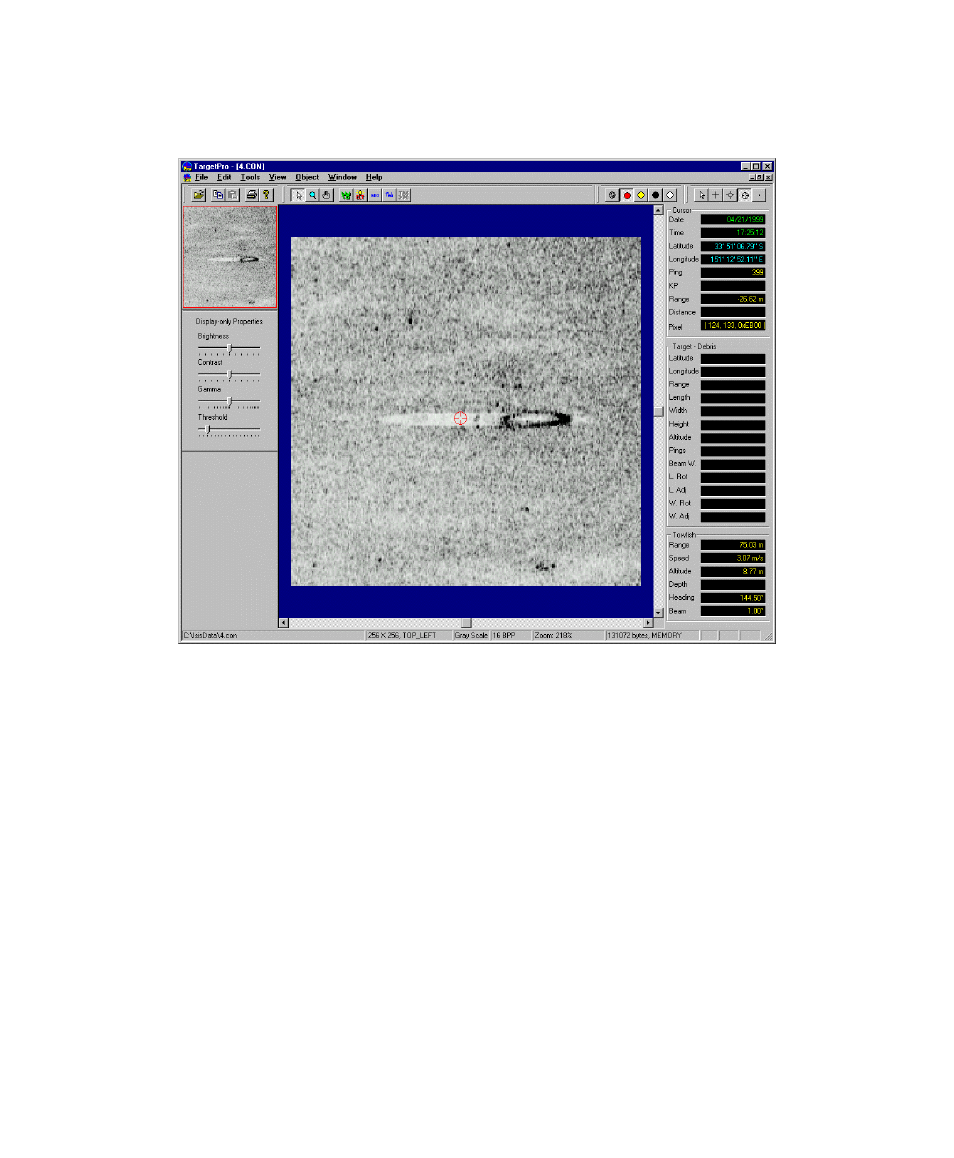

Figure 23. Example of a distorted image before geocorrection
In Figure 23, the image appears greatly squashed in the vertical domain (top to
bottom). As indicated by the Heading value in the Towfish portion of the Cursor
Status window, the direction of the survey proceeded in a southeasterly direction
(approximately 144 degrees). For the purposes of the displayed image, the
heading points straight up and down, so that the image runs vertically through
the window.
