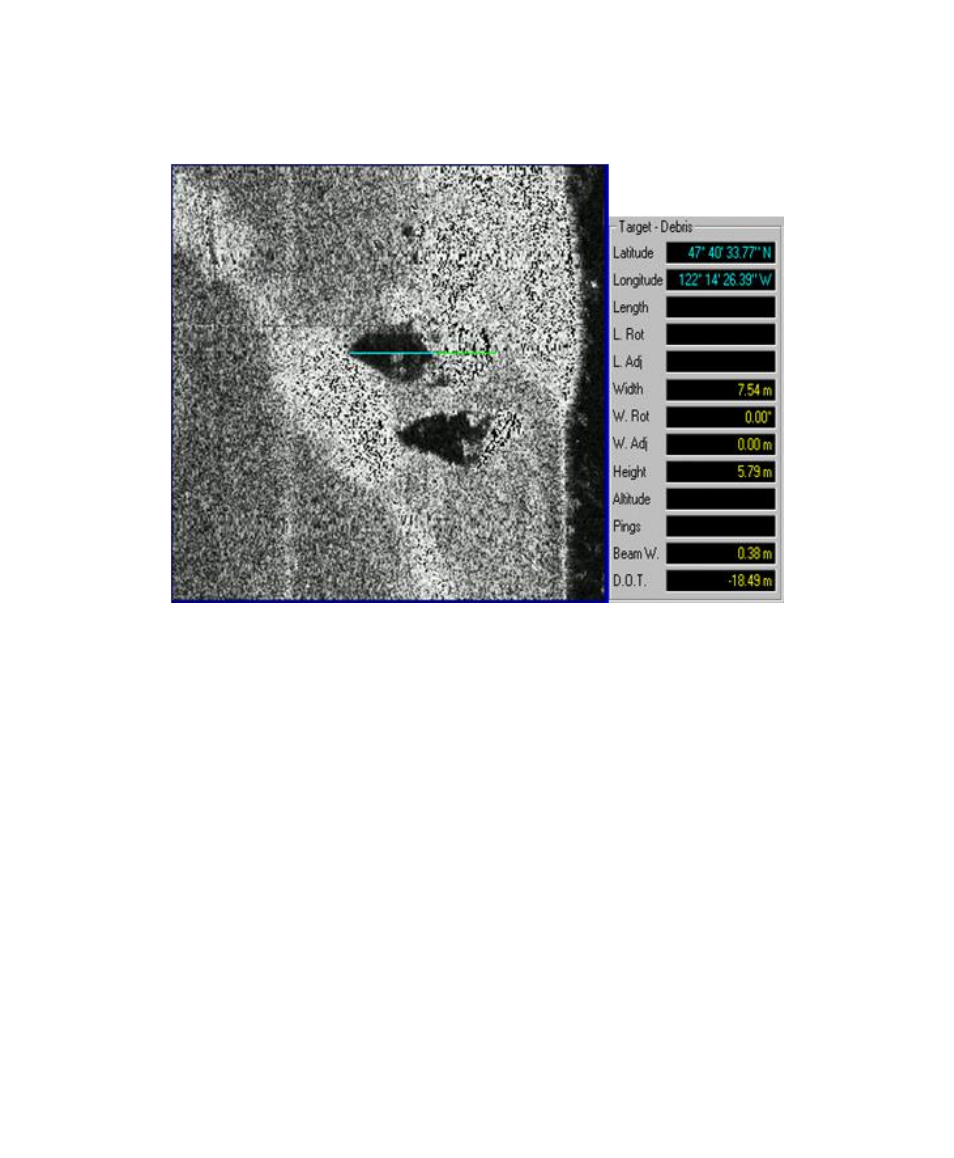

Figure 13. Measure Object Echo-Shadow (Tied) Example with Data
In the example, the green line is the object’s width (reported as 9.15m in the
Width field), and the blue line is the object’s shadow (4.42m in the Height
field).
3.4.3 Measure Object Length
Use this mensuration function to measure a contact’s length.
To measure an object’s length, do the following:
1. Activate the Measurement Tool (choose Tools
→Measure from the main
menu or the Measurement Tool icon from the taskbar of icons).
2. Choose the Measure Object Length method of mensuration.
3. Drag your pointer over the contact in the along-track direction. The
system draws a magenta line.
4. When you have finished measuring, left-click once to end the line.
