9

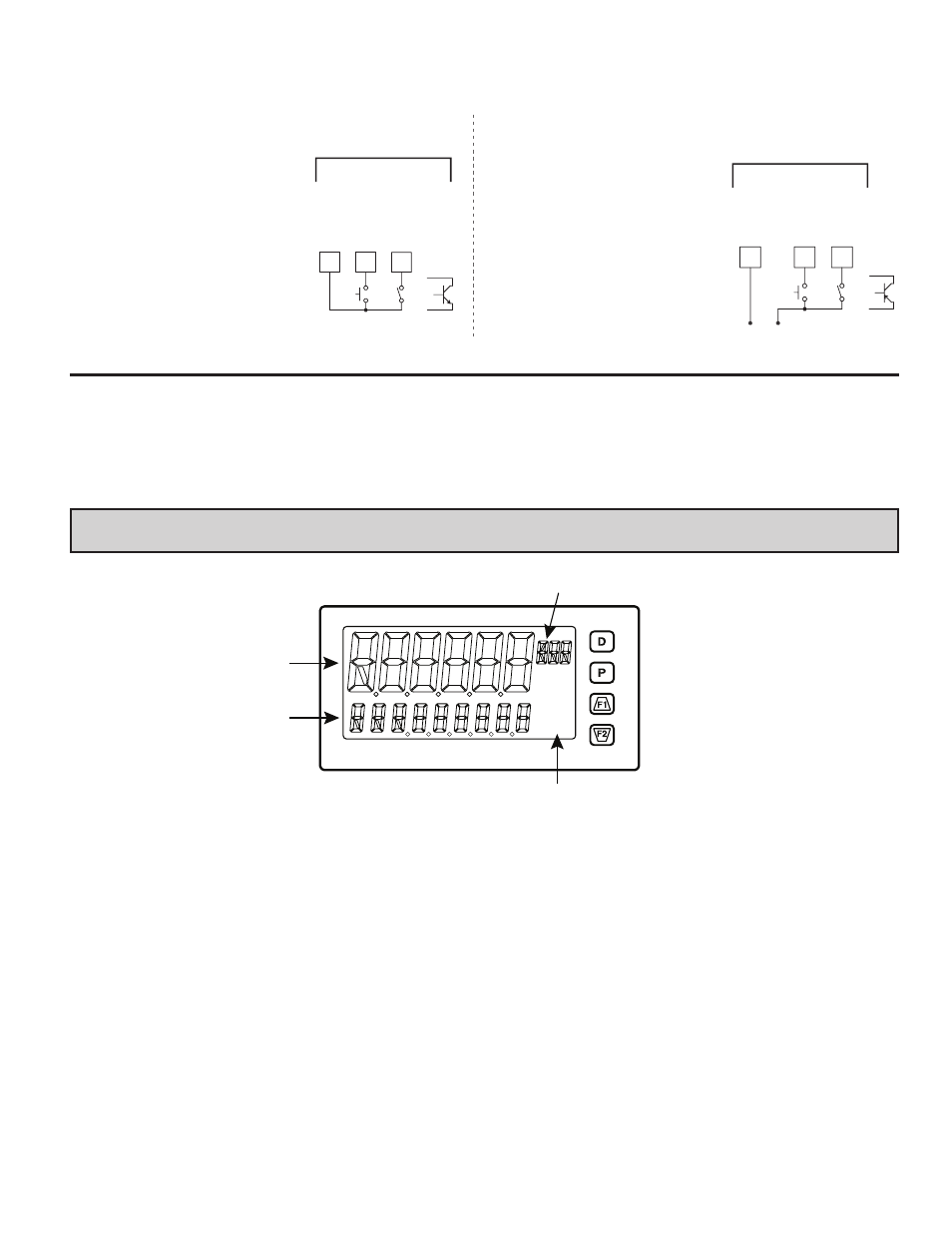

4.4 USER INPUT WIRING
If not using User Inputs, then skip this section. Only the appropriate User Input terminal has to be wired.
Sourcing Logic (USrACt Hi)
When the USrACt parameter is programmed
to Hi, the user inputs of the meter are
internally pulled down to 0 V with 20 KW
resistance. The input is active when a
voltage greater than 2.2 VDC is applied.
USER COMM USER
2
USER
1
10 11 9
USER INPUTS
OR
Sinking Logic (USrACt Lo)
When the USrACt parameter is programmed
to Lo, the user inputs of the meter are
internally pulled up to +3.3 V with 20 KW
resistance. The input is active when it is
pulled low (<1.1 V).
10 9 11
+ -
(30V max.) SUPPLY
V
USER COM
M
USER
2
USER
1
USER INPUTS
OR
4.5 SETPOINT (ALARMS) WIRING
4.6 SERIAL COMMUNICATION WIRING
4.7 ANALOG OUTPUT WIRING 


See appropriate plug-in card bulletin for wiring details.
5.0 r
evieWing The
f
rOnT
b
uTTOns and
d
isplay
Programmable Units Display
Display Line 1
Display Line 2
1
3
2
4
Setpoint Annunciators
KEY DISPLAY MODE OPERATION PROGRAMMING MODE OPERATION
D Index Line 2 through enabled, max/min/input/total, readouts Quick exit to display mode
P Access the parameter and hidden display loops Access the programming parameter menus, store selected
parameter and index to next parameter
! Function key 1; hold for 3 seconds for second function 1* Increment selected parameter value
@ Function key 2; hold for 3 seconds for second function 2* Decrement selected parameter value
*Factory setting for F1 and F2 is no mode
The PAX2A display consists of a large, 6-digit upper display referred to as Line 1 and a smaller 9-digit lower display referred to as Line 2. Line 1
can be configured to show one of several values, including the main input reading, min, max, setpoints or total values. Line 2 can be used to display
several selectable values including; input value, min, max, total, list, setpoint values, and other values. For these values the mnemonics is shown in
the left most digits of Line 2. To the right of Line 1 is a Programmable Units Display. This display consists of 3 programmable digits that are user
defined as mnemonics for Line 1.
