User’s Guide ______________________________________________________________________
66 ___________________________________________________________________M210785EN-E
Devices View
In the Devices view, you can select the communications devices to be
included in your setup and assign them to connectors; see
1004-061

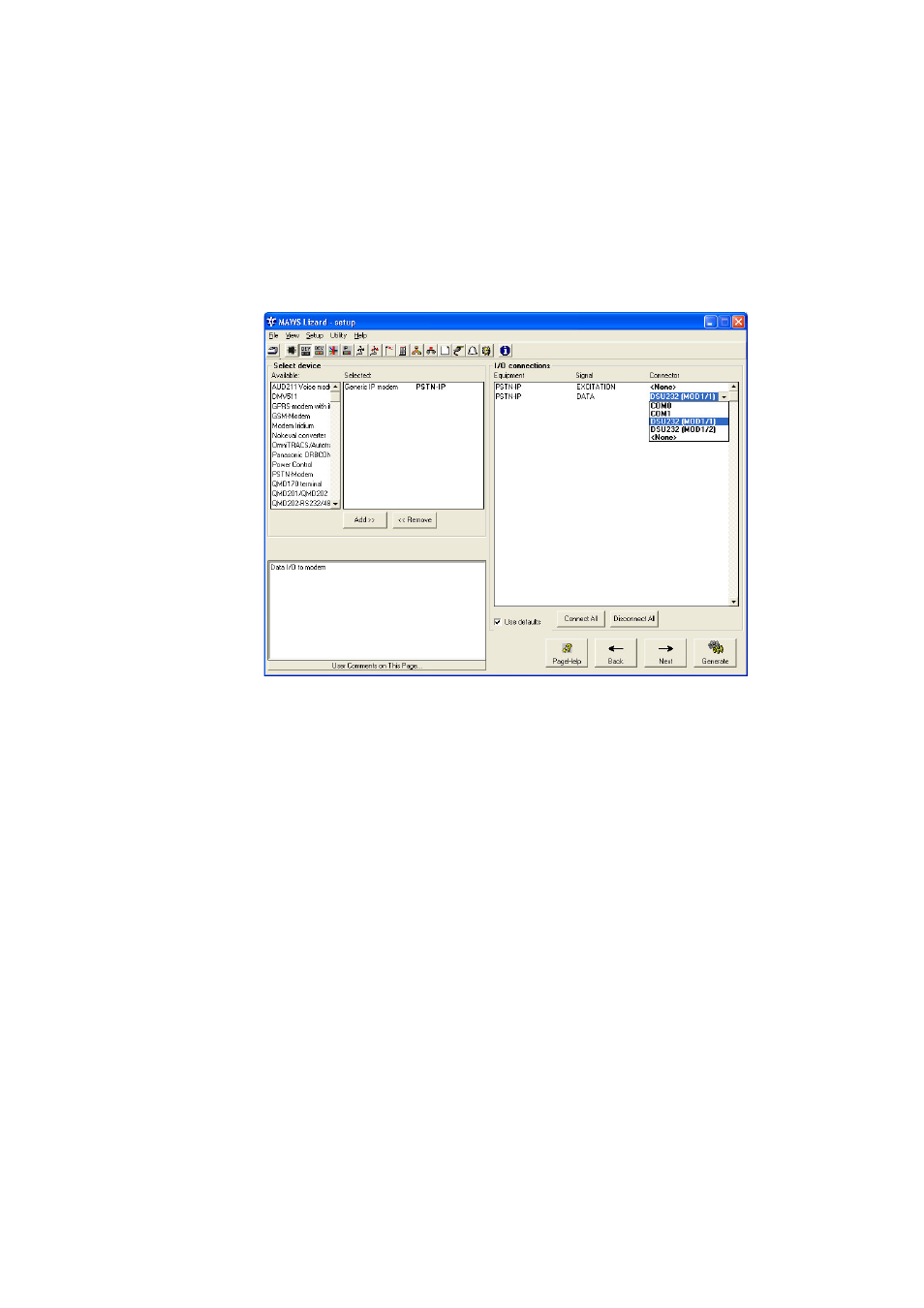

Figure 26
Devices View
Selecting Communication Devices
To select a communications device, proceed as follows:
1.
Select the device to be added in the Available list and click Add.
2.
In the I/O connections frame, select a connector for the device
data and, if required, excitation signals. Note that for devices
connected to optional hardware modules, you must first add the
modules to your setup in the Optional hardware view.
