Communications View
In the Communications view, you can define where and how reports
are sent; see
Figure 59 on page 120 .
Reports can be sent either automatically using timers, or they can be
polled, or both. One report can be sent to more than one communication
port, and one communication port can transmit more than one report.

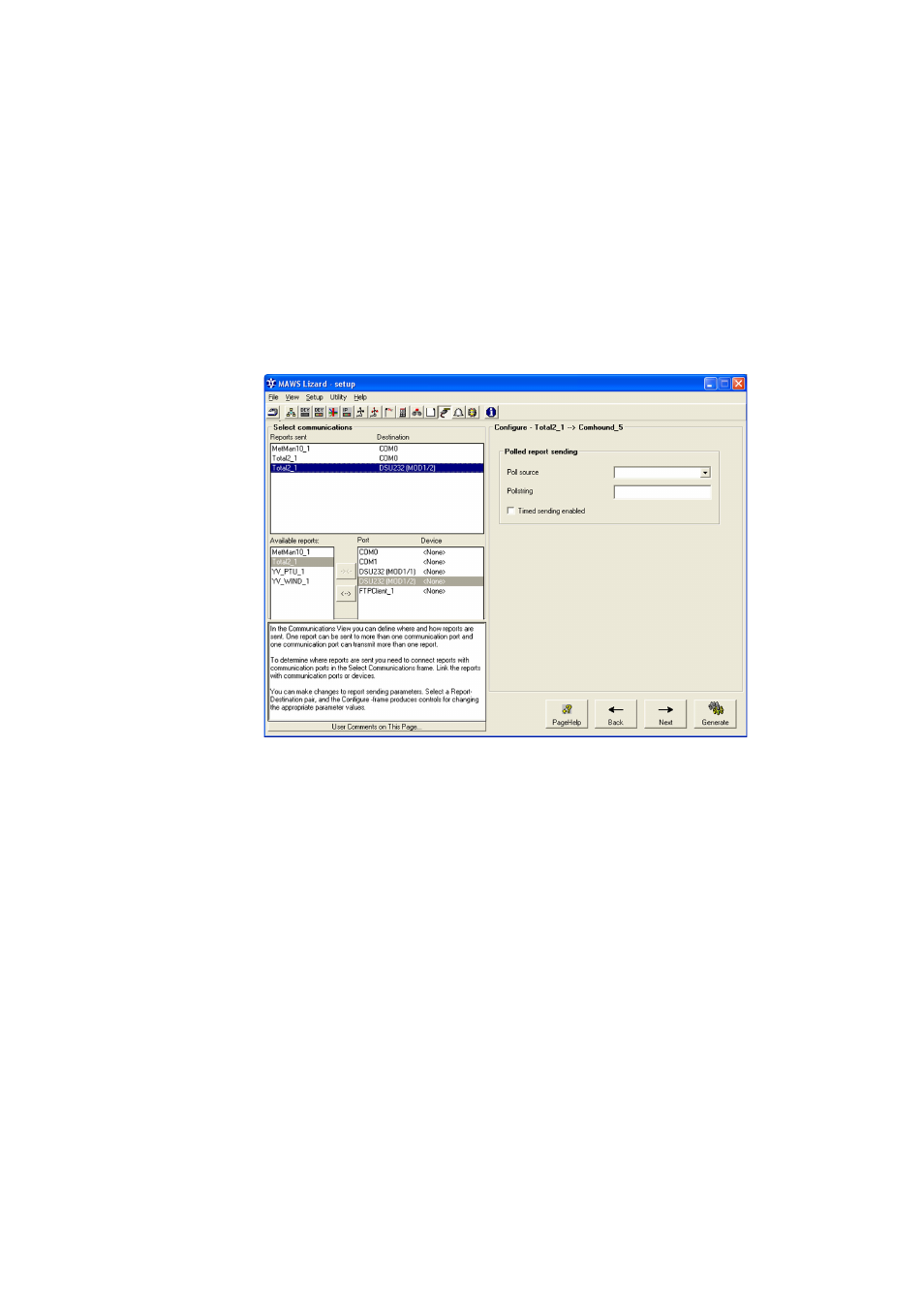

0711-074 Figure 59 Communications View
Connecting Reports to
Communication Ports
To determine where reports are sent, you need to connect reports to
communication ports in the Select Communications frame.
The Select Communications frame is divided into three list boxes.
When you first start setting up communications, the uppermost Reports
sent/Destination list box is empty. The Available reports list box
provides a list of all the created reports. The adjacent Port/Device list
box lists the different communication ports and the devices that were
connected to them in the Equipment and Devices view. This serves as
a reminder of which ports are already taken up and which are still
