Chapter 5 ________________________________________ Advanced Use of Lizard Setup Software
VAISALA______________________________________________________________________ 205
To calculate a CRC, proceed as follows. Note that this procedure is an
example of a typical case.
1.
Go to the Reports view as shown in
.
0711-125

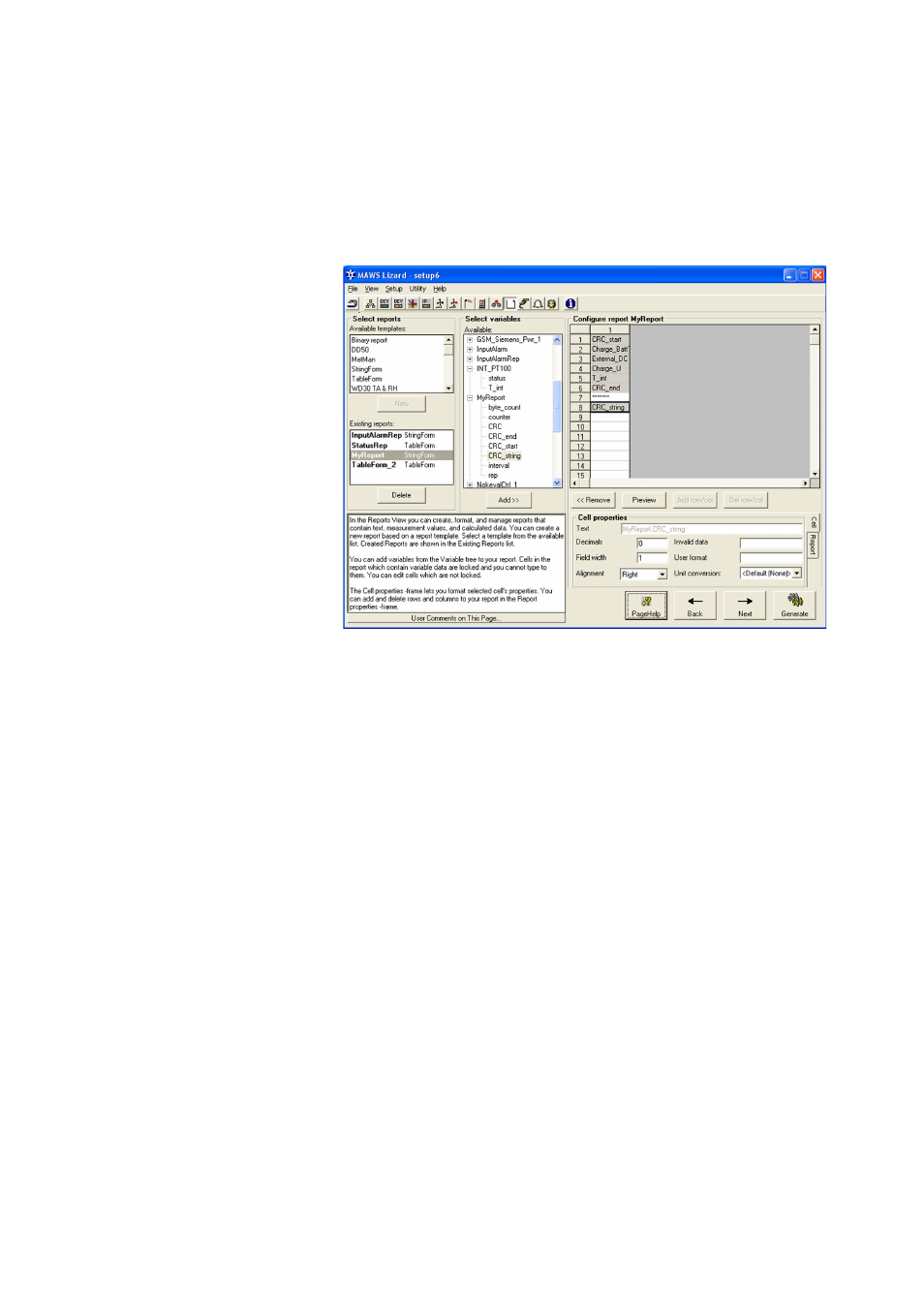

Figure 106
Reports View: Adding CRC
2.
For the CRC calculation method, see the Report properties frame.
3.
Select the Report tab on the right and click the Checksum button.
The Checksum settings window opens as shown in
.
The variables from rows 2 to 5 are taken into account when
calculating the CRC.
The CRC is placed after the ******* string.
