Figure 52 – Vaisala Hydromet Data Collection Platform User Manual
Page 114
User’s Guide ______________________________________________________________________
112 __________________________________________________________________M210785EN-E
You can ignore some of the statuses by leaving the field empty.
4.
Select the data item to which the status conversion applies by
selecting a source and a variable in the Value input frame; see
. If you want the same conversion to apply
to other data items as well, click the Add button to add the rest of
the data items.
0711-070

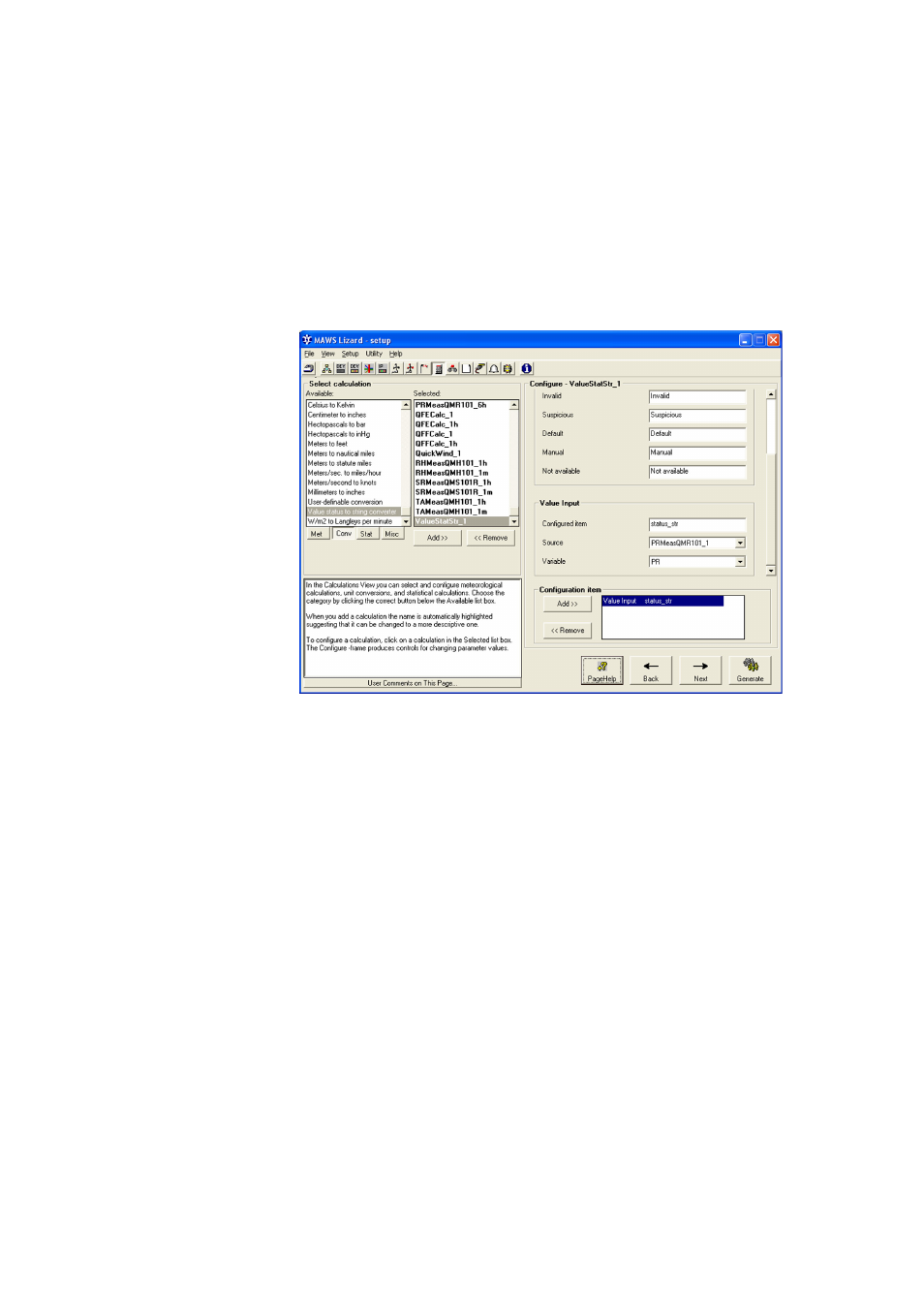

Figure 52
Calculations View: Configuring Status Strings
(2/2)
If another status conversion with different status strings is required,
repeat the steps above.
To add the previous status string in a report, proceed as follows:
1.
Create a report.
2.
When the status string is needed, select status_str from the
Available list as shown in
. The status_str
field is created for a report.
