Connecting a device to receive speed pulses
To connect the lightbar to a spray controller:
Attach the R1 end of the radar cable to the P5 connector of the all−port cable (P/N 64045). 1.
Attach the P2 end of the radar cable to the device requiring radar speed input. 2.
If required, use a fly−lead to connect a spray switch to the P3 connector of the radar cable. 3.
Configuring the lightbar

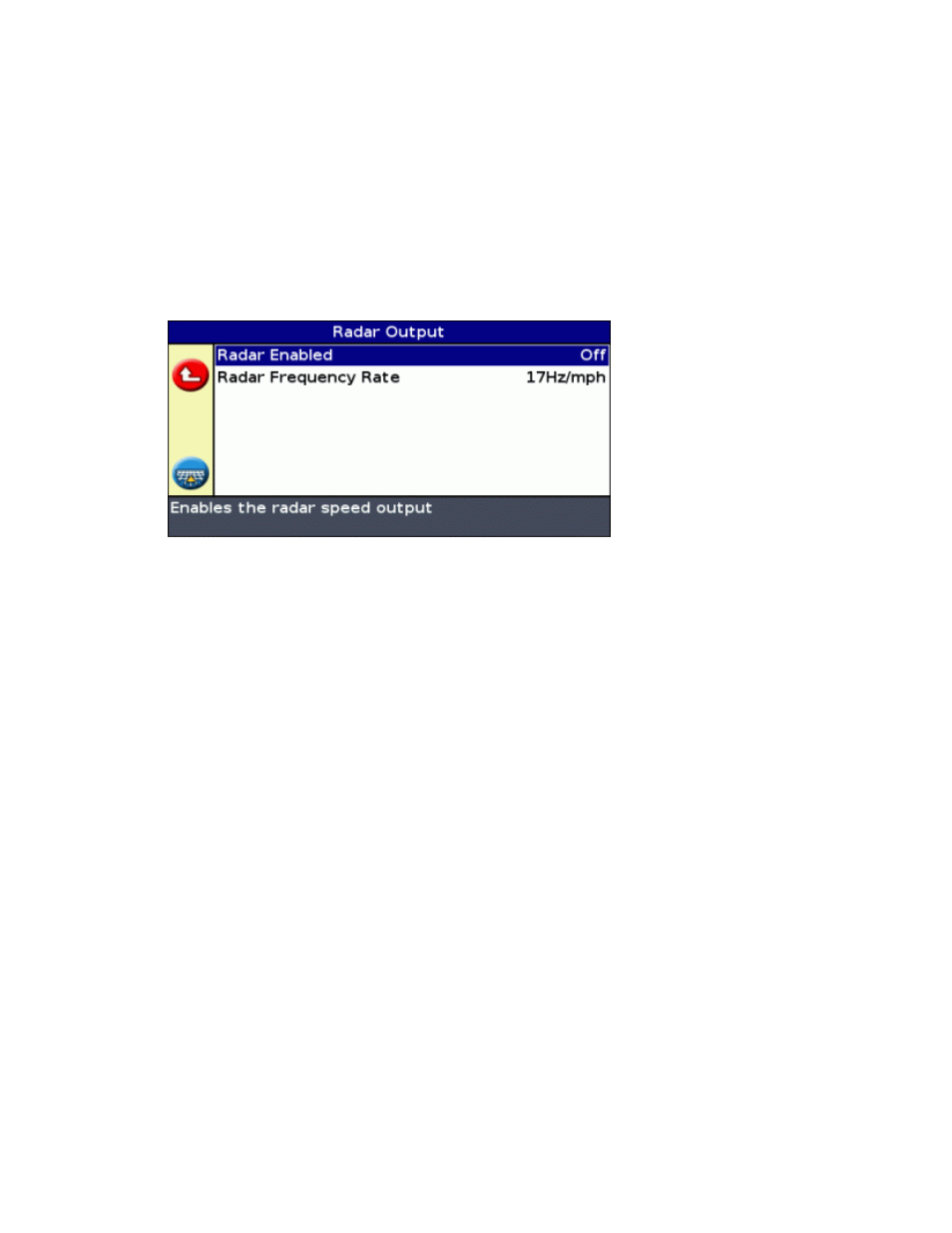

Select Configuration / System / Radar Output:
.
1.
Configure the radar settings: 2.
Radar Enabled must be On.
♦
Radar Frequency Rate is the output rate expected by your device. Most Raven and Midtech
controllers use 58.94 Hz/mph (34.80 Hz/kph).
♦
For more information, refer to the documentation included with your radar cable.
Setting up a controller
On a Raven controller:
Make sure that the speed input is set to Speed Radar SP2. 1.
You usually choose the speed input setting when you first calibrate the unit; the choices given in most
Raven controllers are SP1 or SP2. SP2 is the correct setting for Speed Radar inputs. For more information
on how to check this setting, refer to your variable rate controller instruction manual.
Make sure that the speed calibration value is set correctly. For the most accurate results, recalibrate the
unit to match the lightbar output. 2.
For information on how to calibrate the unit, refer to the controller instruction manual.
Note: To check the accuracy of your current settings, compare the speed value indicated on the lightbar guidance
system with that on the spray controller.
On a Midtech controller:
Make sure that the speed calibration value is set correctly. For the most accurate results, recalibrate the
unit to match the lightbar guidance system output. 1.
54
