Using FreeForm curves in fields with variable terrain
Start and stop recording guidance at the ends of each pass. If there are 2 guidance lines in close proximity, use the
Next AB icon
to snap to the correct line.
At any point, you can add a straight AB Line for repeated straight line guidance. Use the icon to switch
between straight AB and FreeForm curve guidance lines.
Getting Guidance
The icon enables you to create a guidance line and begin driving in the field.
Depending on which pattern you select, follow these steps:
Enter the vehicle information. 1.
Select a pattern. 2.
Enter any additional pattern information (if necessary): 3.
Set the A+ heading (for A+ patterns only)
♦
Define the number of headland circuits (for headlands only)
♦
Define the pattern on the field. 4.
Step 1. Entering the vehicle information
From the main guidance screen, select and then press : 1.

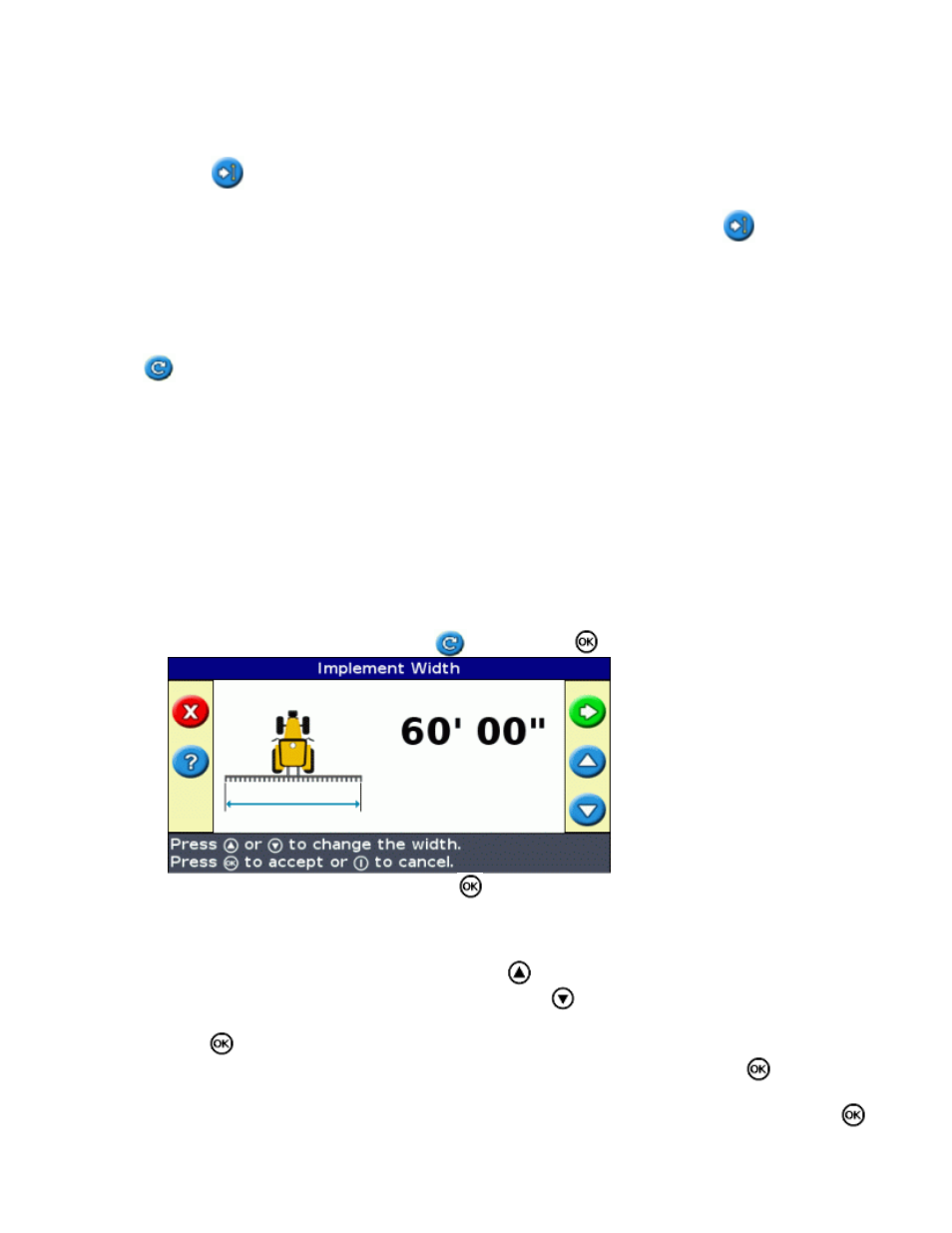

Enter the implement width and then press . The Overlap/Skip screen appears. 2.
Do one of the following: 3.
If you want your passes to meet so you have full coverage without overlaps, use the default
setting.
♦
If you want your passes to overlap, press to enter an overlap distance.
♦
If you want a space between your passes, press to enter a skip distance.
♦
Press . The Forward/Back Offset screen appears. 4.
Enter the distance that the implement is offset back from the antenna and then press . The Left/Right
Offset screen appears.
5.
Enter the distance that the implement is offset to the left or the right of the antenna and then press . 6.
