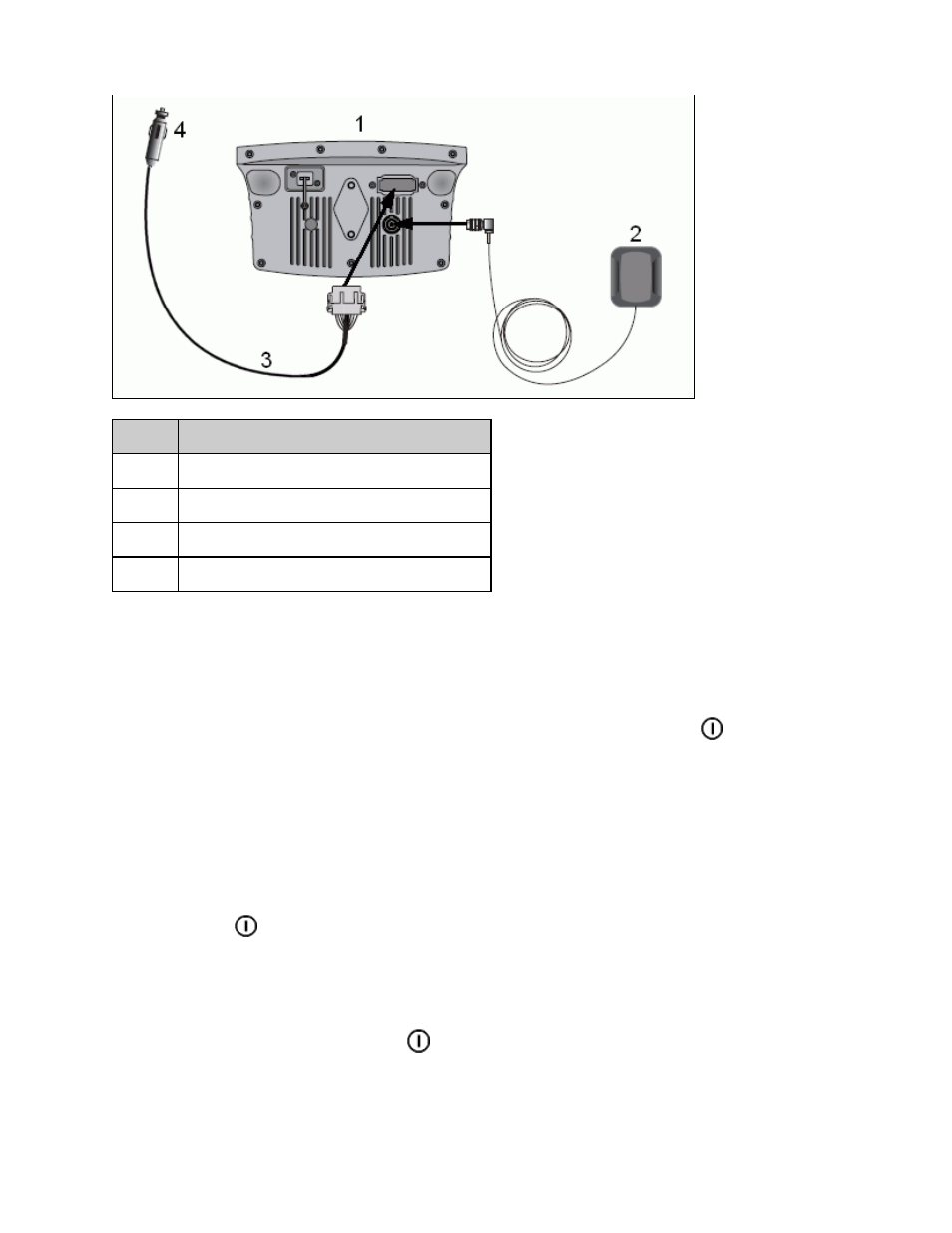

ITEM DESCRIPTION
1 EZ−Guide 250 lightbar
2 Patch antenna
3 12−pin Deutsch power cable (P/N 65168)
4 To power (cigarette lighter)
Connect the power/data cable (P/N 65168) to the power port on the back of the lightbar. 1.
Connect the other end of the power/data cable to the vehicle cigarette lighter. 2.
Connect the antenna cable to the antenna port. 3.
Caution: If you are using the EZ−Seer system, do not disconnect or connect any cables to the system while the
lightbar is running. To connect or disconnect cables, first turn off the system with the
button.
Step 3: Turning on the Lightbar
To turn on the lightbar:
Plug the power cable into the cigarette lighter. If the cigarette lighter is wired through the vehicle ignition
using the optional power cable, insert the key and then turn on the vehicle ignition. 1.
Press the button (the top button to the left of the screen). The lightbar turns on. 2.
Turning off the lightbar
To turn off the lightbar, press and hold the button.
The lightbar will begin to turn off (this takes about 5 seconds). To stop the shutdown sequence, release the button
before the lightbar turns off.
