77
9 Connecting the Monitor, Keyboard,
Mouse, and Power Supplies
Introduction
Use the procedures in this chapter to connect the peripheral devices to the
HP Netserver LP 2000r, and install or remove the power supply module.
Connecting the Monitor, Keyboard and Mouse
1. Connect the monitor, keyboard, and mouse to the HP Netserver LP 2000r
using the connections provided on the rear of the chassis. See Figure 9-1.
The two USB connectors are reserved for peripherals other than the
keyboard or mouse.
If you have a console switch box, refer to the switch box user guide for
instructions on connecting the keyboard, mouse, and monitor.
2. If a LAN cable is provided, you may connect it now or wait until you have
verified the HP Netserver’s operation.
Power Supply
Bay #1
Power
Supply
LED
AC for PS Bay #1
AC for PS Bay #2
Power Supply
Bay #2
Serial B
Keyboard
Serial A/
Management
Lan A/Management
Parallel
External SCSI Port
PCI Slots (3)
Slot 3
Slot 2
Slot 1
Lan B
M o u s e
USB (2)
Video

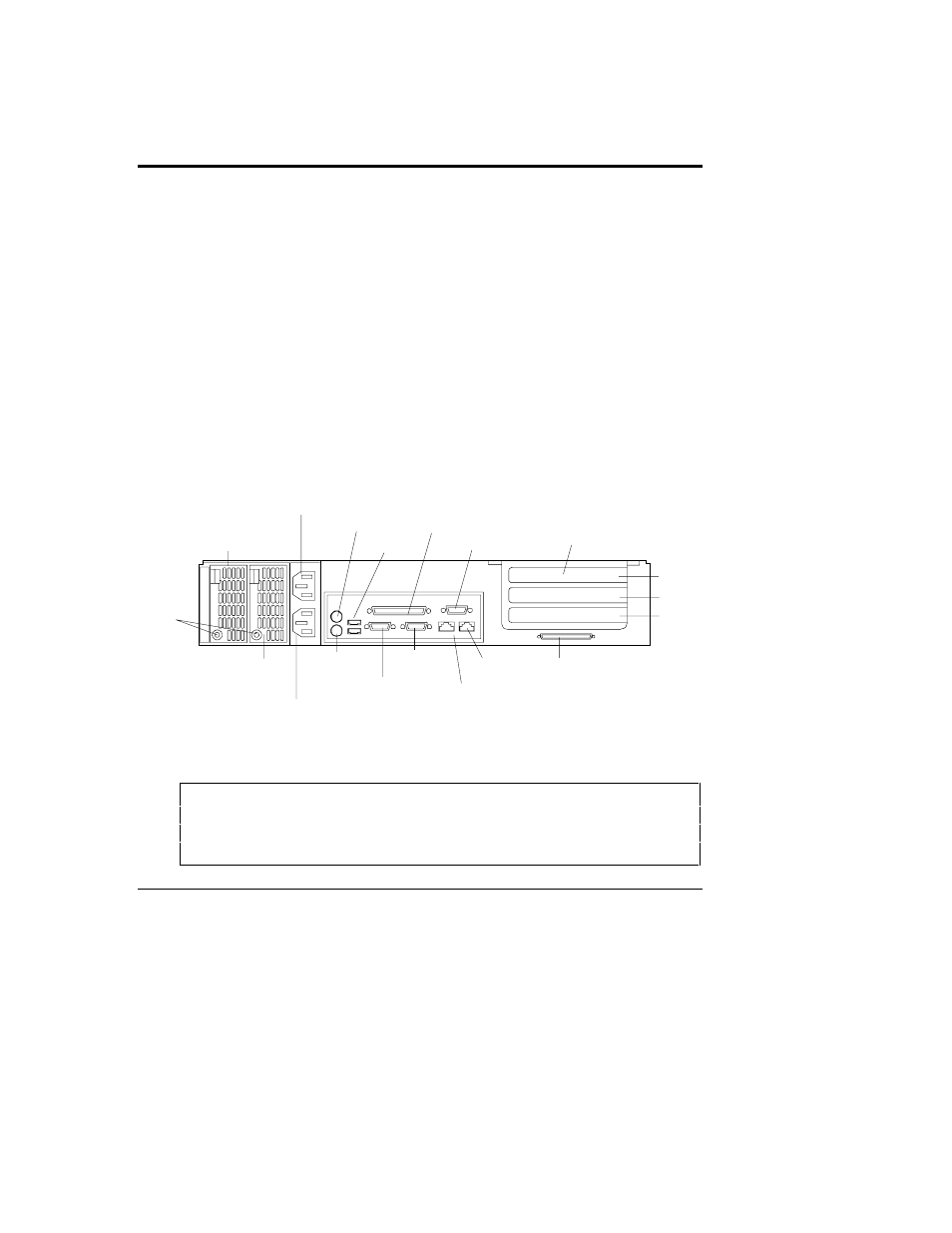

Figure 9-1. Rear Panel Ports
CAUTION The Keyboard and Mouse PS/2 ports cannot be used
interchangeably. Plugging the keyboard into the Mouse port
(or the mouse into the Keyboard port) produces an error
message and causes the system to stop the boot process.
