Appendix A Specifications
122
Table A-5. Video Display Modes
Resolution
Max. Refresh
Rate @ 256
Colors Max. Refresh
Rate @ 65K
Colors Max. Refresh
Rate @ 16.7M
Colors
640x480 200 Hz 200 Hz 200 Hz
800x600 200 Hz 200 Hz 160 Hz
1024x768 150 Hz 150 Hz 120 Hz
1152x864 120 Hz 120 Hz 85 Hz
1280x1024 100 Hz 100 Hz 85 Hz
1600x1200 76 Hz 76 Hz Not available
System Board Layout
IDE-1
IDE-2
SCSI A SCSI B
FDD +
Power
Integrated
Remote
Assistant
Board
(Daughter
Board)
Power
Connector
LAN B
LAN A/
MGMT
Parallel (T)
Video (B) Serial A/MGMT (B)
USB (2)
Mouse (T)
Keyboard (B)
0
1
2
3
Config
Switch
DIMM
Slots
Processor 1
Processor 2
PCI Slot
Battery

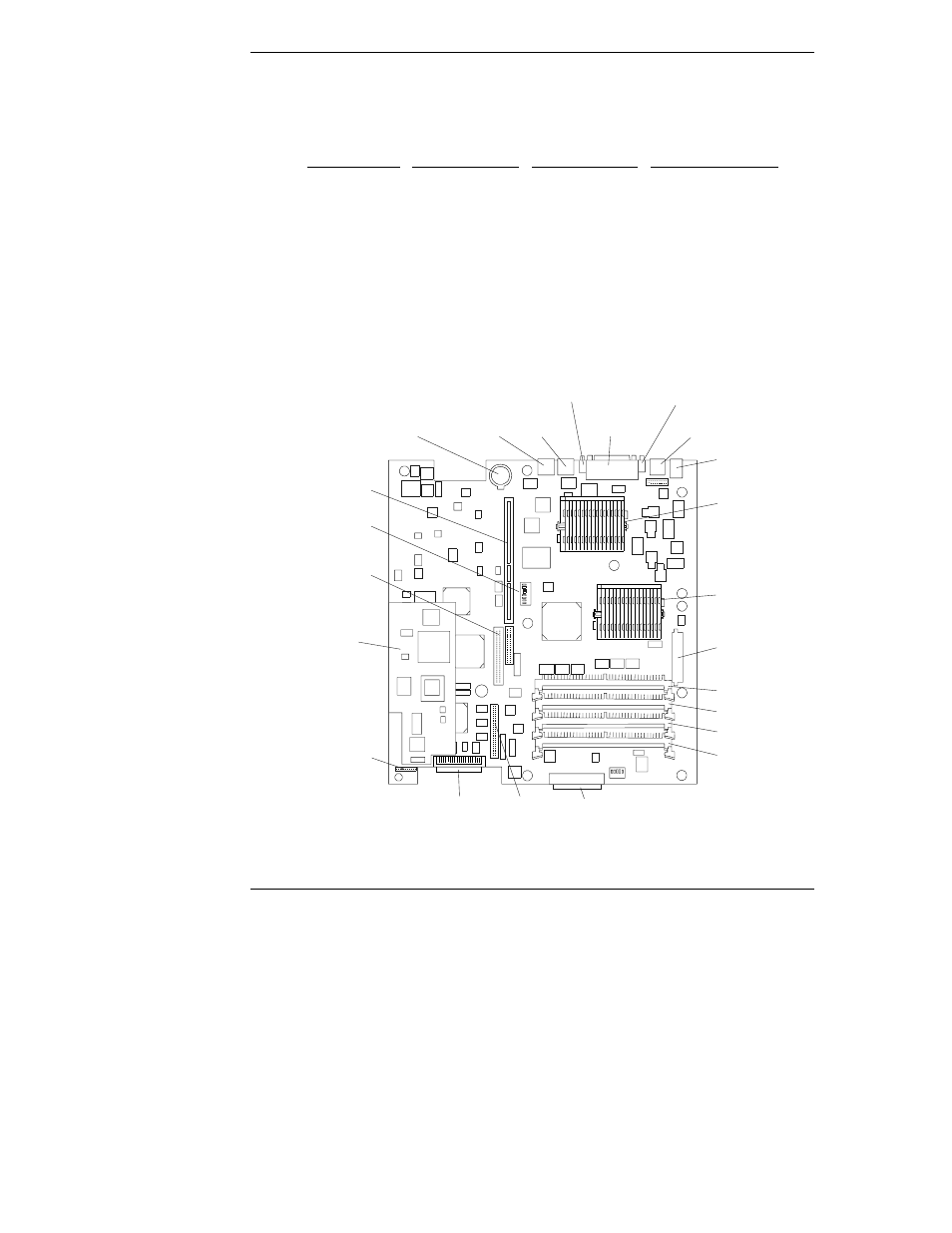

Figure A-1. System Board Components and Connectors
