Chapter 3 Installing Mass Storage Devices
20
Tab
Tab

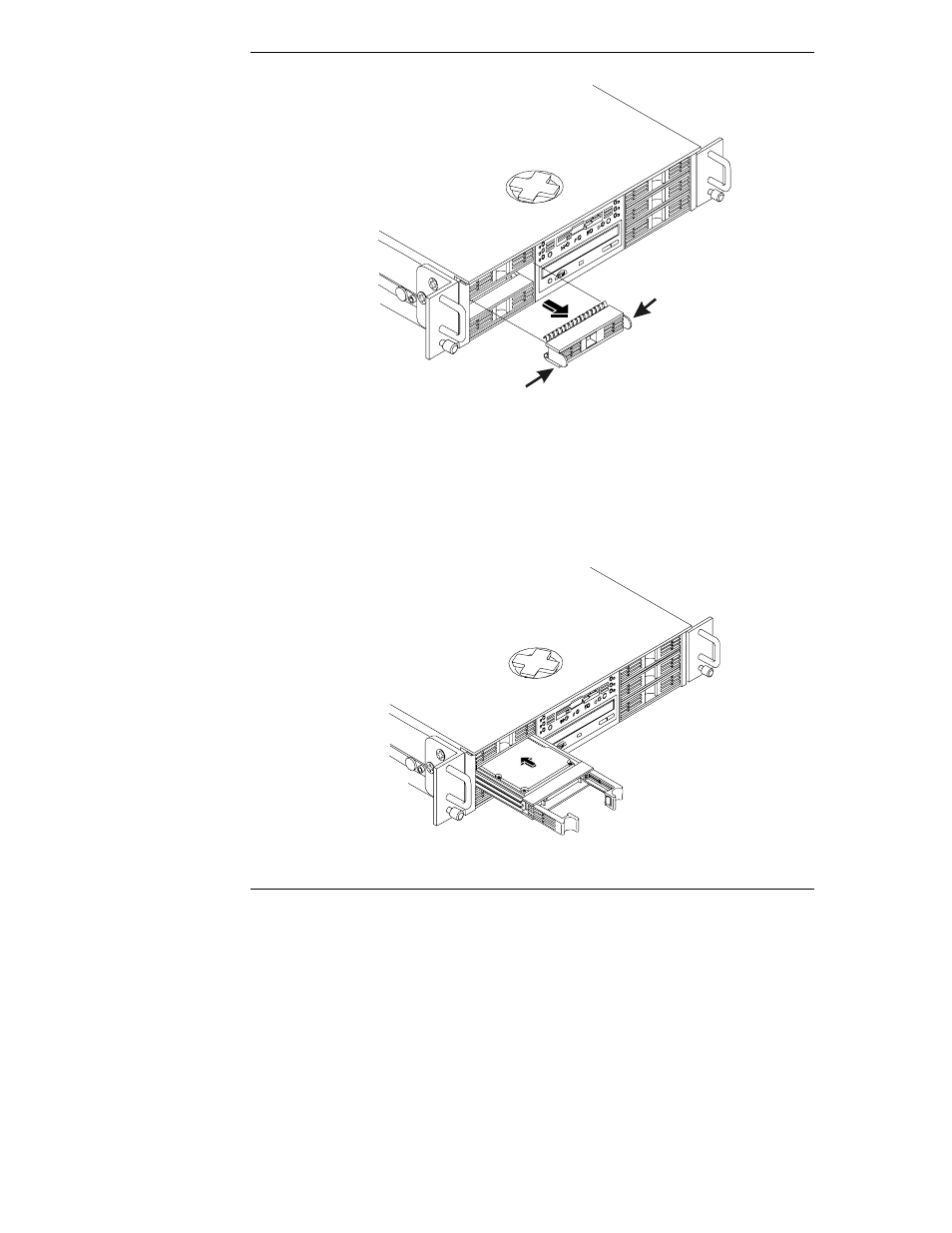

Figure 3-2. Removing a Filler Panel
2. Remove the SCSI drive from its protective packaging and open the ejector
arms, as shown in Figure 3-3.
3. Slide the SCSI drive into the slot until you feel resistance. Then press in
firmly until the drive is fully seated into the connector on the SCSI back
plane. See Figure 3-3.
Figure 3-3. Inserting a SCSI Drive
